Thread: Model 70 bolt shroud/saftey disassembly

Ok my model 70 is all in parts and ready to be cerakoted, I’ve been told by the man I need to take apart the bolt saftey/shroud end of my bolt if I want this cerakoted. This is where my skill level ends, I’ve searched youtube top to bottom and still can’t find a video on this. Can anybody help or is it time for a gunsmith? I do want this part cerakoted as it will look dogshit if there is a difference when all finished and the blueing is not in best condition either..
Obviously the bolt body is removed already I am needing info on the saftey area of the bolt with all the scary looking little roll pins and easy to loose parts I would imagine. Advice welcome thanks

try this
https://www.24hourcampfire.com/ubbth...lt-disassembly

Close bolt.apply safety half way. Click the wee latch on side/rear of bolt and unscrew firing pin,spring etc. So guts is out of bolt.

Yep, I’ve done both of these things, so the bolt is apart and the spring removed, but i can’t find any info on taking apart the saftey and removing the firing pin from the shroud. Thanks for the help but still not the answers I need, strange there is nothing on the all mighty YouTube

Originally Posted by TroyMclean

Yep, I’ve done both of these things, so the bolt is apart and the spring removed, but i can’t find any info on taking apart the saftey and removing the firing pin from the shroud. Thanks for the help but still not the answers I need, strange there is nothing on the all mighty YouTube

If you push down on the shroud to expose the rear of the firing pin (sear catch), can you half turn this sear catch to remove?

Originally Posted by FRST

If you push down on the shroud to expose the rear of the firing pin (sear catch), can you half turn this sear catch to remove?

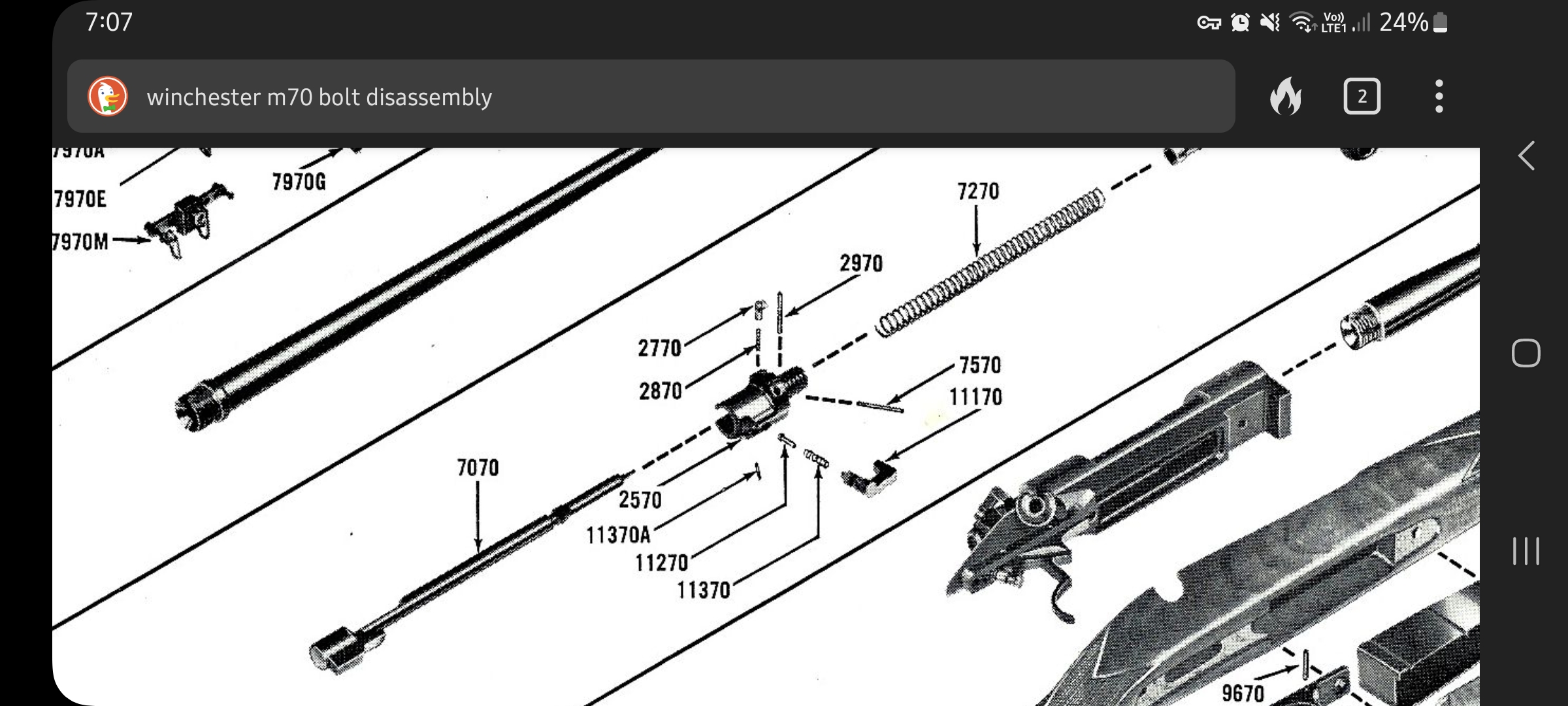

Looks like you might have to drift some pins out... I'll have a look at mine today. It's a Pre64, so may not be quite the same.

I had the local gunshop cerakote my M70 featherweight. Yes there are pins to punch out for complete bolt disassembly
