Thread: portable bench

  1. #16
    LOVE RED MIST deye223's Avatar
    Join Date
    May 2014
    Location
    Aussie vic
    Posts
    223
    Quote Originally Posted by Shooter View Post
    That's a nice setup there @deye223! I have one of those benches sitting in the garage... It is well covered in paint drips but that will just give be an excuse to get the paint cans out. Very simple and super light and portable.

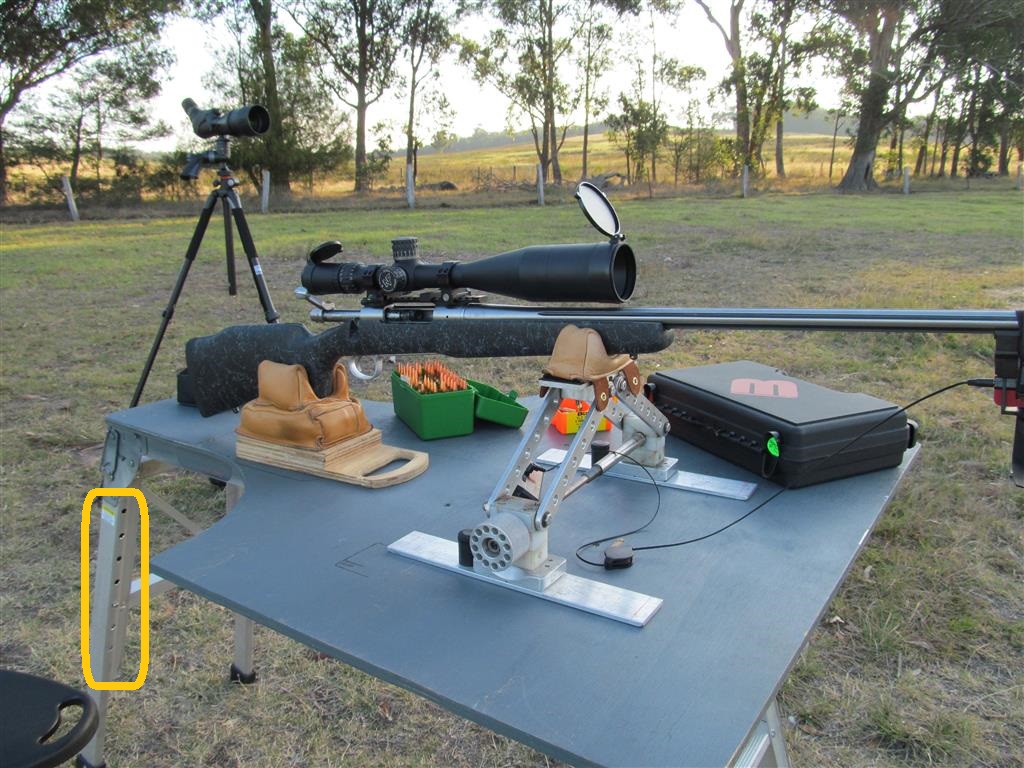

    shooter if you use one don't forget to drill some more holes for hilly and uneven ground

    I have circled them in the pic and yes I have dressed up the SENDERO a bit ....

    I just put one extra in between the originals some put two and now think that's the better

    option


    cheers Darren

    Name:  IMG_1945 (Medium).JPG
Views: 377
Size:  284.8 KB

  2. #17
    Baz
    Baz is offline
    Long-ranger Baz's Avatar
    Join Date
    Jan 2012
    Location
    Waikato
    Posts
    284

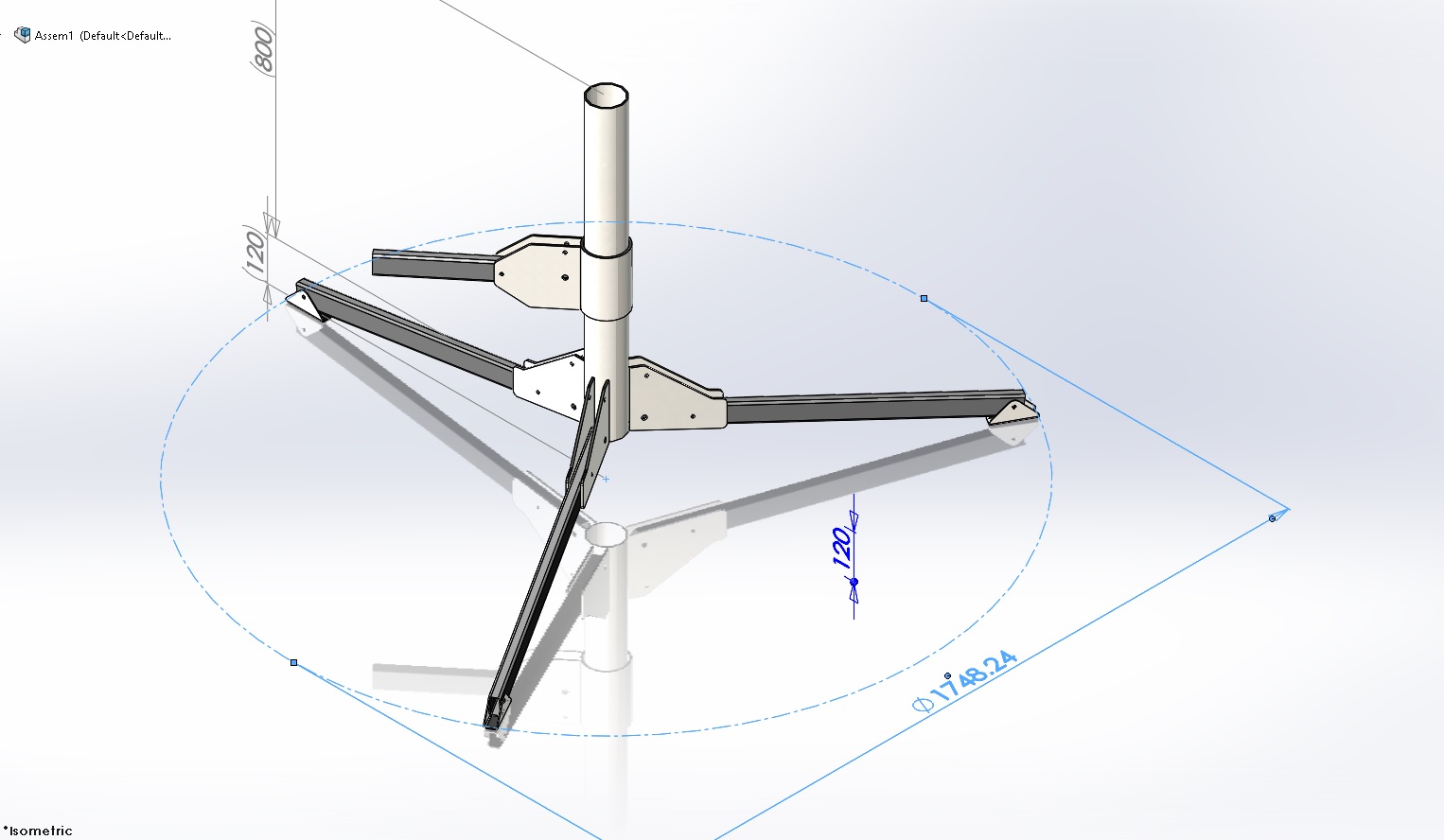

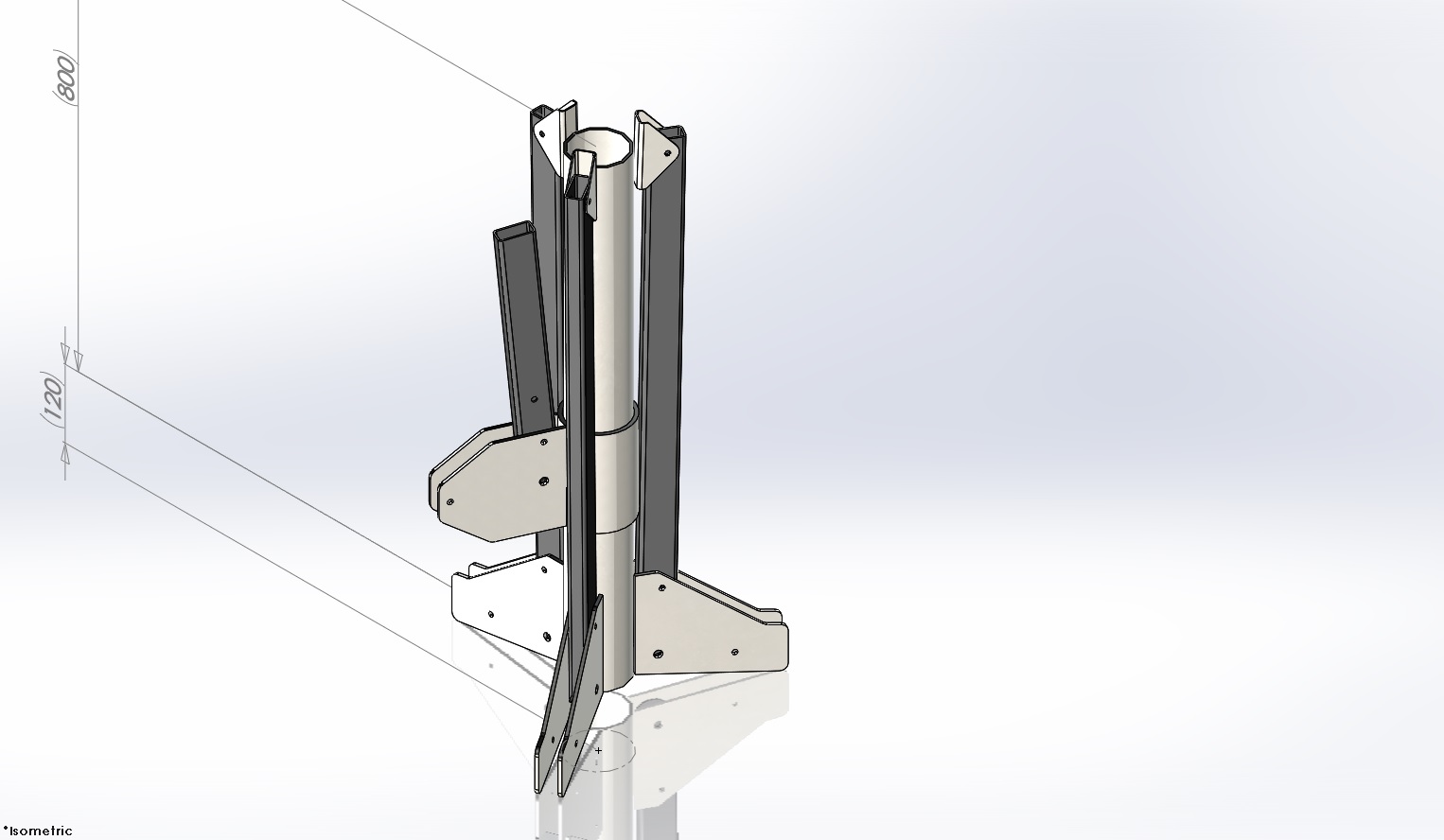

    A portable design I am working on.

    The 2 pipes are off the shelf steel. NB 80 medium wall for the main upright, OD 88.9mm, sleeve is NB 90 40S with OD 101.6mm and 5.74mm wall giving 0.61mm clearance.

    Seat will swivel on end of mount and will be pinned up in transport. Locking collar to go in made out of the NB 90

    Name:  Bench 1.jpg
Views: 318
Size:  133.2 KBName:  Bench 2.jpg
Views: 289
Size:  103.2 KB
    Beaker and WallyR like this.
