Thread: Project Howa mini carbon chassis

  1. #16
    Member
    Join Date
    Jun 2015
    Location
    christchurch
    Posts
    17,973
    closed cell "polystyrene" is the go, it can be shaped in multiple ways, sanded etc then after moulding your carbon fibre over it you pour in the petrol and watch the styrene turn to gloop and pour out.
    of course no use for making multiple stocks but for a one off its quick and easy

  2. #17
    Member
    Join Date
    Mar 2018
    Location
    Turangi
    Posts
    1,373
    ^^^Shit that's a good idea. F*ck ya for adding another project to my list when we are unleashed from the hospital

  3. #18
    Member
    Join Date
    Apr 2019
    Location
    Rotorua
    Posts
    646
    Might as well leave the polystyrene in there for what it weighs. Only other issue with that method is that it will grow slightly compared to your mold. Also you can't add any textured or checkering surface to the outside surface

  4. #19
    Member
    Join Date
    Mar 2018
    Location
    Turangi
    Posts
    1,373
    Texture doesn't bother me but, grow slightly compared to mold?

    I'm probably just a dumbass but I don't compute. (Be gentle, I haven't had a lot of sleep for last 6 weeks)

  5. #20
    Member
    Join Date
    Apr 2019
    Location
    Rotorua
    Posts
    646
    If you use a fibreglass mold your outside dimensions are set. Ie if you make your mold by copying a factory stock the end product will be exactly the same. If you carbon wrap a plug it will end up bigger

  6. #21
    Member
    Join Date
    Mar 2018
    Location
    Turangi
    Posts
    1,373
    Only reasonably slightly on the external dimensions though right?

    I can live with a couple mm oversized for the loss in weigh.

  7. #22
    Member
    Join Date
    Apr 2019
    Location
    Rotorua
    Posts
    646
    Name:  20200827_080218.jpg
Views: 434
Size:  3.42 MB

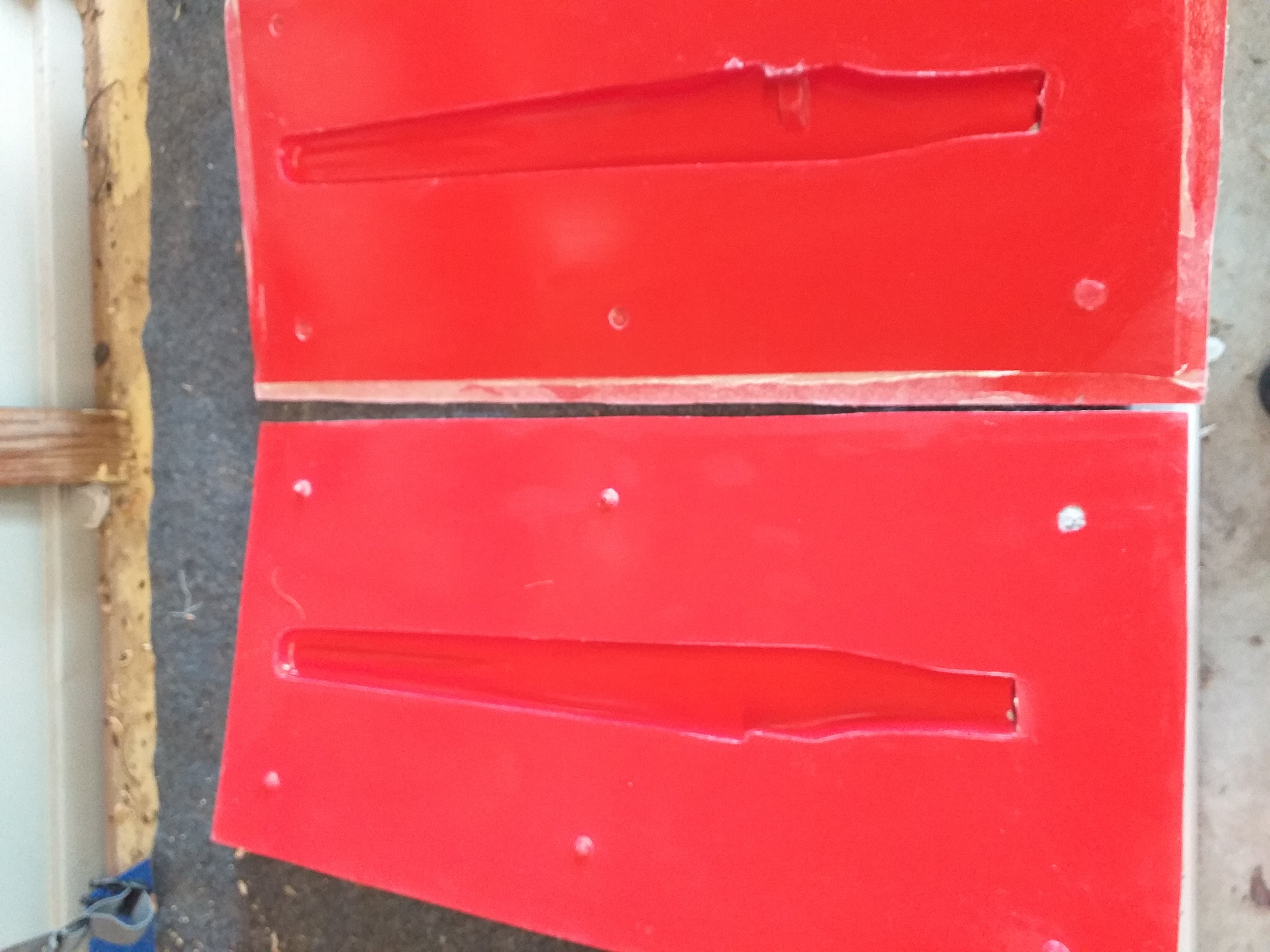

    First carbon out of the mould.
    Name:  20200902_171540.jpg
Views: 467
Size:  3.50 MB

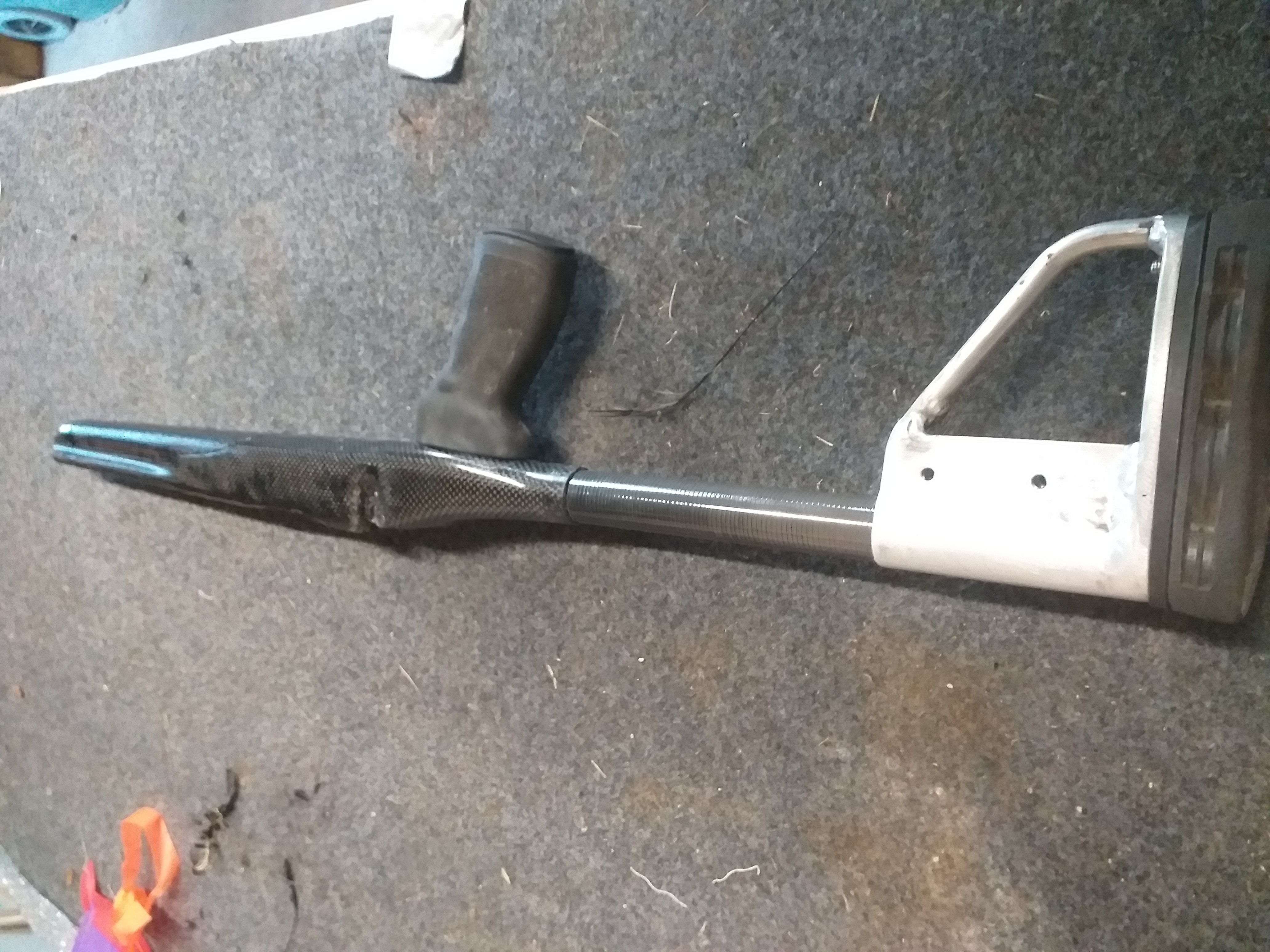

    But of a stuff up with the epoxy but happy with the shape
    hillclima likes this.

  8. #23
    Member
    Join Date
    Nov 2018
    Location
    Ashburton
    Posts
    862
    @Remmodel7 looking good!
    What's the weight of this first prototype?
    Any thought towards making a mould of the Butt Stock and doing that in CF as well?

  9. #24
    Member
    Join Date
    Apr 2019
    Location
    Rotorua
    Posts
    646
    Total weight as it is is 550 but no bedding yet.
    Body and tube only weighs 280.
    All the weight in the butt is in the air cell recoil pad. Think I will ditch it for something lighter.
    Haven't looked at a carbon but yet. Could try make one at some point
    kiwi-adam likes this.

  10. #25
    Member
    Join Date
    Apr 2019
    Location
    Rotorua
    Posts
    646
    I'm aiming for the end product to be around the 500g mark
    hillclima, kiwi-adam and Joe_90 like this.

  11. #26
    Member SixtyTen's Avatar
    Join Date
    Dec 2015
    Location
    Auckland
    Posts
    524
    Looking good. How did you go about getting your centerline overlap to come out nice?

  12. #27
    Member Sh00ter's Avatar
    Join Date
    Apr 2017
    Location
    Pahiatua
    Posts
    608
    Very cool mate, I'm keen to see the completed stock.
    Hit the hills, live the BushLife!

    https://bushlifenz.com

  13. #28
    Member
    Join Date
    Apr 2019
    Location
    Rotorua
    Posts
    646
    Quote Originally Posted by SixtyTen View Post
    Looking good. How did you go about getting your centerline overlap to come out nice?
    @SixtyTen the two mould halves have indexing studs from when I moulded around the plug. When the halves are joined together they line up petty good.

  14. #29
    Member
    Join Date
    Apr 2019
    Location
    Rotorua
    Posts
    646
    Name:  20201102_204240.jpg
Views: 304
Size:  3.60 MB
    Name:  20201102_204256.jpg
Views: 296
Size:  3.85 MB

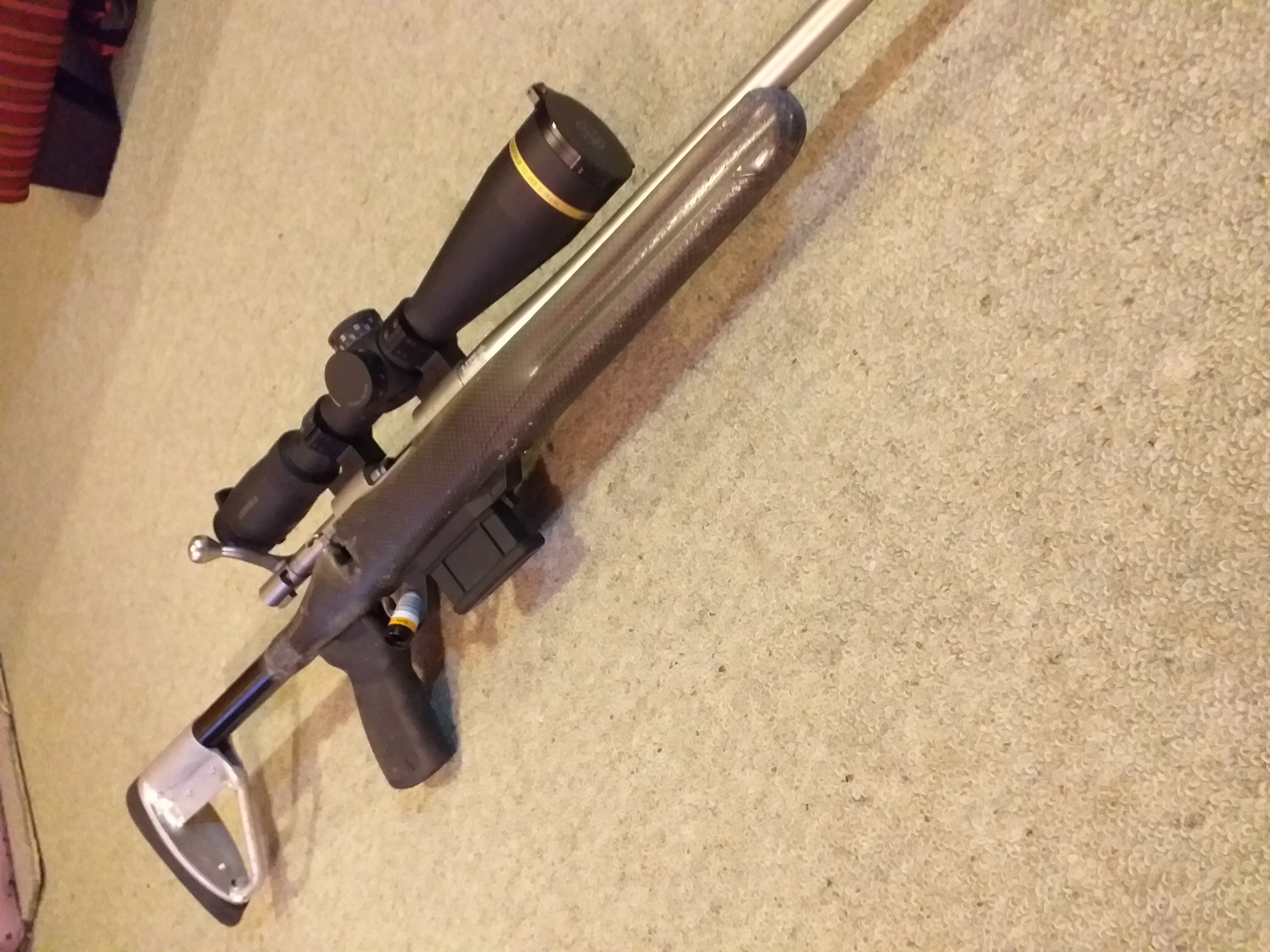

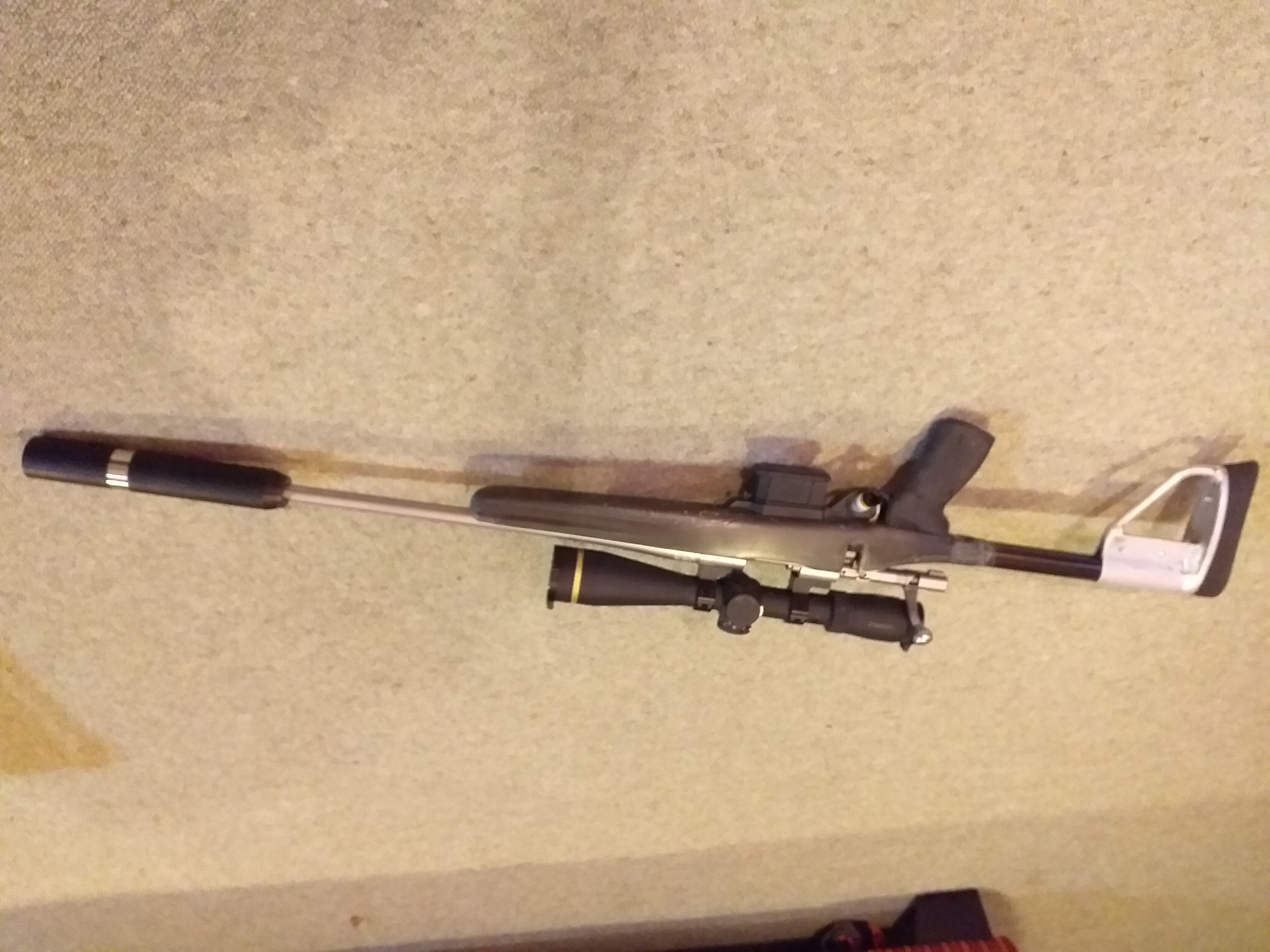

    Finally managed to get a complete stock together bit of a learning curve with the carbon fibre and the mk2 will be a lot tidier. Didn't really try to finish this one well. Just wanted to make sure that it all worked.
    piwakawaka and Joe_90 like this.

  15. #30
    Member
    Join Date
    Apr 2019
    Location
    Rotorua
    Posts
    646
    Also can anyone recommended a result light weight recoil pad? The stock with pistol grip weighs 501g. However the butt assembly weighs 260g. I'm thinking of fully redesigning the butt section. If anyone has any ideas or stocks that might work let me know
