Thread: Self isolation gun projects

  1. #181
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    830
    Now just moving right along there I have converted my long suffering lathe to a rifling machine. Hand cutting six groves .010" thou deep to give at bore size of .470" and a rifling twist of 1-48", the standed for muzzle loaders. Here you can see my improved set up, well sort of. There`s no such thing as" Can't do it".

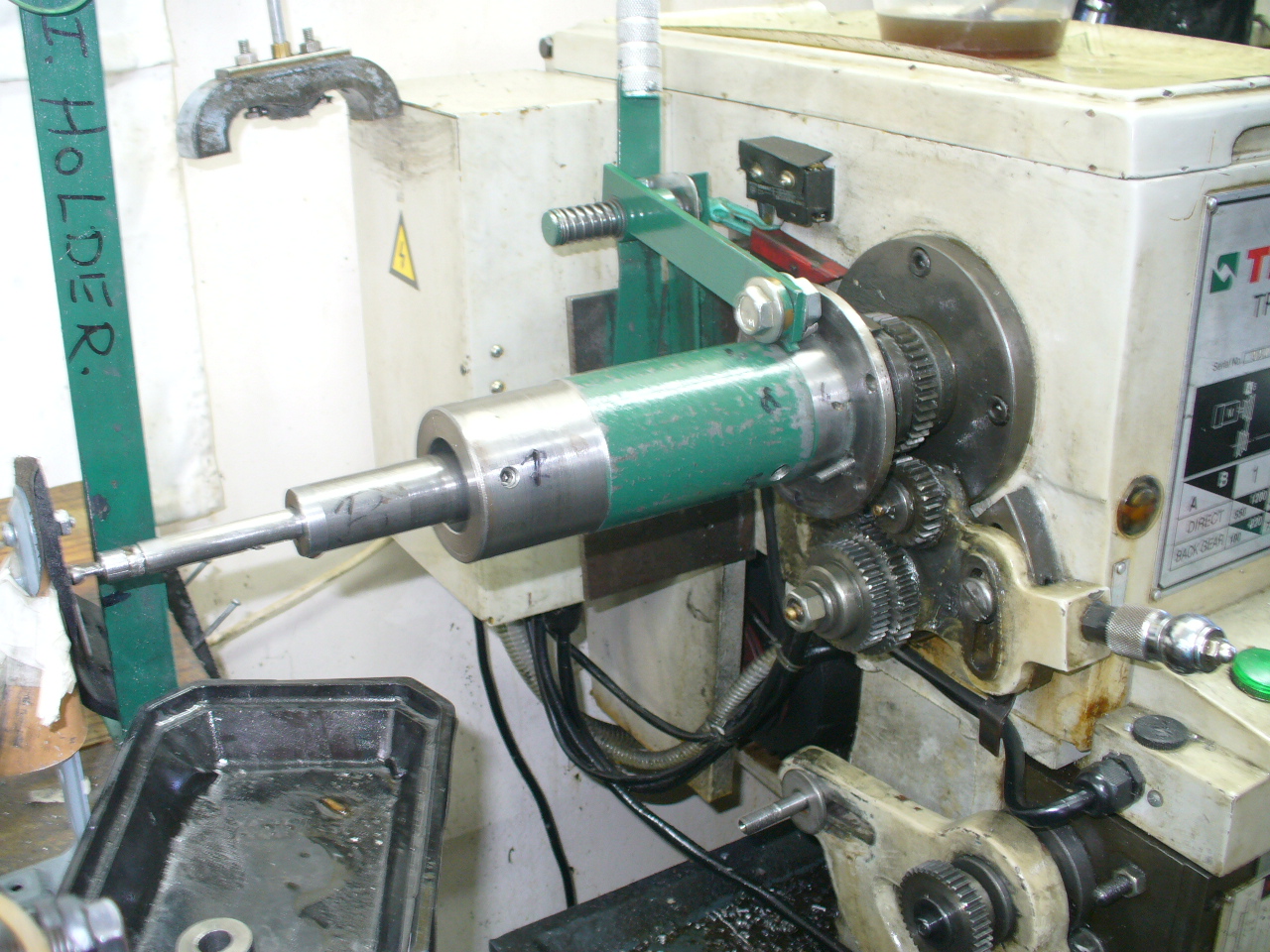

    Name:  P1030333.JPG
Views: 525
Size:  615.0 KB, Rifling head ready to go, rifling register pin at #1.

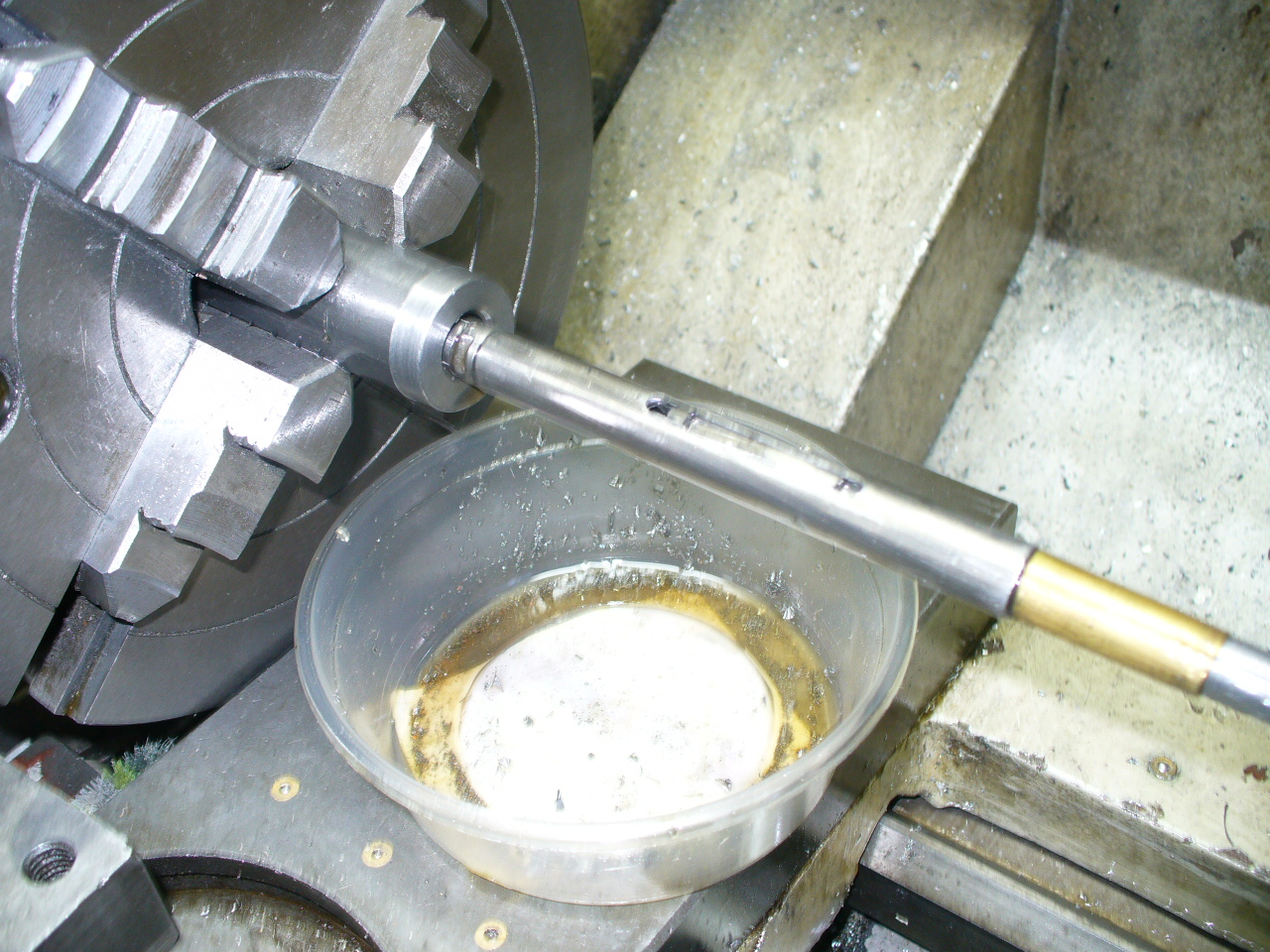

    Name:  P1030335.JPG
Views: 496
Size:  603.7 KB, Cutter head pulled through .
    Name:  P1030334.JPG
Views: 502

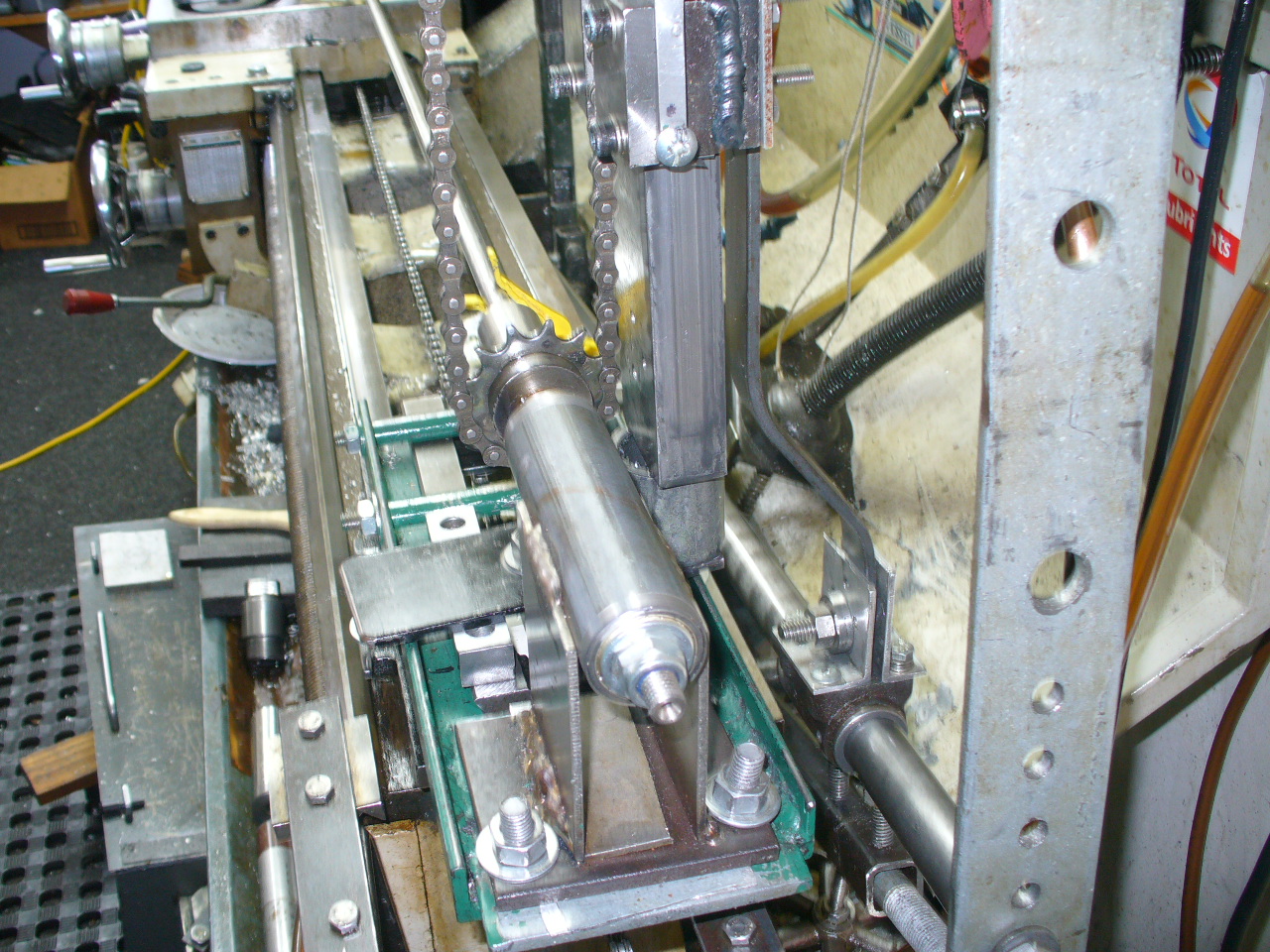

Size:  582.9 KB, The sine bar that drives the rifling head at the back of the lathe, low down for slow twist.
    Beaker, gundoc and Moa Hunter like this.

  2. #182
    Member
    Join Date
    Jan 2018
    Location
    kaiapoi
    Posts
    7,119
    Good luck.
    Turning there was a gunsmith in the north island that had some a couple of years back.
    I wanted a 17 can for a possible wsm but he reckoned they weren't any good for that.
    I'll have to dig through the memory banks

  3. #183
    Member
    Join Date
    Jan 2018
    Location
    kaiapoi
    Posts
    7,119
    @akaroa1 had a dig through the emails and you are right.
    It was Dean Maisey but it was a 17 liner and the last one he had. He reckoned they weren't exported out of the US anymore.

  4. #184
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    2,263
    Quote Originally Posted by Finnwolf View Post
    Excellent work gundoc!!

    Watch when you mount the diff that you make an allowance for the fact that the center bolt of the rear springs won’t have the dif in the right location if you mount it in the traditional manner otherwise your dif will be too far to the rear. ( or front, it’s been a decade or two si ce I last looked a. Chev torque-tube drive line!)
    To get an idea have a look at the factory pivot point on the dif.

    And don’t cut the mounts off the original dif and weld them onto the new dif, they’re designed to operate with a torque-tube.
    The current original rear end is a torque tube but I am replacing it with a Chevy 10 bolt and an open driveshaft, a TH350 3-speed auto and the rebuilt '72 Chevy 250 inline 6. The entire original running gear from engine to wheels is coming out.
    csmiffy likes this.

  5. #185
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,195
    Quote Originally Posted by small_caliber View Post
    Where did you get the low wall takedown from??
    Is it a coil spring model??
    Contacts
    It's been a long search to find one

    All the 1885 takedowns are coil spring.

  6. #186
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,195
    Quote Originally Posted by small_caliber View Post
    Didn't realise all the takedowns were coil sprung.

    It took me quite a search to find a Lowall action myself.
    @small_caliber
    Here is an 1885 I did 2 winters ago from a bare low wall action only

    Name:  20190731_104957.jpg
Views: 370
Size:  892.6 KB

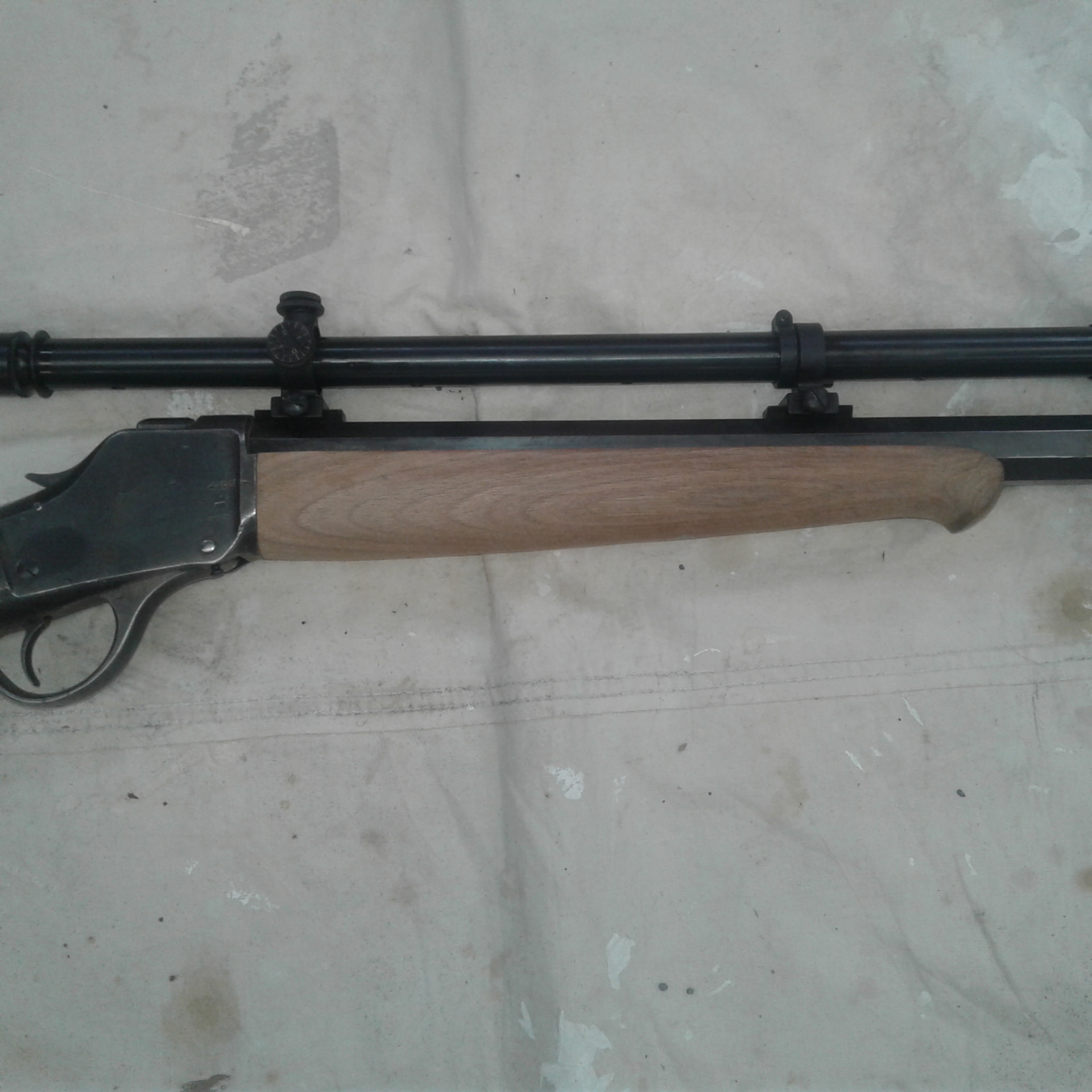

    And a high wall that I'm doing this winter from a total wreck.
    Still have to make new firing pin and re bore the original #3 Barrel
    Name:  20200205_123714.jpg
Views: 388
Size:  806.2 KB

  7. #187
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,195
    And this afternoon I burgled a 6x Malcolm scope off my Stevens 44 1/2
    Found some mounting blocks and drilled and taped them on to the 1885 takedown .25 RF
    Just wanted to see what it would be like with a decent vintage scope on board.
    It's sweet

    Now i just need to find a donor barrel to turn a liner out of and I can rip into that bore

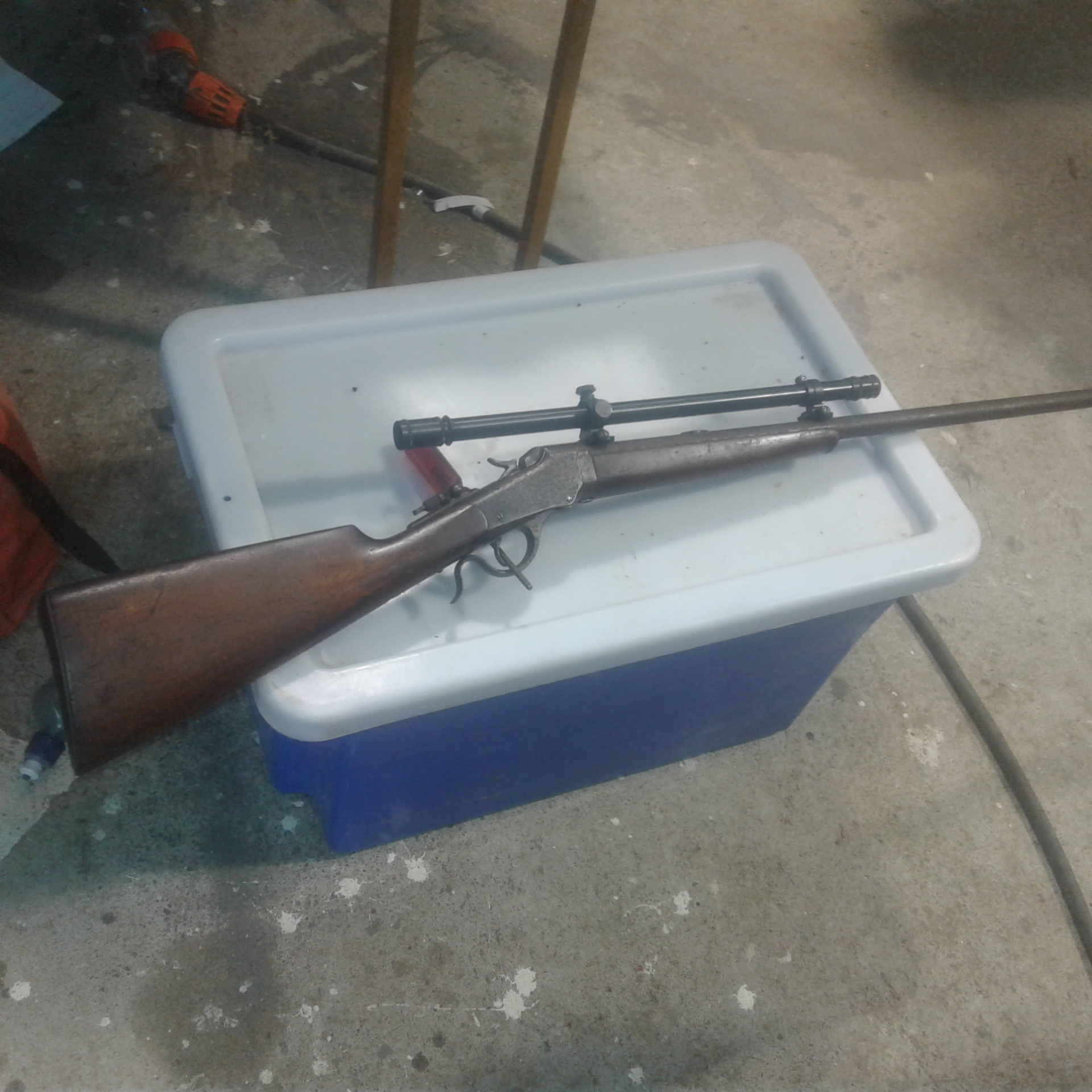

    Name:  20200413_164821.jpg
Views: 361
Size:  983.0 KB

  8. #188
    Member Lucky's Avatar
    Join Date
    Apr 2019
    Location
    Silverdale
    Posts
    1,201
    Shit there’s some clever buggers on here , some good kiwi inginuity going on , I’m reading The book on Burt Munro ( worlds fastest Indian ) at the moment , what he made in his shed was incredible especially considering the gear he had

  9. #189
    Member
    Join Date
    May 2018
    Location
    Stewart Island Rakiura
    Posts
    222
    By chance any one know of a Stephens favourite .22 butt stock?
    Got one at home that its previous owner tried to club a possum with bad results.

  10. #190
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,195
    Quote Originally Posted by ghosts View Post
    By chance any one know of a Stephens favourite .22 butt stock?
    Got one at home that its previous owner tried to club a possum with bad results.
    @ghosts give me a reminder after LEVEL 4 and I might be able to dig one up from outside my bubble

  11. #191
    Member
    Join Date
    May 2018
    Location
    Stewart Island Rakiura
    Posts
    222
    That's awesum @akaroa . Will do.

  12. #192
    Member
    Join Date
    Jan 2015
    Location
    Wellington
    Posts
    2,591

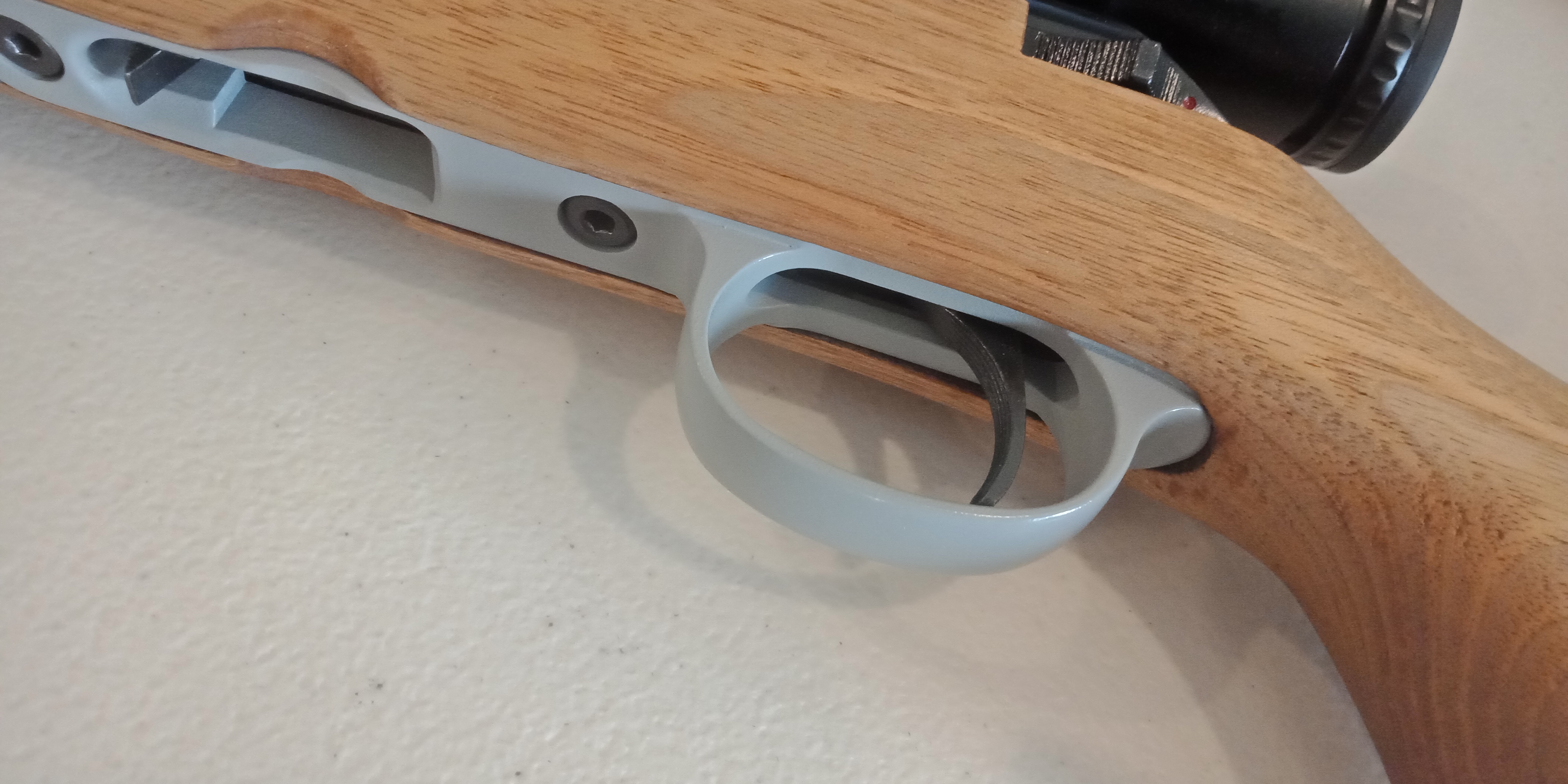

    Easter weekend seemed like a good time to redo the bottom metal on the EM-332... Here's a pic. Name:  IMG20200414161912.jpg
Views: 441
Size:  2.11 MB I don't have many toys to play with, so the EM is getting a fair amount of attention!

  13. #193
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,195
    I started a new butt stock for my Stevens 44 1/2
    Picked out a particularly gnarly piece of walnut

    Name:  20200414_093329.jpg
Views: 638
Size:  1.17 MB

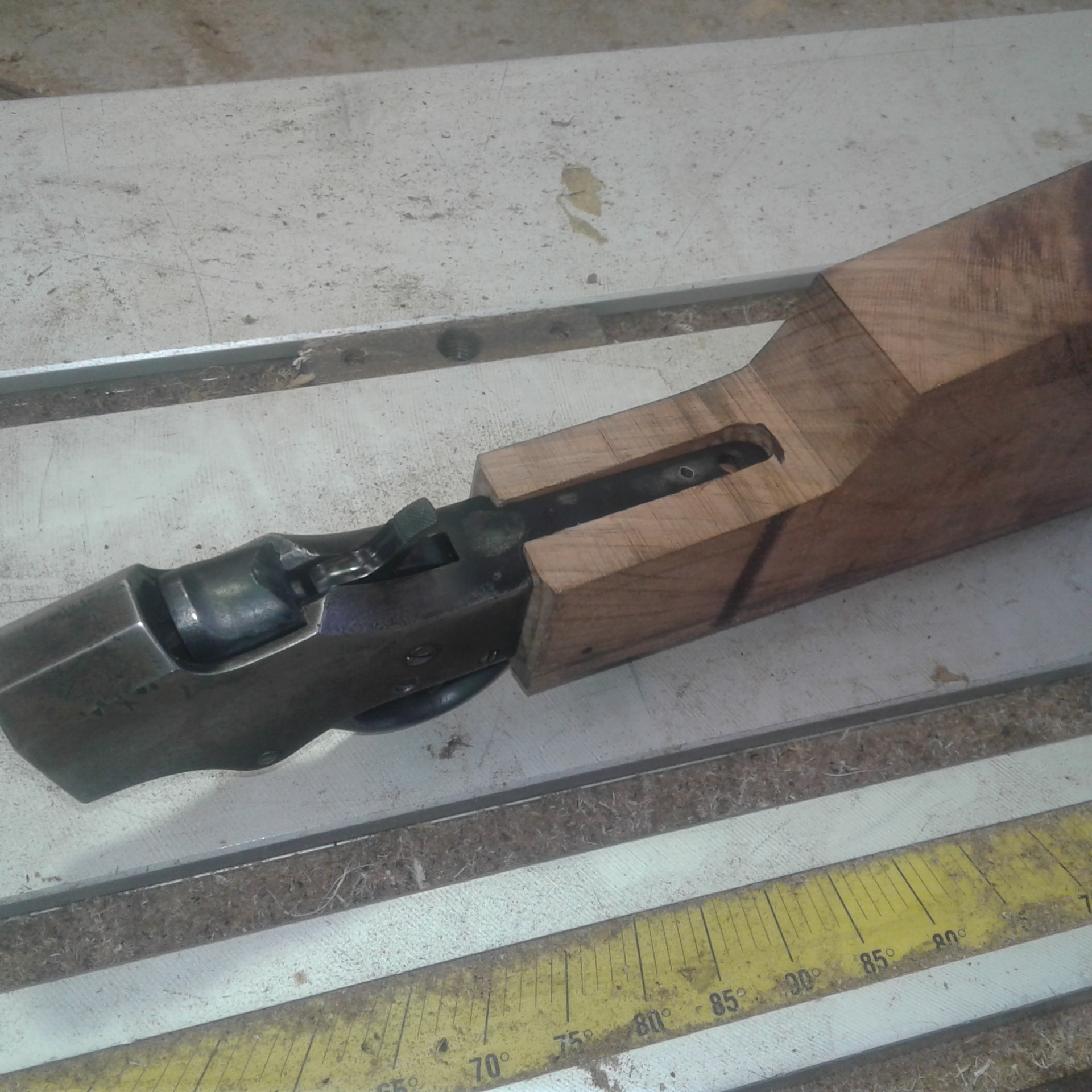

    Spent a few hours inletting the tangs and the fiddly but that goes inside the receiver shoulder
    Lots of smoke and fit and smoke and fit

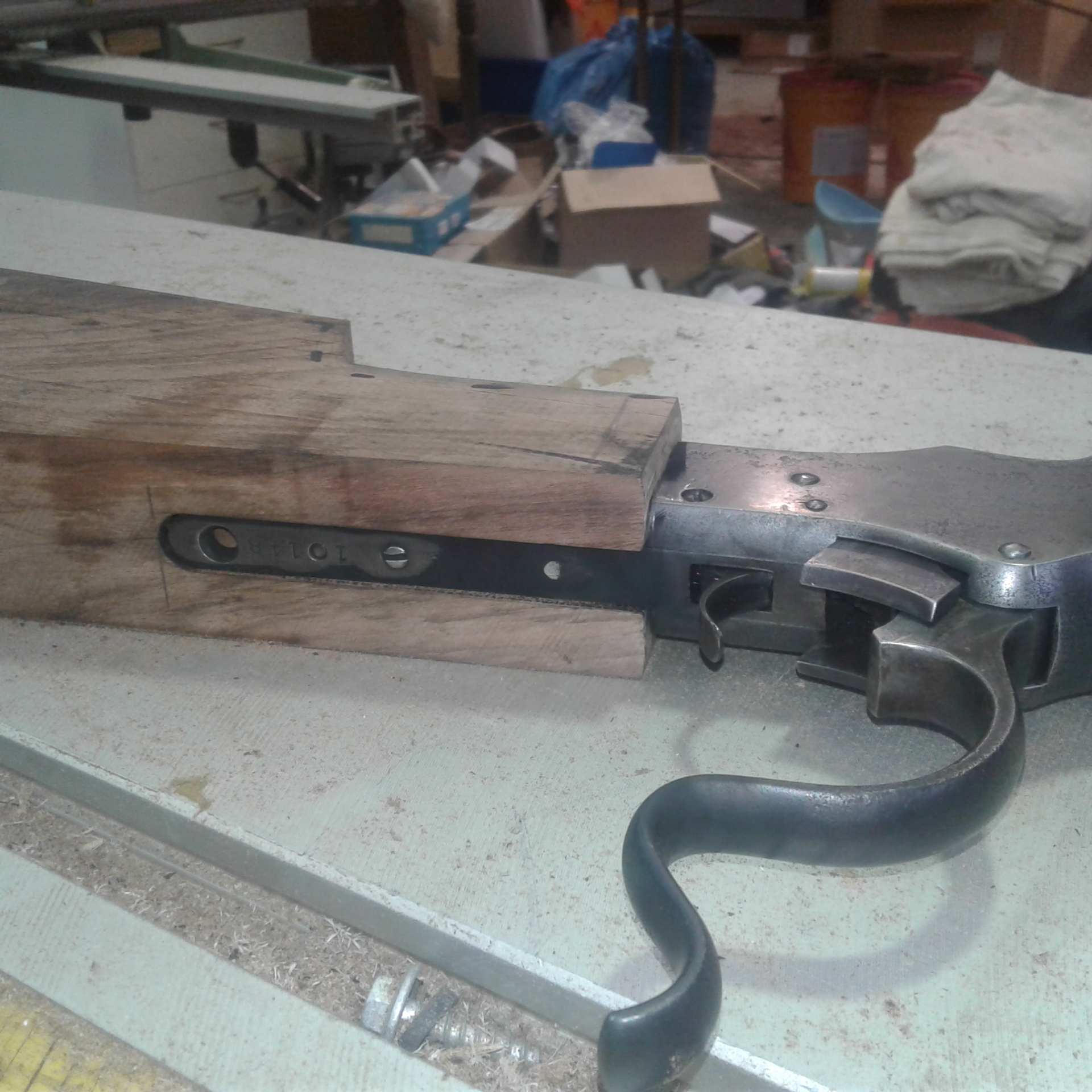

    Name:  20200414_115750.jpg
Views: 641
Size:  1,017.8 KB
    Name:  20200414_115804.jpg
Views: 639
Size:  1.11 MB

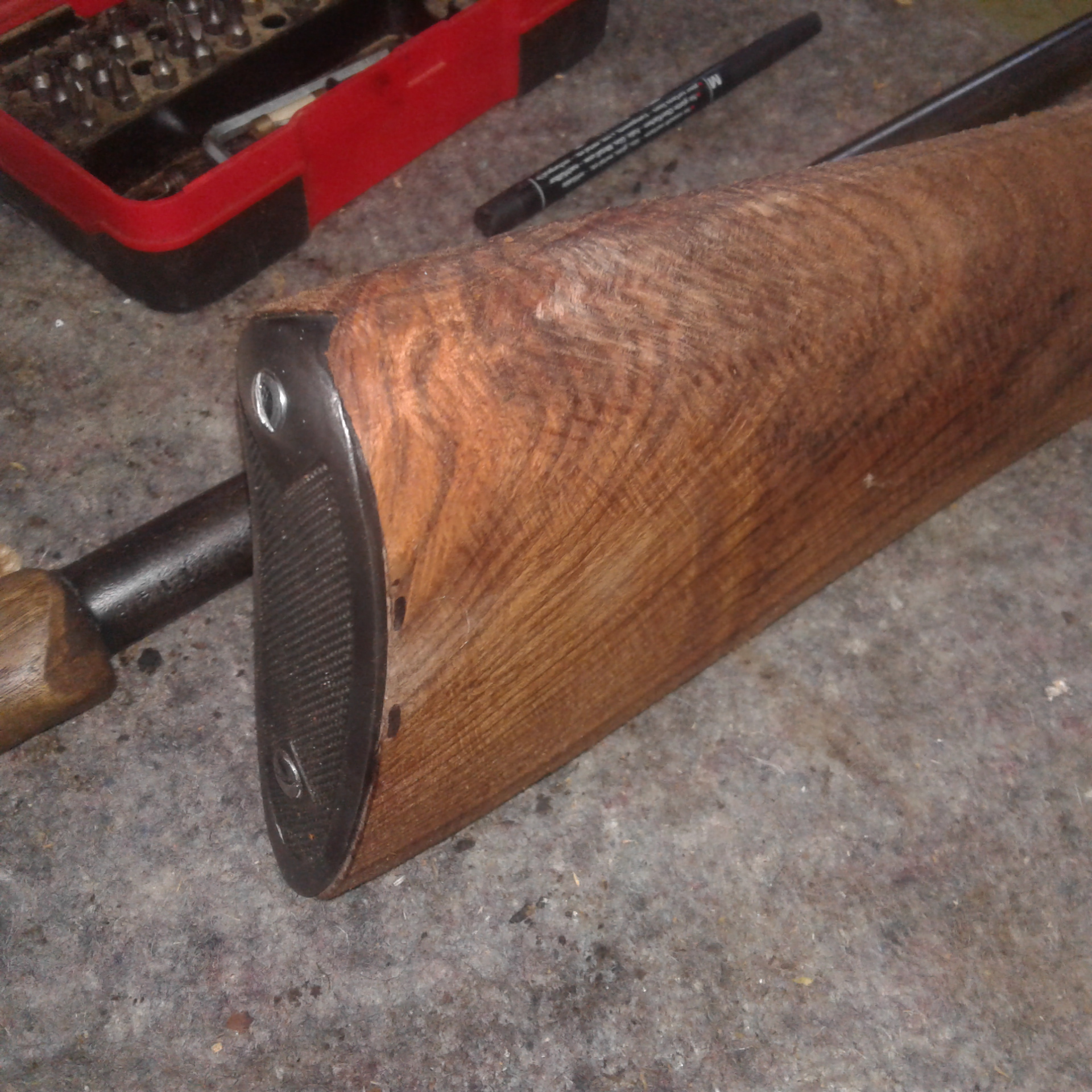

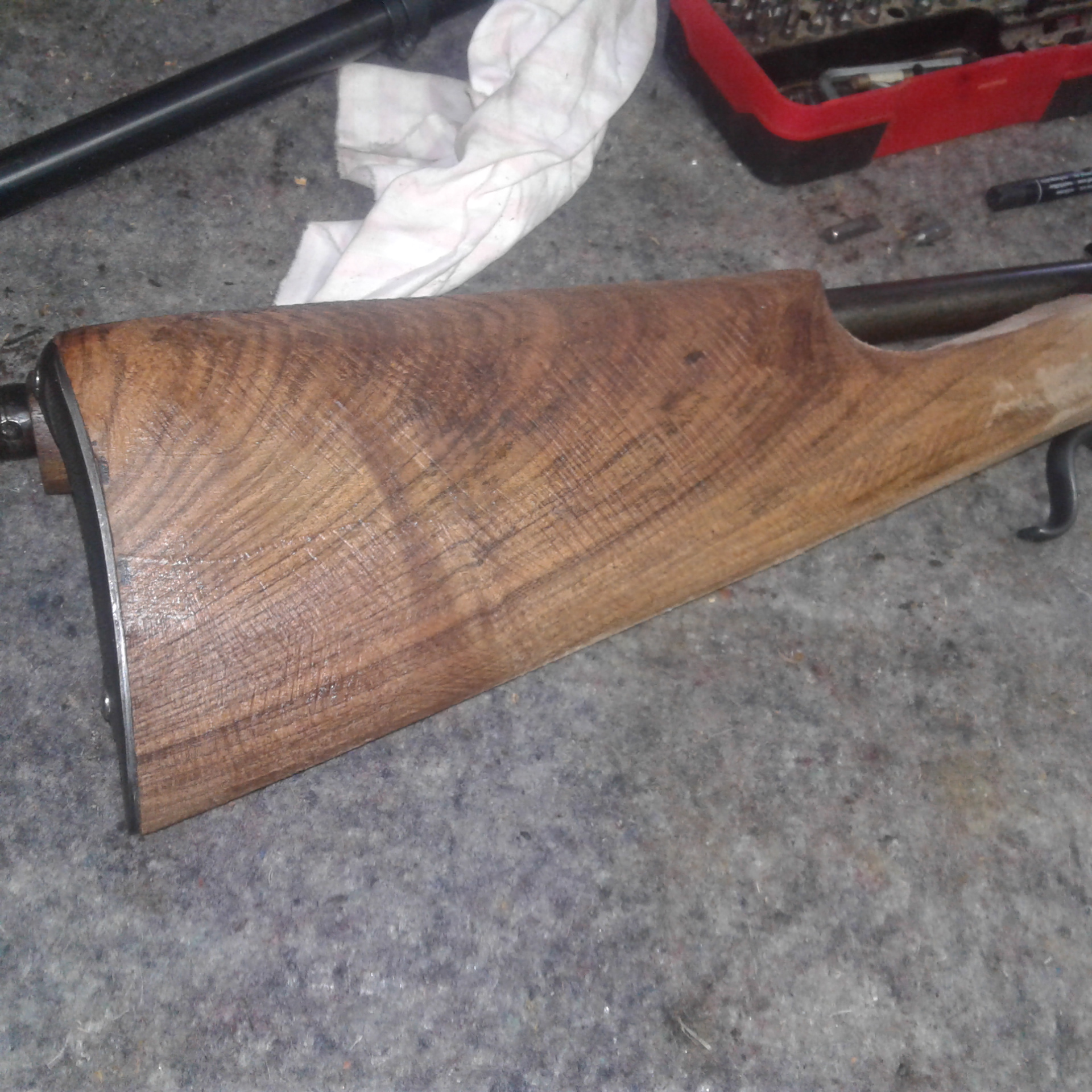

    Then I fitted the reproduction steel shotgun butt plate
    And got into a lot of stock removal.
    The hardest piece of walnut I have worked on for ages.

    Name:  20200414_172353.jpg
Views: 637
Size:  1.19 MB
    Name:  20200414_172322.jpg
Views: 622
Size:  1.16 MB

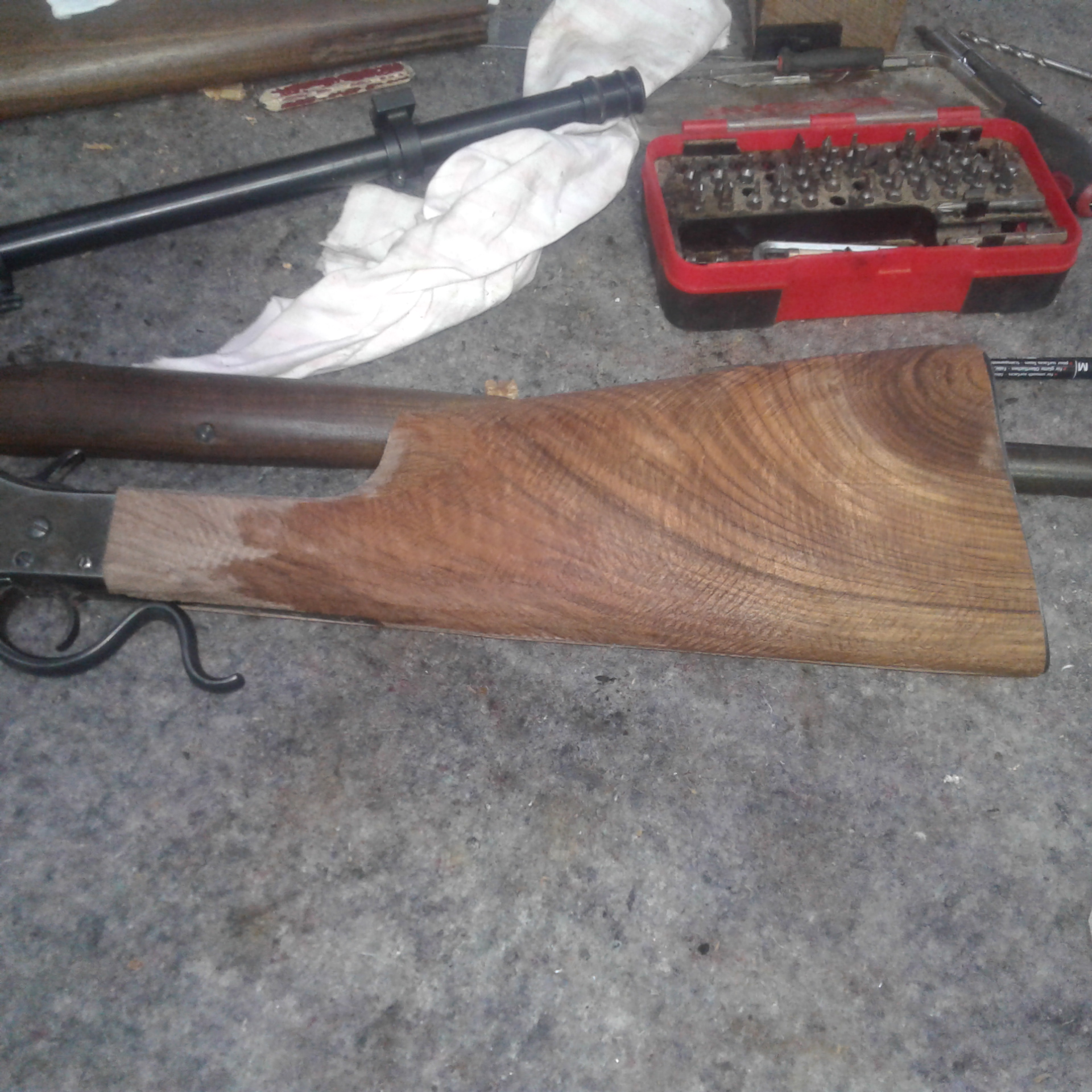

    Name:  20200414_172302.jpg
Views: 620
Size:  1.07 MB

    Still a hell of a lot to remove to get this into shape.
    And it's going to be a bitch to sand

  14. #194
    Member
    Join Date
    Jan 2015
    Location
    Wellington
    Posts
    2,591
    @akaroa1 - she's a beauty!

  15. #195
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,195
    Quote Originally Posted by Bol Tackshin View Post
    @akaroa1 - she's a beauty!
    It looks and feels like a club at the moment but another half day on it and it will be getting into shape

    It's been a long slow project getting that vintage rifle back into shooting condition

    But another wreck saved
