Thread: Self isolation gun projects

  1. #241
    northdude
    Guest
    Was talking to mrs about 22s asking if she found her one ok it's a savage mk2 she said it was alright but the bolt seemed a bit not nice to cycle so I had a look it felt about as good as a new norinco all gritty and not nice so I stripped the trigger and stuff of it some of the machining I had to draw file and then I set to with some wet and dry polishing everywhere it had been machined taking all the burs off its totally transformed into a nice slick action now
    Bol Tackshin, norsk and takbok like this.

  2. #242
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,198

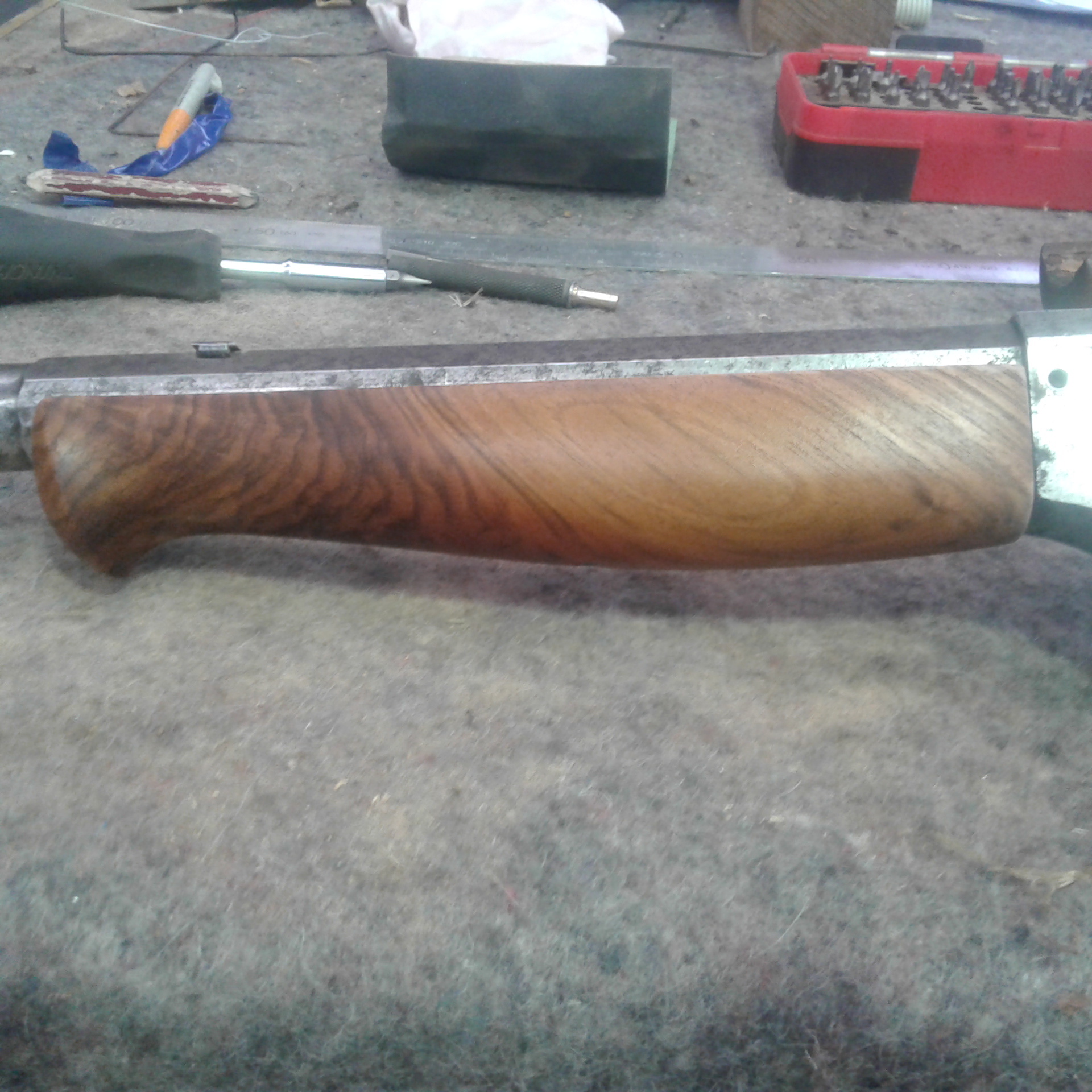

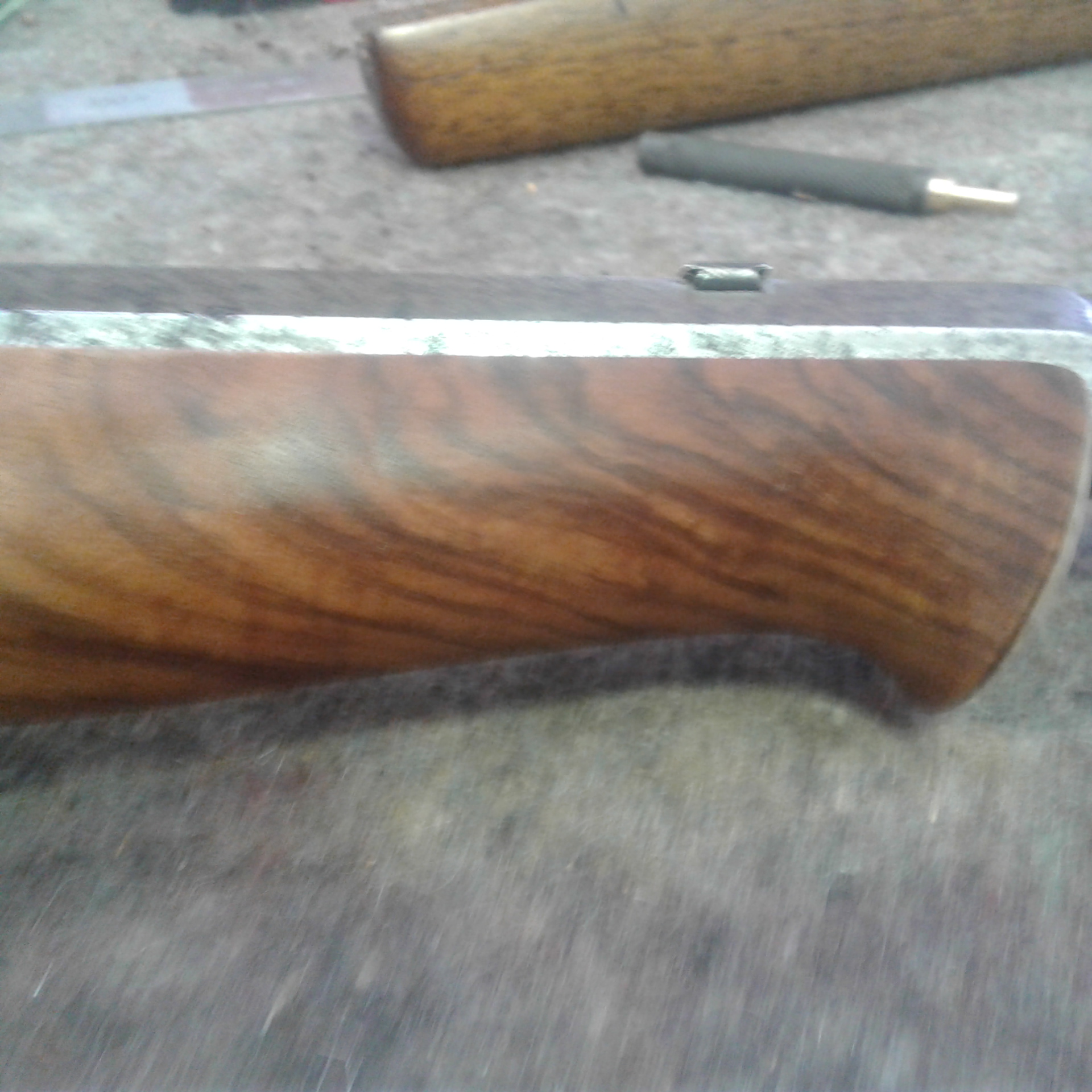

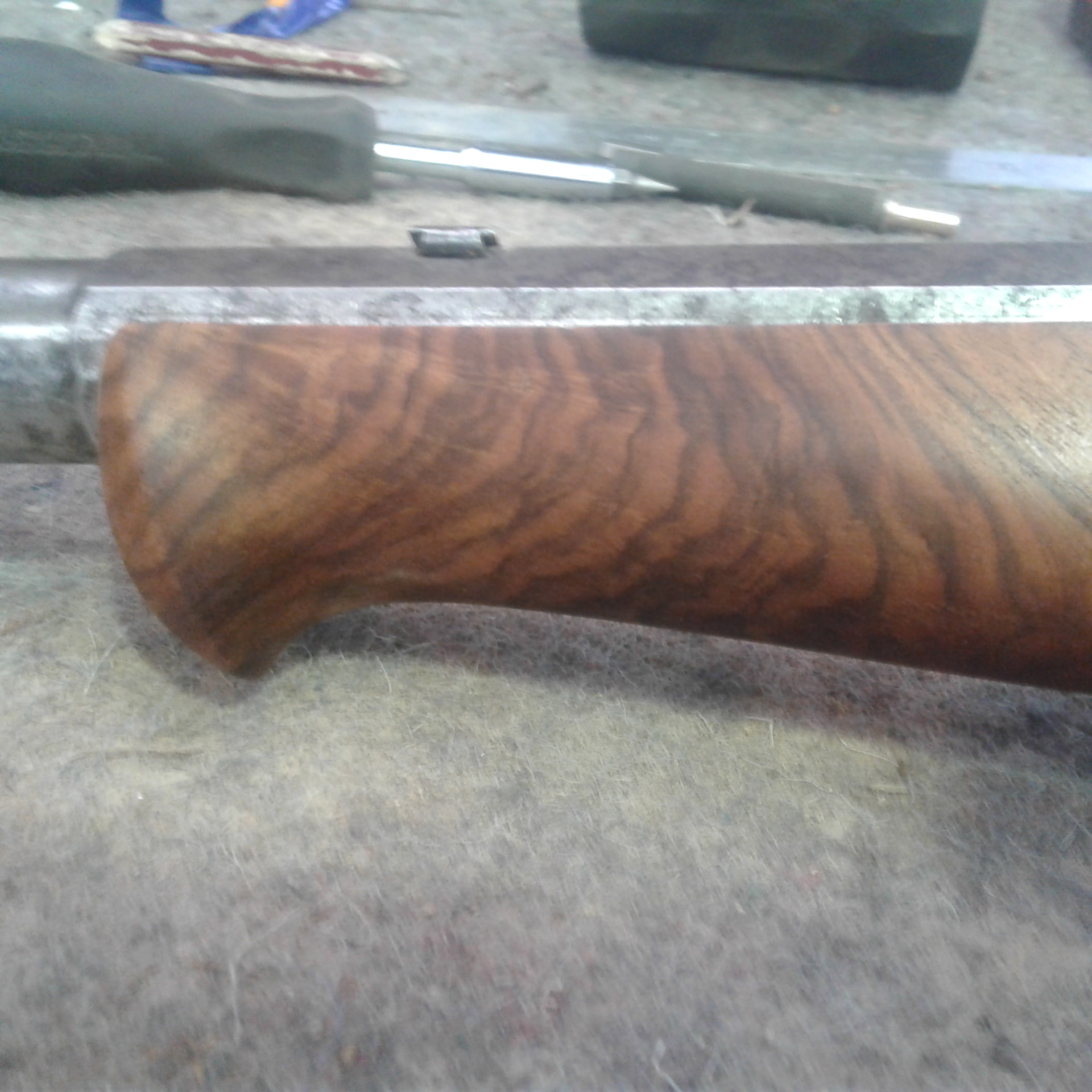

    He can come out of the closet now

    Name:  20200423_151519.jpg
Views: 499
Size:  983.8 KB

    Name:  20200423_151525.jpg
Views: 495
Size:  903.6 KB

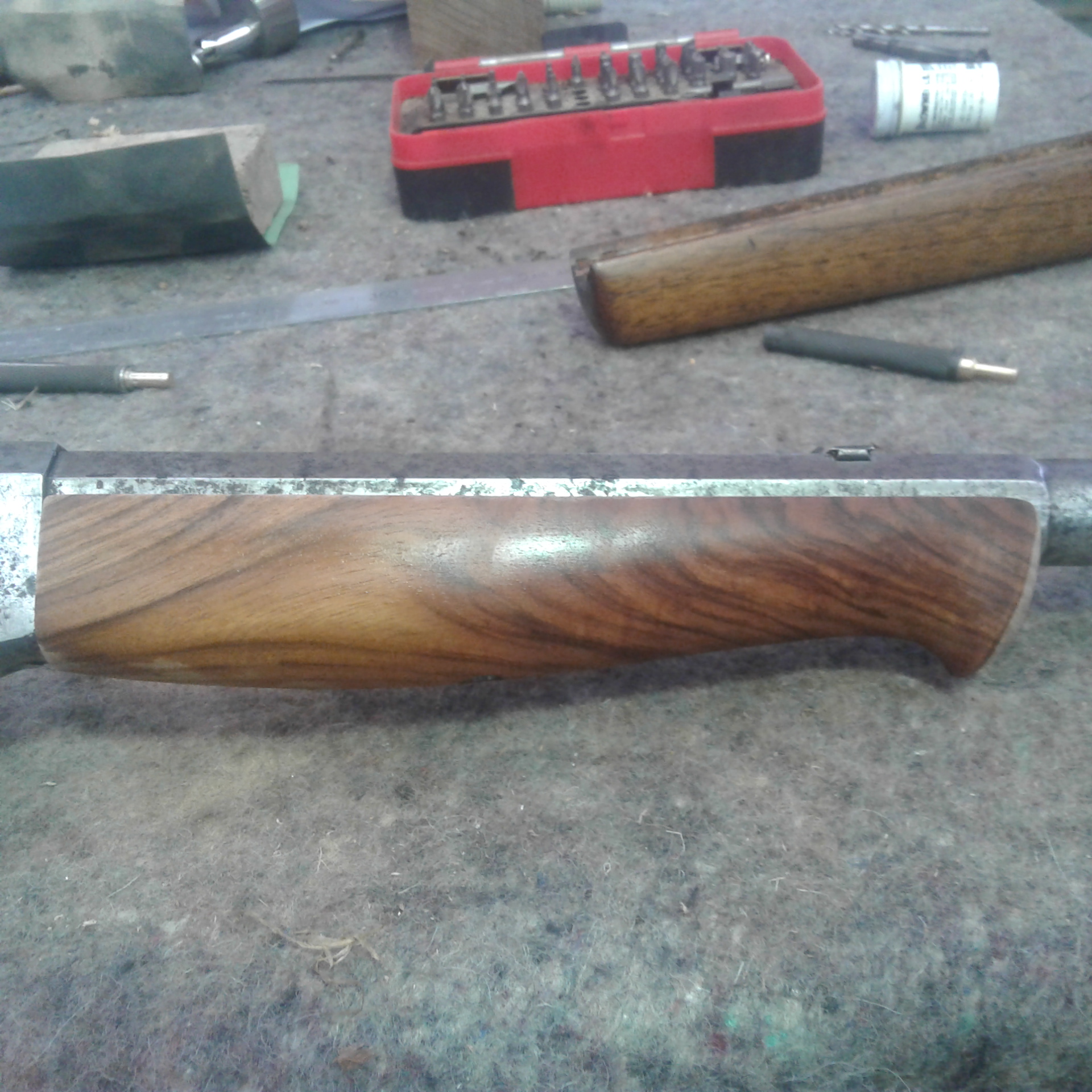

    Name:  20200423_151547.jpg
Views: 498
Size:  1.04 MB

    Name:  20200423_151554.jpg
Views: 504
Size:  860.1 KB

  3. #243
    Member
    Join Date
    Jul 2013
    Location
    Waikato
    Posts
    2,516
    [ATTACH]137447[/ATTACH
    All done and still shoot pretty good.
    Reshaped the forearm and around the pistol grip to fit my hand better 'got rid of the barrel band and it shots better,bedded the first 2in of the barre and floated the rest,and drilled out a lot of wood from under the recoil pad to,lighten it all up..those 22s are heavy...this is shooting CCI subs,want to try out some velocitors as they shot wel in my other .22s and kill ie the hammer of Thor on small game I have found.but bit loud for around the house,will try them on the neighbors farm next week.
    Attached Images Attached Images
    Last edited by The bomb; 24-04-2020 at 01:32 PM.

  4. #244
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,198

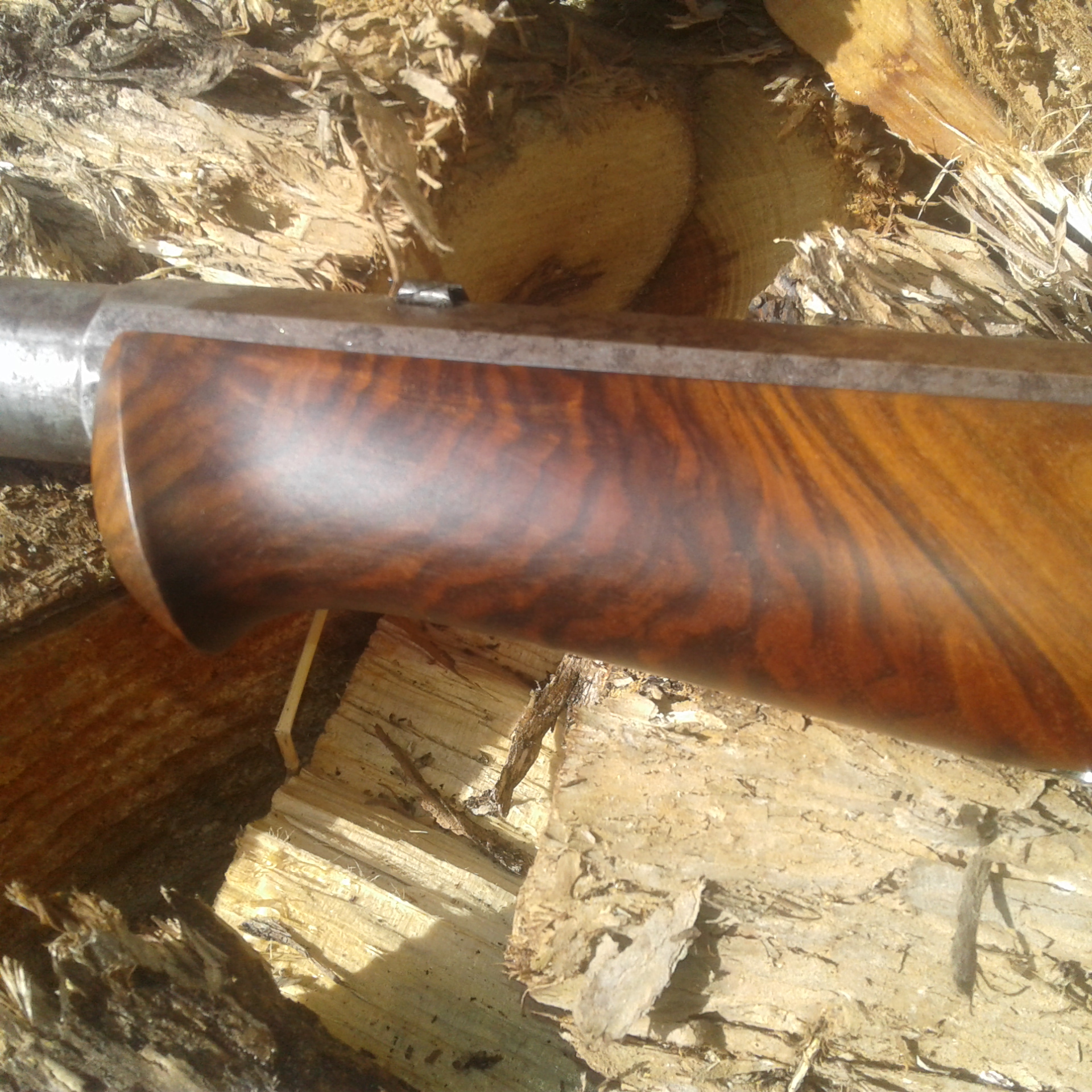

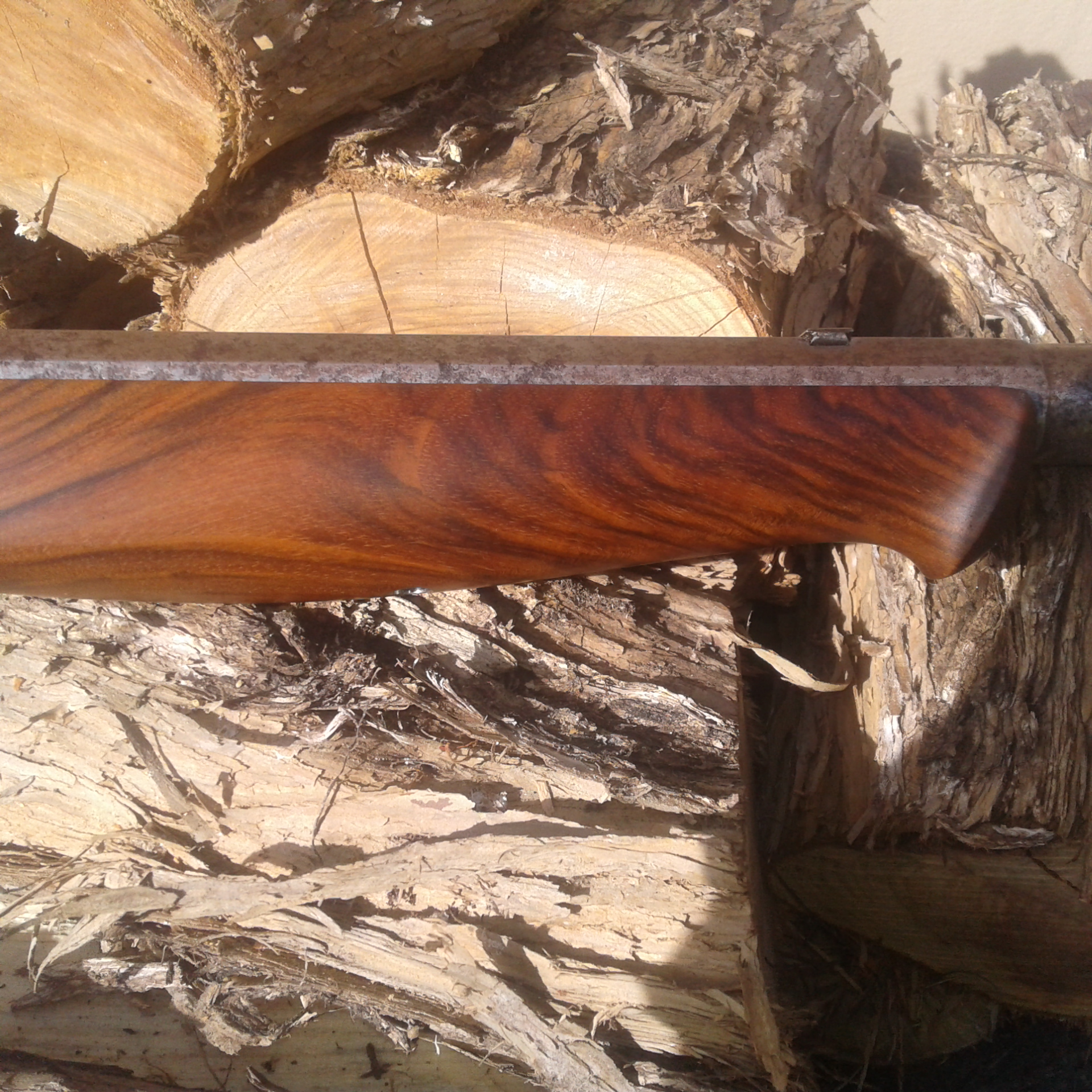

    Finished the Stevens 44 1/2 fore end after 20 coats of schaftol

    My mobile phone images don't do it justice

    Name:  20200426_102823.jpg
Views: 459
Size:  1.57 MB

    Name:  20200426_102806.jpg
Views: 439
Size:  1.38 MB

  5. #245
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,198

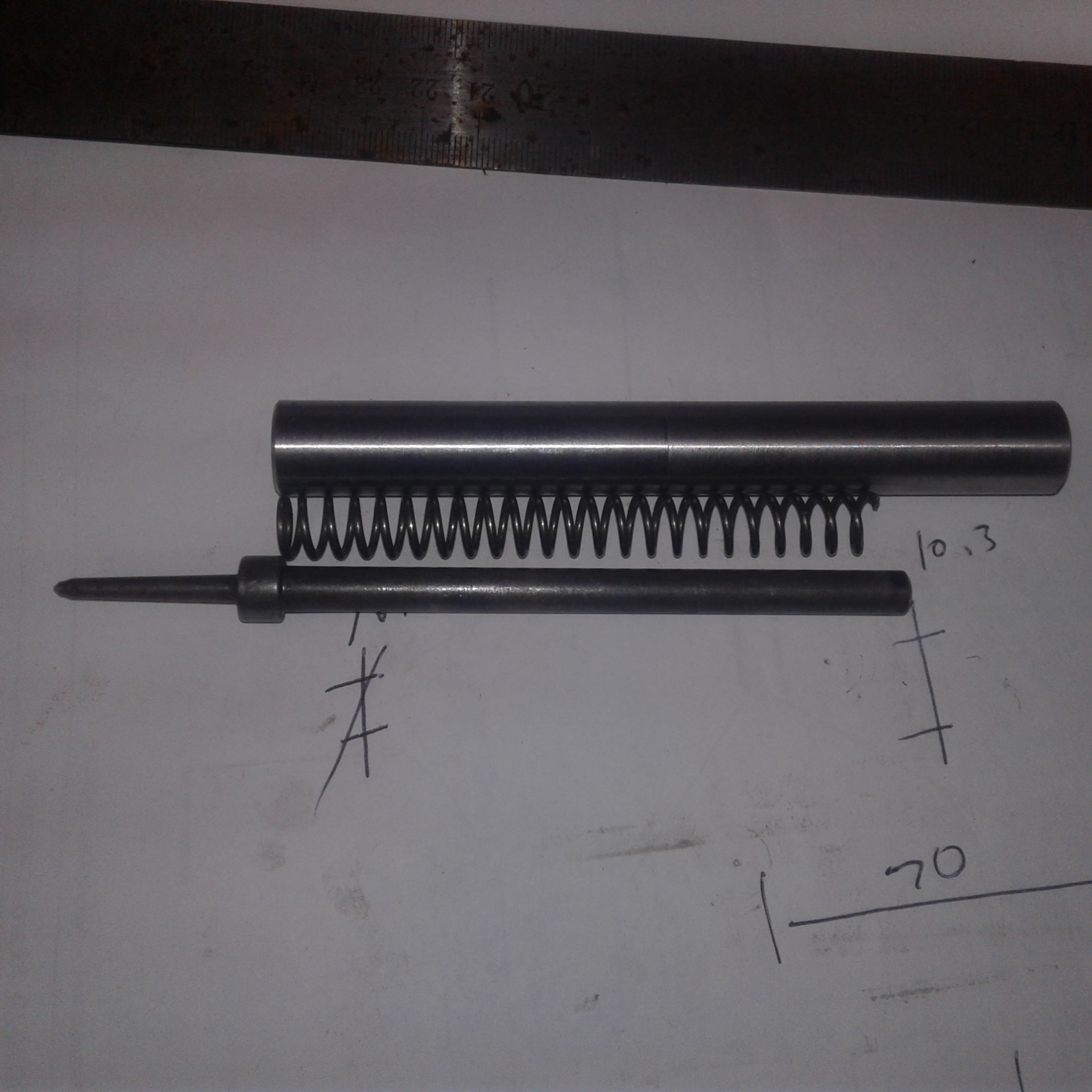

    Started making a heavy duty spring loaded tapping guide.
    I have to do some 7/8th tapping into a double rifle mono block so I wanted something with some grunt.

    Made from old center fire firing pin and spring
    New ss body

    Name:  20200426_102328.jpg
Views: 433
Size:  859.6 KB
    Micky Duck, takbok and Steelisreal like this.

  6. #246
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,198

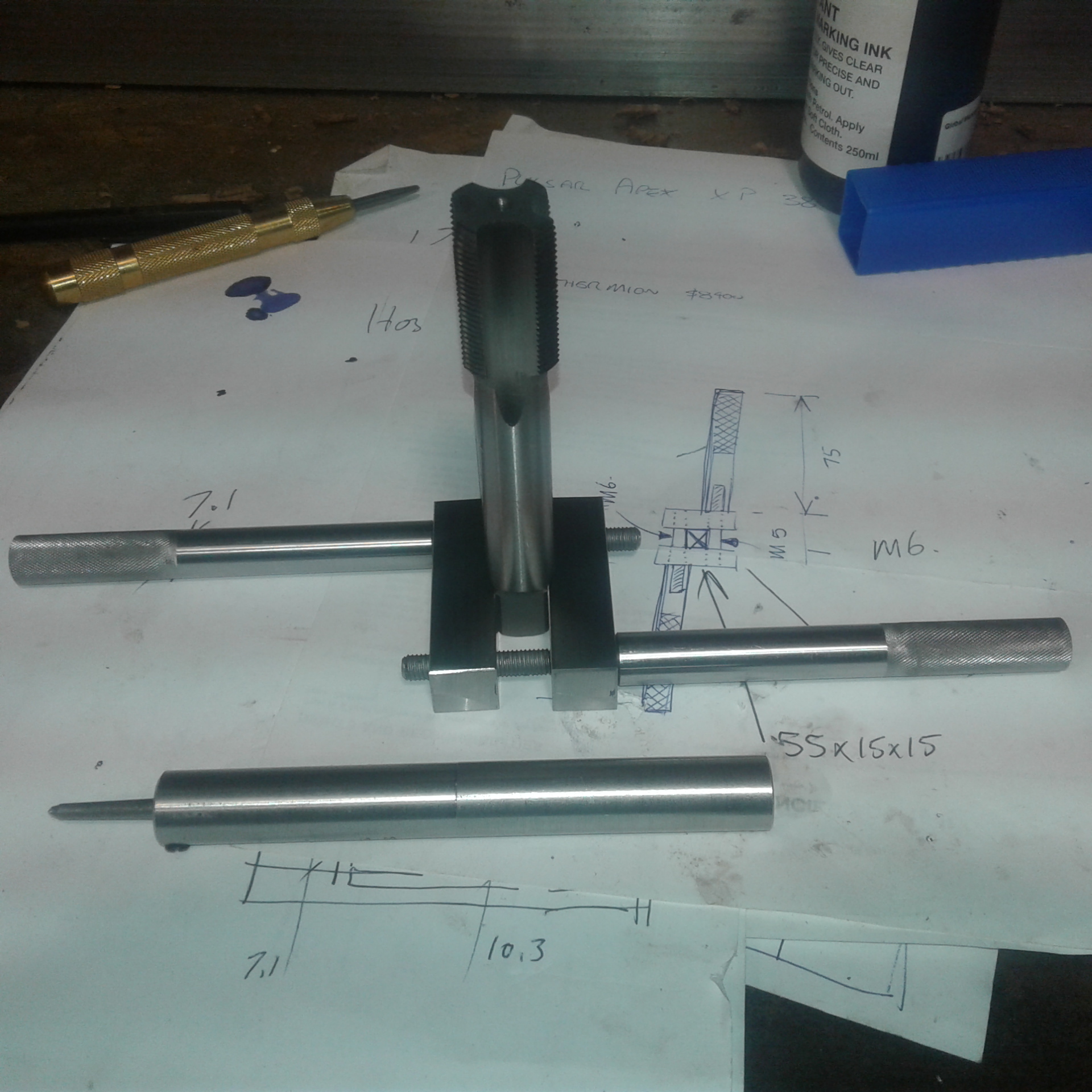

    Finished the heavy duty spring loaded tapping guide
    And also made a grunty tap spanner to swing the big tap that will thread part of the mono block

    Name:  20200427_164031.jpg
Views: 391
Size:  878.9 KB

  7. #247
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    2,263

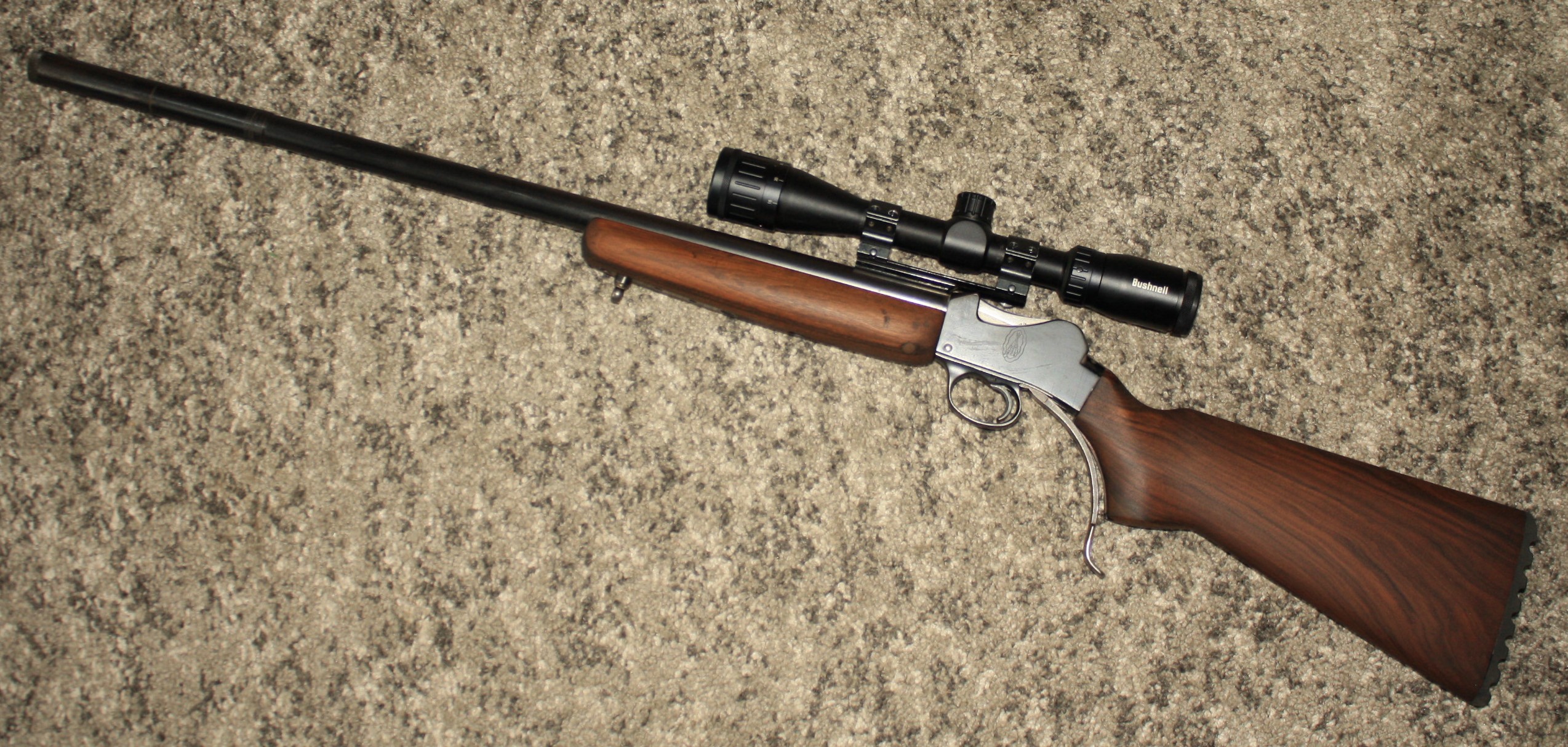

    I just knocked this up for a mate as his rabbit control rifle. It is a .22 BSA 12/15 target rifle, barrel shortened to 20" and a Parker Hale suppressor fitted, left receiver wall cut down for loading (he is a lefty), Weaver base and Bushnell 4-10x scope with trajectory compensating turret, check piece removed from stock, fore-end shortened and reshaped. Zeroed it yesterday at 50 metres. It is capable of consistent head shots on rabbits at 100 metres.
    Name:  IMG_3436.JPG
Views: 410
Size:  955.7 KB
    Brian, Tuidog, Bill999 and 15 others like this.

  8. #248
    Member
    Join Date
    Jan 2018
    Location
    kaiapoi
    Posts
    7,120
    @gundoc yup that is the sort of thing I'd like. Or one in 22 mag

  9. #249
    Member
    Join Date
    Feb 2018
    Location
    Waikato
    Posts
    1,304
    Nice work @gundoc looks great !


    Funny I have this




    But use this most of the time on Bunnys lol !


  10. #250
    Member
    Join Date
    Feb 2013
    Location
    spreydon christcurch.
    Posts
    6,971
    Quote Originally Posted by gundoc View Post
    I just knocked this up for a mate as his rabbit control rifle. It is a .22 BSA 12/15 target rifle, barrel shortened to 20" and a Parker Hale suppressor fitted, left receiver wall cut down for loading (he is a lefty), Weaver base and Bushnell 4-10x scope with trajectory compensating turret, check piece removed from stock, fore-end shortened and reshaped. Zeroed it yesterday at 50 metres. It is capable of consistent head shots on rabbits at 100 metres.
    Attachment 138227
    pure class -youve still got the touch!!

  11. #251
    Member
    Join Date
    Feb 2013
    Location
    spreydon christcurch.
    Posts
    6,971
    Quote Originally Posted by akaroa1 View Post
    Finished the Stevens 44 1/2 fore end after 20 coats of schaftol

    My mobile phone images don't do it justice

    Attachment 137696

    Attachment 137698
    that fairly oozes class and workmanship.

  12. #252
    Member
    Join Date
    Jan 2018
    Location
    Christchurch
    Posts
    703
    Quote Originally Posted by gundoc View Post
    I just knocked this up for a mate as his rabbit control rifle. It is a .22 BSA 12/15 target rifle, barrel shortened to 20" and a Parker Hale suppressor fitted, left receiver wall cut down for loading (he is a lefty), Weaver base and Bushnell 4-10x scope with trajectory compensating turret, check piece removed from stock, fore-end shortened and reshaped. Zeroed it yesterday at 50 metres. It is capable of consistent head shots on rabbits at 100 metres.
    Attachment 138227
    We need a really, really like button for stuff like this!

    Shooters Supplies were having a bit of a clearout sale recently with a few different Martini 22s in amongst it all. So far I've resisted the urge to research them too much as the shooting budget is fully utilised right now. But purely in the interests of general knowledge, if one had a hankering for doing this sort of conversion what are the pros and cons of the different BSA 22 variants? If any should pop up at an acceptable price of course @gundoc @small_caliber @Scout
    Bol Tackshin likes this.

  13. #253
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    2,263
    Quote Originally Posted by Steelisreal View Post
    We need a really, really like button for stuff like this!

    Shooters Supplies were having a bit of a clearout sale recently with a few different Martini 22s in amongst it all. So far I've resisted the urge to research them too much as the shooting budget is fully utilised right now. But purely in the interests of general knowledge, if one had a hankering for doing this sort of conversion what are the pros and cons of the different BSA 22 variants? If any should pop up at an acceptable price of course @gundoc @small_caliber @Scout
    The 12/15's are pretty near perfect for this conversion. The Mk II's etc are excellent rifles but much heavier. The old Vickers Martinis have a good action but the one-piece stocks are a very fragile design. 12/15's can still be found in the gun cupboards of country district rifle clubs and can usually be purchased for $150-250.
    small_caliber and Steelisreal like this.

  14. #254
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,198
    Well i have been working again in LEVEL 3
    And keeping a few gunsmithing jobs for the winter.

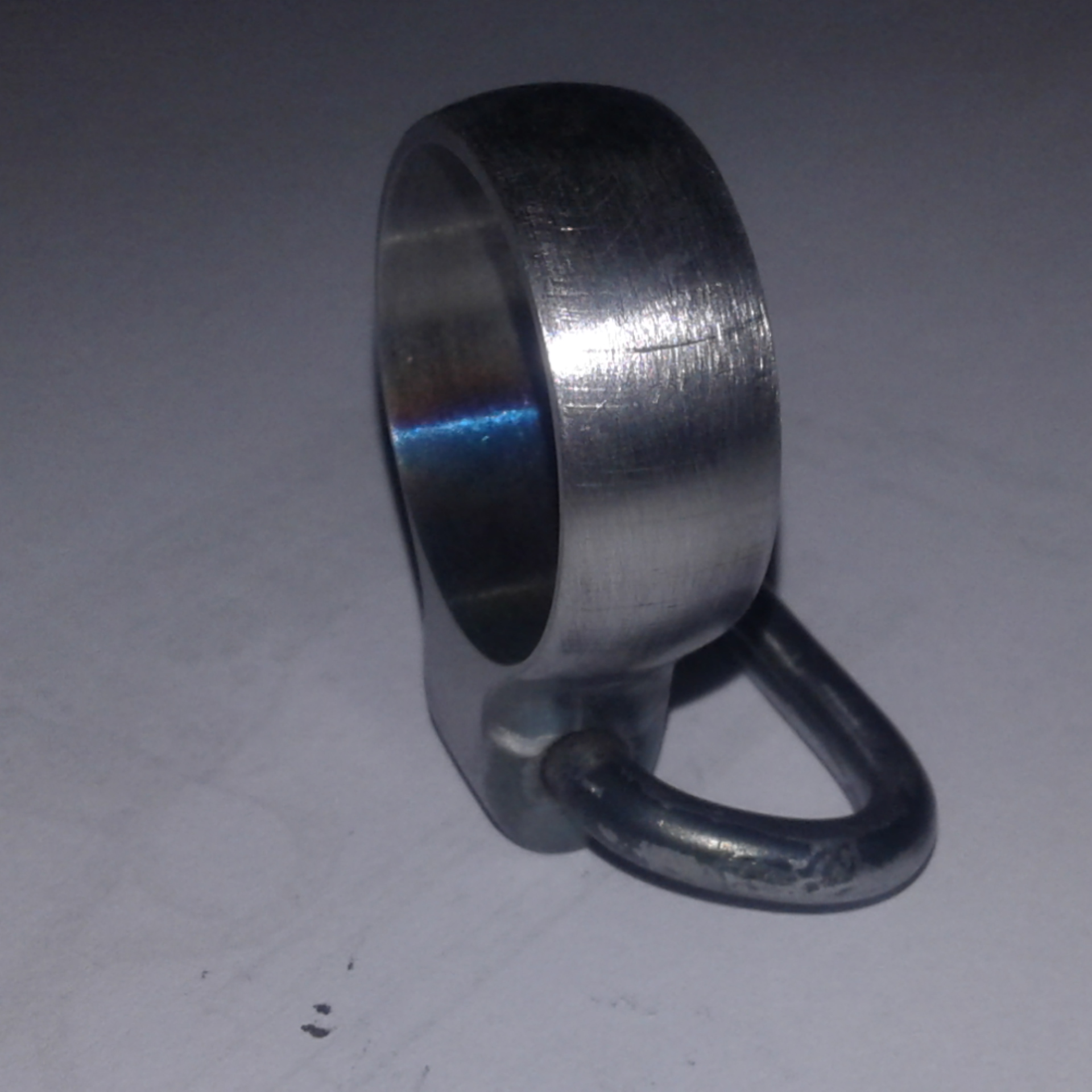

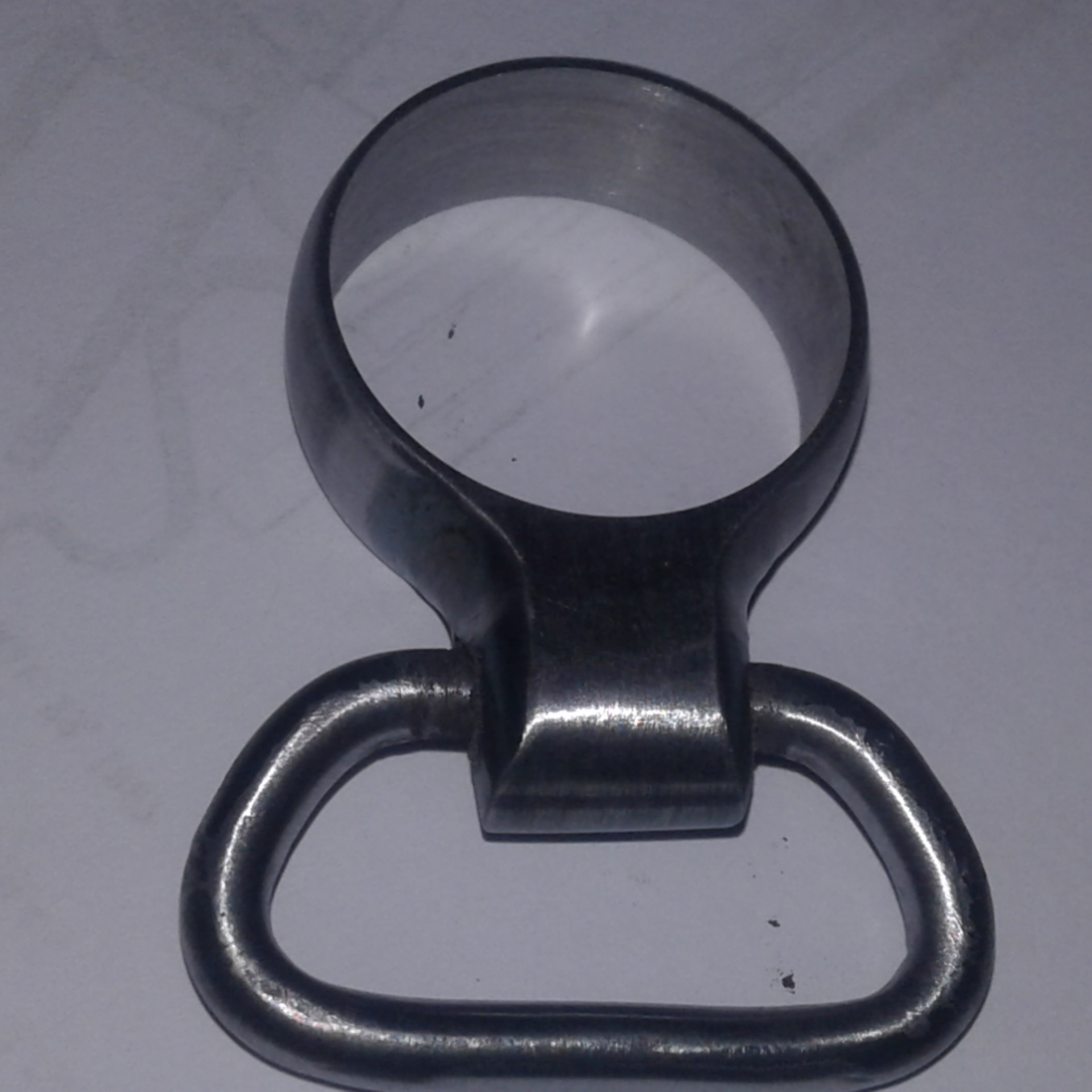

    But I did manage to make this little barrel band sling loop to mount on one of my vintage restorations

    Name:  20200509_112925.jpg
Views: 541
Size:  635.9 KB

    Name:  20200509_112958.jpg
Views: 548
Size:  599.1 KB
    Tentman, FRST, Steve123 and 2 others like this.

  15. #255
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,198
    Back on to the double rifle mono block

    Chucked up using a locating spud
    The chamber's aren't parallel to each other so they have to be done one at a time.
    Faced off
    Reamed
    Threaded for about 25mm
    Then re locate and do it all again on the other side.

    Happy with the result.
    Now i can start planning the barrel length and profiles

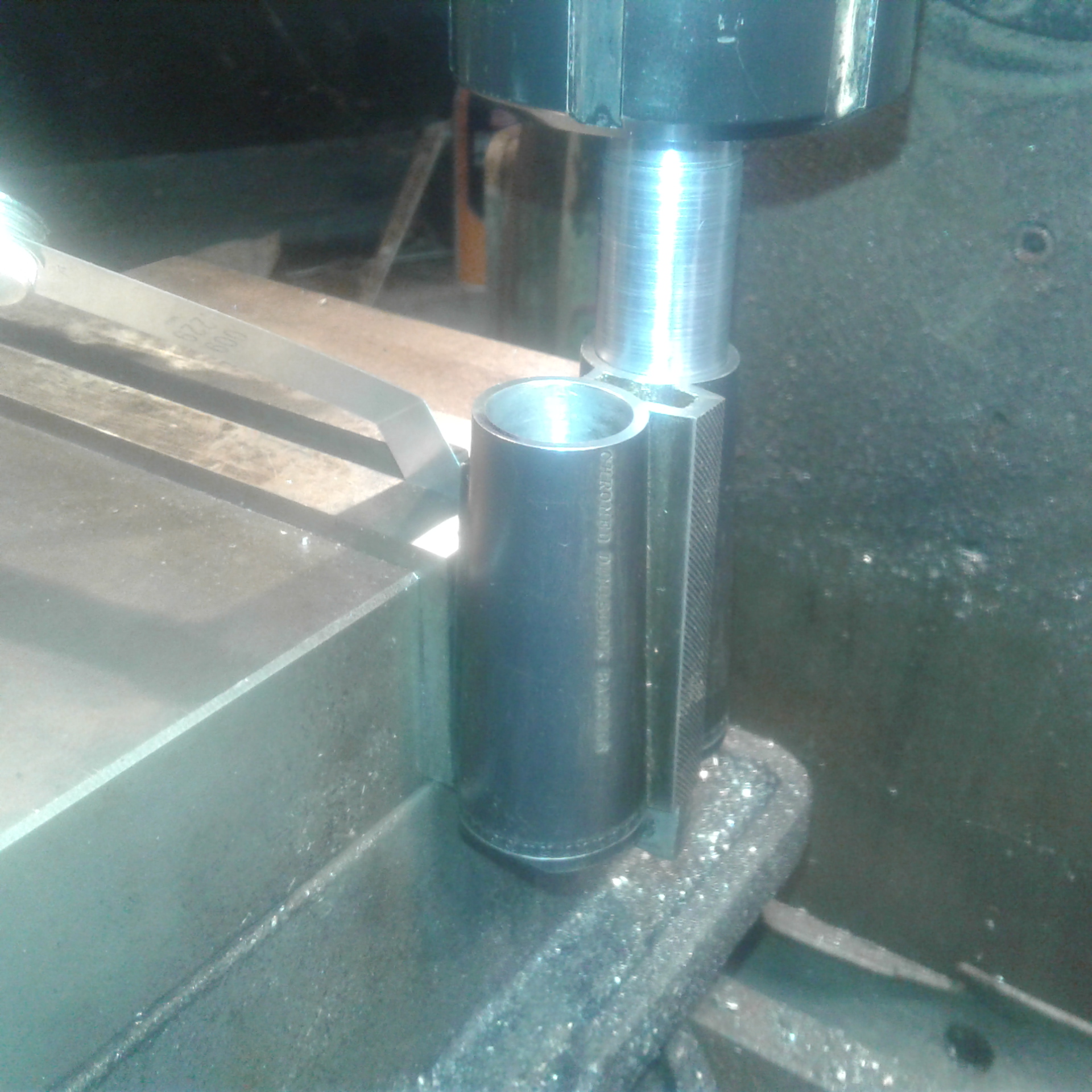

    Locate
    Name:  20200509_140421.jpg
Views: 507
Size:  960.2 KB

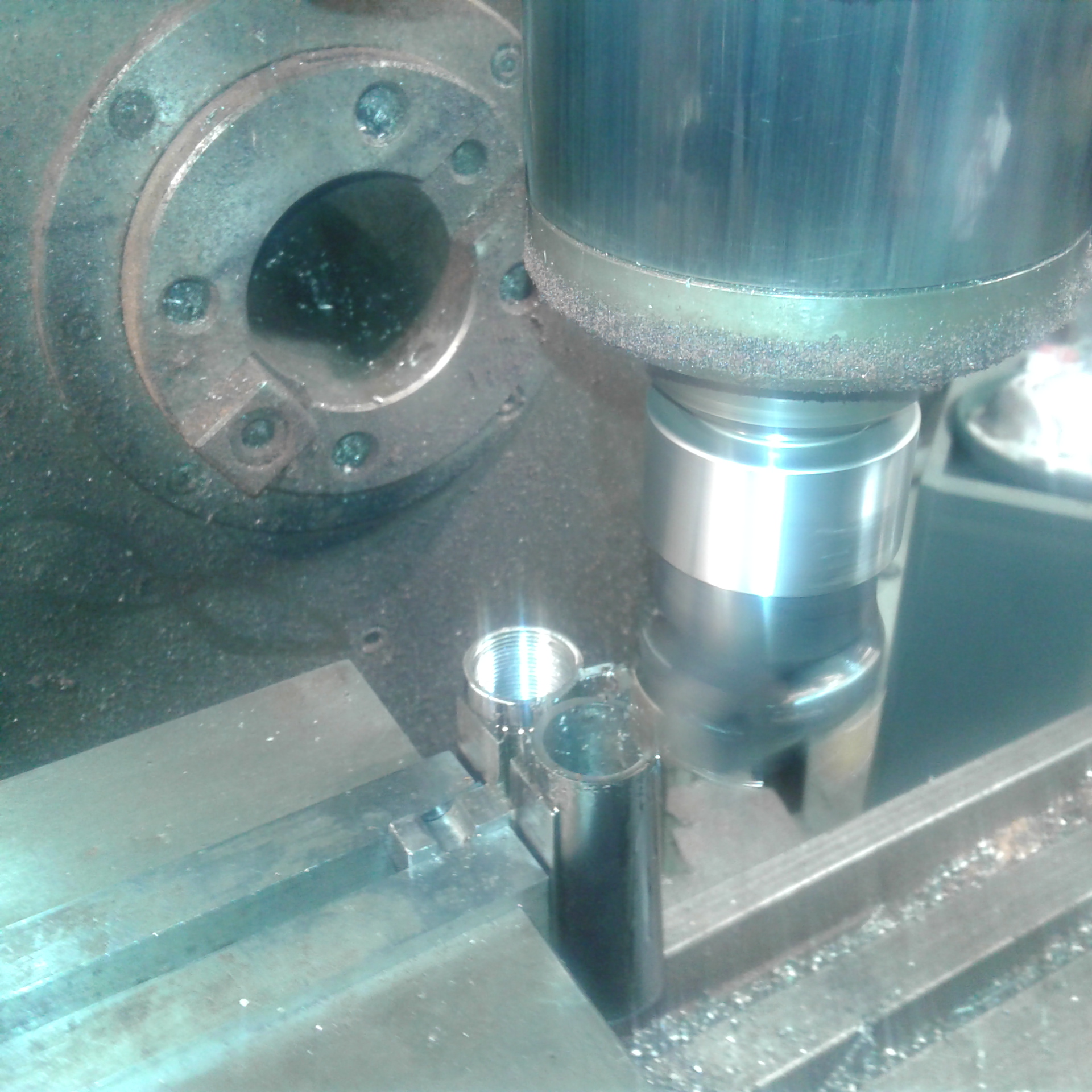

    Face off parallel to the bore
    Name:  20200509_165608.jpg
Views: 527
Size:  978.3 KB

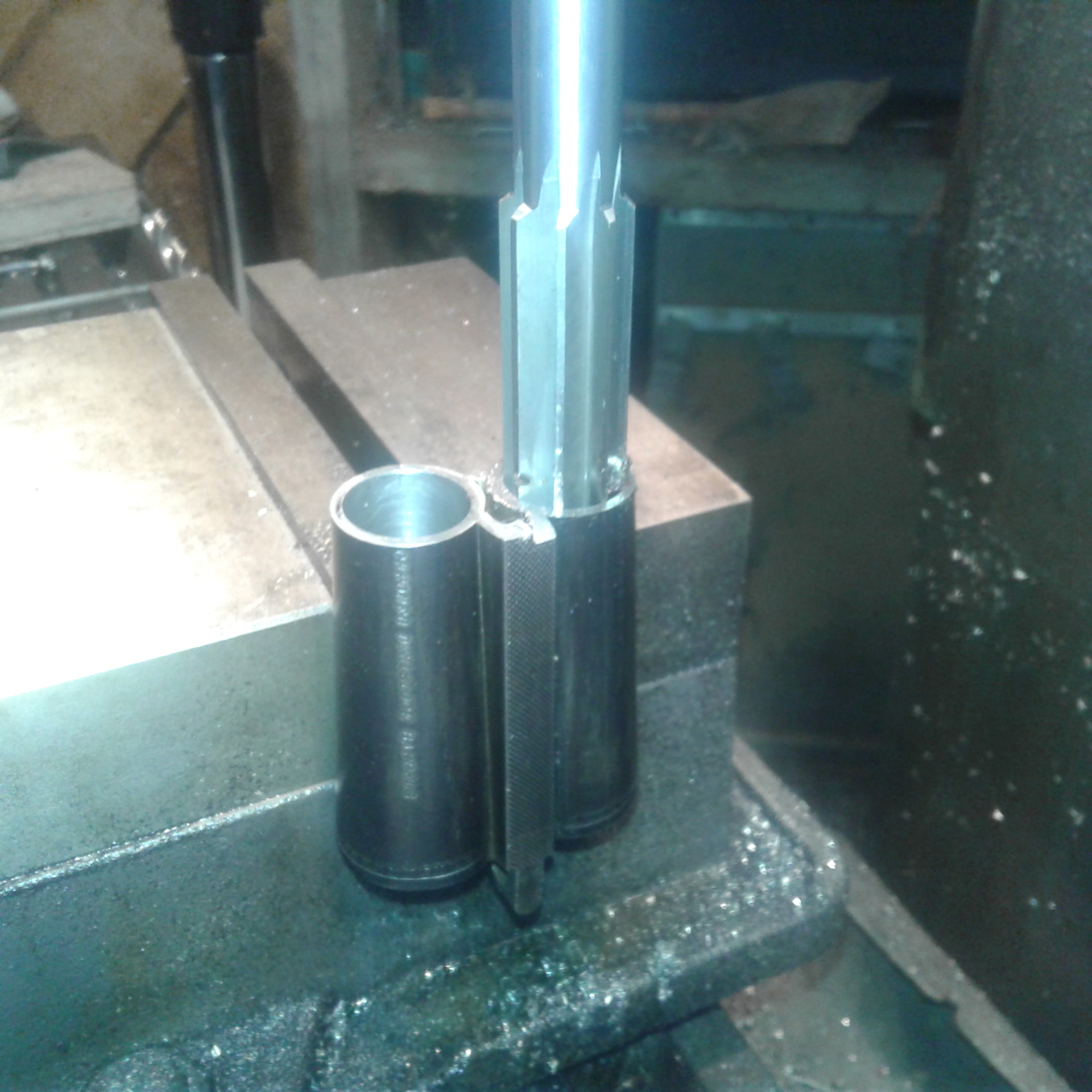

    Ream
    Name:  20200509_155244.jpg
Views: 523
Size:  919.7 KB

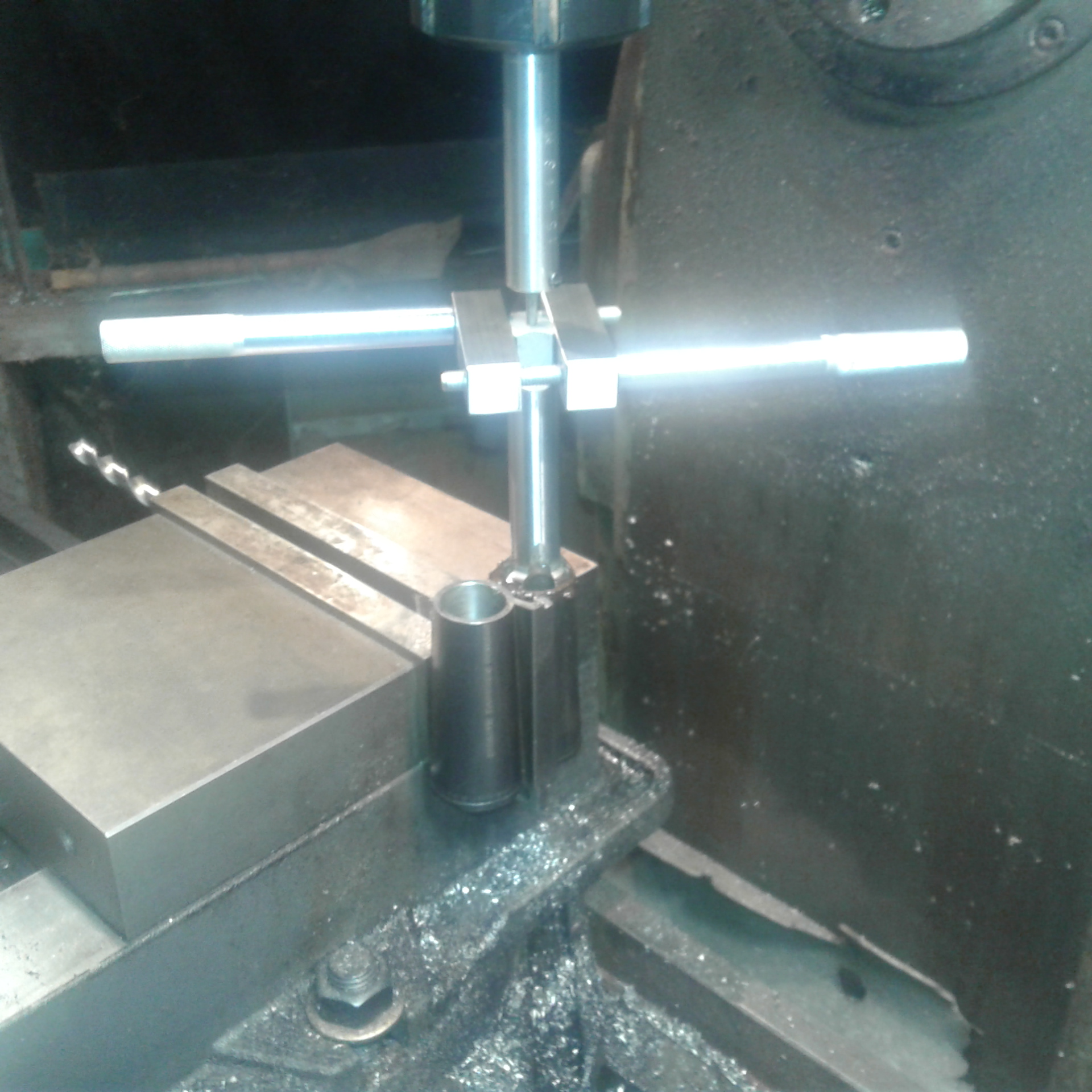

    Tap in a big 7/8" thread. Got a good sweat up
    Name:  20200509_162849.jpg
Views: 509
Size:  870.6 KB

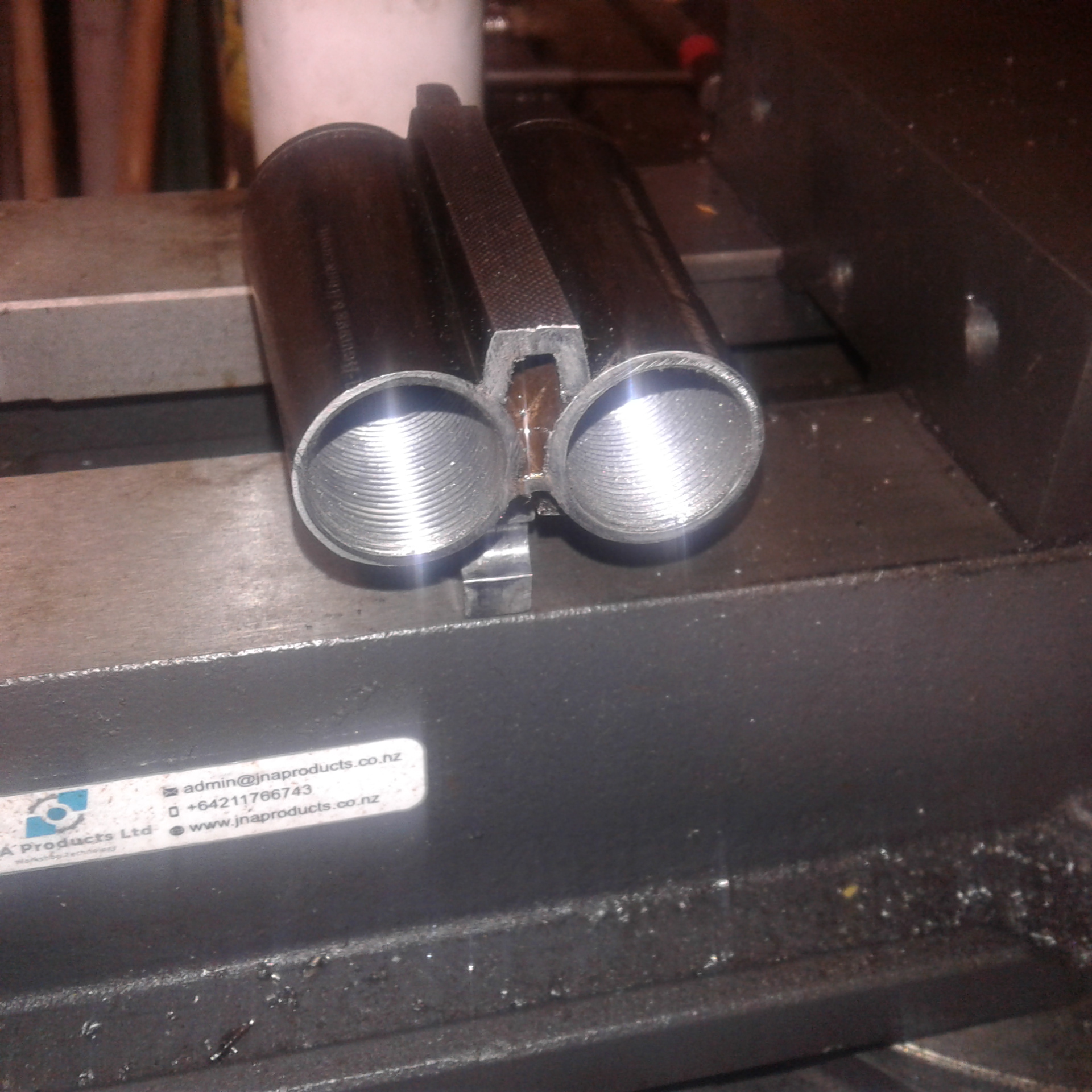

    One nice mono block ready for barrels
    Name:  20200509_174124.jpg
Views: 505
Size:  971.0 KB
