Thread: Shed built SS tumbler (Photo Heavy)

  1. #16
    Member
    Join Date
    Dec 2011
    Location
    West of Christchurch
    Posts
    1,701
    How about an old microwave turntable motor? Or washing machine?

  2. #17
    Member nzfubz's Avatar
    Join Date
    Sep 2012
    Location
    Christchurch
    Posts
    1,228

  3. #18
    Member
    Join Date
    Jul 2013
    Location
    Tasman
    Posts
    1,817

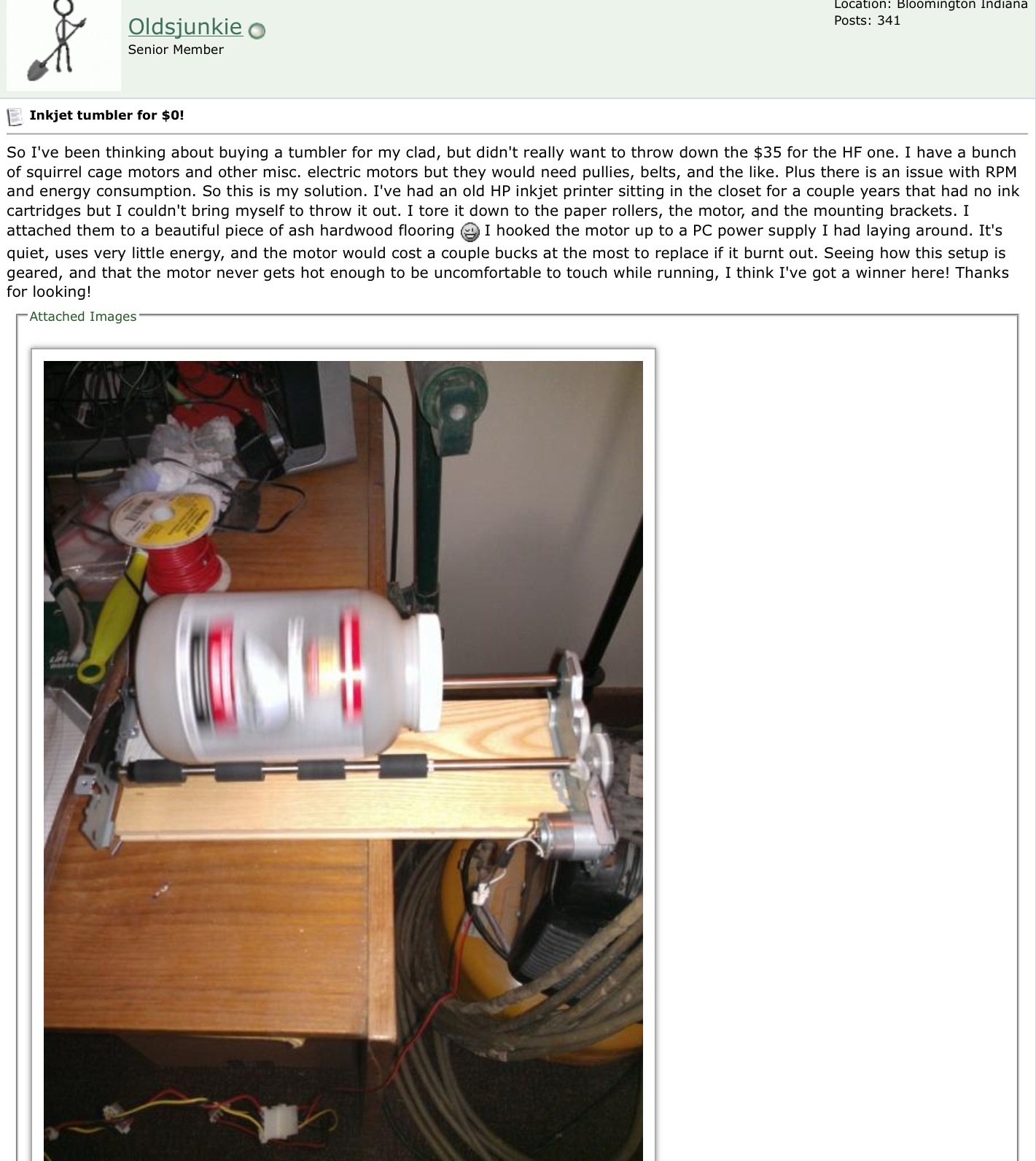

    An inkjet example, from memory it was from a metal detector forum or something along those lines.
    Name:  image.jpg
Views: 513
Size:  405.3 KB
    Nibblet likes this.

  4. #19
    Member Dead is better's Avatar
    Join Date
    Jan 2012
    Location
    Auckland
    Posts
    977

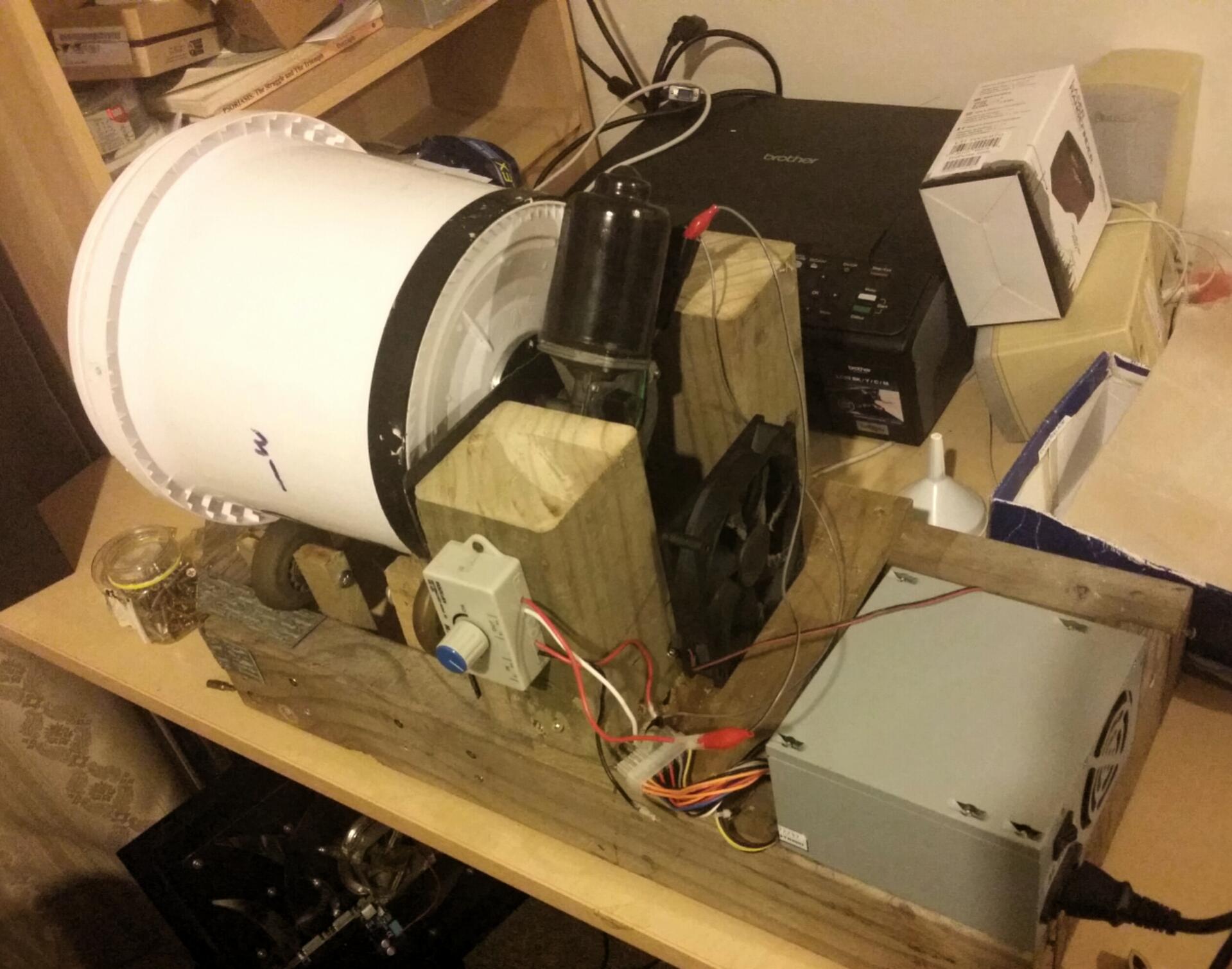

    Name:  2015-04-24 19.07.48.jpg
Views: 443
Size:  240.7 KB
    Last edited by Dead is better; 24-04-2015 at 08:10 PM.
    sparky1000 likes this.

  5. #20
    Member Dead is better's Avatar
    Join Date
    Jan 2012
    Location
    Auckland
    Posts
    977
    As you can see I have zero metal working skills. Good thing you don't need them for this project. It's all about the end result
    nzfubz likes this.

  6. #21
    Member 300CALMAN's Avatar
    Join Date
    Dec 2014
    Location
    NZISTAN
    Posts
    5,232
    I am trying to decide weather to build or purchase one..

    Thumler's Tumbler Model B Rotary Tumbler : Cabela's

    A local source of the ss pins:

    Gunsmithing &Reloading Tools - Frankford Arsenal Stainless Steel Tumbling Media - 5lbs, Brass Case Cleaning

    BUT still considering a buid. Very impressed NZFUBZ how much do you think it cost all up?

  7. #22
    Member nzfubz's Avatar
    Join Date
    Sep 2012
    Location
    Christchurch
    Posts
    1,228
    About $200 from memory not including the media (only have to buy that once) Would all depend on finding a cheap motor.

  8. #23
    Member 300CALMAN's Avatar
    Join Date
    Dec 2014
    Location
    NZISTAN
    Posts
    5,232
    MMM sounds about right, the bearings and shafts cant be cheap. Thanks for the generous supply of information I am currently using one of the silly little 3lb ones which just aint big enough so going to do something soon. I will look and see if I can find a motor. Cheers!

  9. #24
    Member Dead is better's Avatar
    Join Date
    Jan 2012
    Location
    Auckland
    Posts
    977
    Get a front wiper motor and hook it to a bucket. No pulleys or gears. You can run them off a PC power supply too. I've seen those motors for $6.50 on trademe.

    http://www.scary-terry.com/wipmtr/wipmtr.htm

    That's all you need to know about these little slow moving motors.

  10. #25
    Gone but not forgotten
    Join Date
    Jul 2014
    Location
    Porirua
    Posts
    87
    D i b: How did you couple the motor shaft to the bottom of the drum (pail) base?

    I've been considering making a tumbler along the lines of yours. I already have the wiper motor (left over from another project that didn't proceed) and other electrical bits needed, and some pails and idler wheels. Been pondering over different ways of coupling them up, bearing in mind that the pail must be readily detachable. What worked for you?

  11. #26
    Member
    Join Date
    Jul 2013
    Location
    Tasman
    Posts
    1,817
    Quote Originally Posted by 300CALMAN View Post
    I am trying to decide weather to build or purchase one..

    Thumler's Tumbler Model B Rotary Tumbler : Cabela's

    A local source of the ss pins:

    Gunsmithing &Reloading Tools - Frankford Arsenal Stainless Steel Tumbling Media - 5lbs, Brass Case Cleaning

    BUT still considering a buid. Very impressed NZFUBZ how much do you think it cost all up?
    Have you considered the Rebel 17, it looks a lot tougher than the Thumlers Model B.

  12. #27
    Member ExPoh75's Avatar
    Join Date
    Jul 2014
    Location
    Berwick, VIC
    Posts
    35
    bbq rotisserie motor works well if you can get one cheap

  13. #28
    Member Dead is better's Avatar
    Join Date
    Jan 2012
    Location
    Auckland
    Posts
    977
    Quote Originally Posted by redrover View Post
    D i b: How did you couple the motor shaft to the bottom of the drum (pail) base?

    I've been considering making a tumbler along the lines of yours. I already have the wiper motor (left over from another project that didn't proceed) and other electrical bits needed, and some pails and idler wheels. Been pondering over different ways of coupling them up, bearing in mind that the pail must be readily detachable. What worked for you?
    I tried my favorite go to glue but it failed. I then tried selleys all plastic fix glue. The primer comes with it and it's held so far. I found an old camera mount with a std m8 threaded hole and just glued it to the bottom of the 10L bucket. It's just rolling on 2 sets of rollerblade wheels too. All up that bucket gets fairly heavy eh.

  14. #29
    Member Dead is better's Avatar
    Join Date
    Jan 2012
    Location
    Auckland
    Posts
    977
    For best results you must get the bucket down to 30rpm if you can. 60 does noticeably less so put a fan onto the motor if u have to. It will get hot if you slow down an AC motor by restrictions the voltage.

  15. #30
    Member 300CALMAN's Avatar
    Join Date
    Dec 2014
    Location
    NZISTAN
    Posts
    5,232
    Quote Originally Posted by Moutere View Post
    Have you considered the Rebel 17, it looks a lot tougher than the Thumlers Model B.
    Interesting, yes it looks better in some respects.

    I am going to look into a wiper motor also.
