Thread: So You Want to Build Your Own E-Cat Safe..

  1. #1
    308
    308 is offline
    Member 308's Avatar
    Join Date
    Dec 2012
    Location
    Wairarapa
    Posts
    3,927

    So You Want to Build Your Own E-Cat Safe..

    TL;DR Buy one

    For those of a more bloody-minded nature, press on

    Prices are very rough and from memory
    2x sheets 6mm steel = $550?
    Extra steel about $70
    2x Ross 5-lever locks mebbe $200
    Welding shield gas and consumables around $180


    If you haven't got a cutter get the factory to cut it but check, check and check again.

    Name:  DSCF0786 Cut Sides and Ends.jpg
Views: 1390

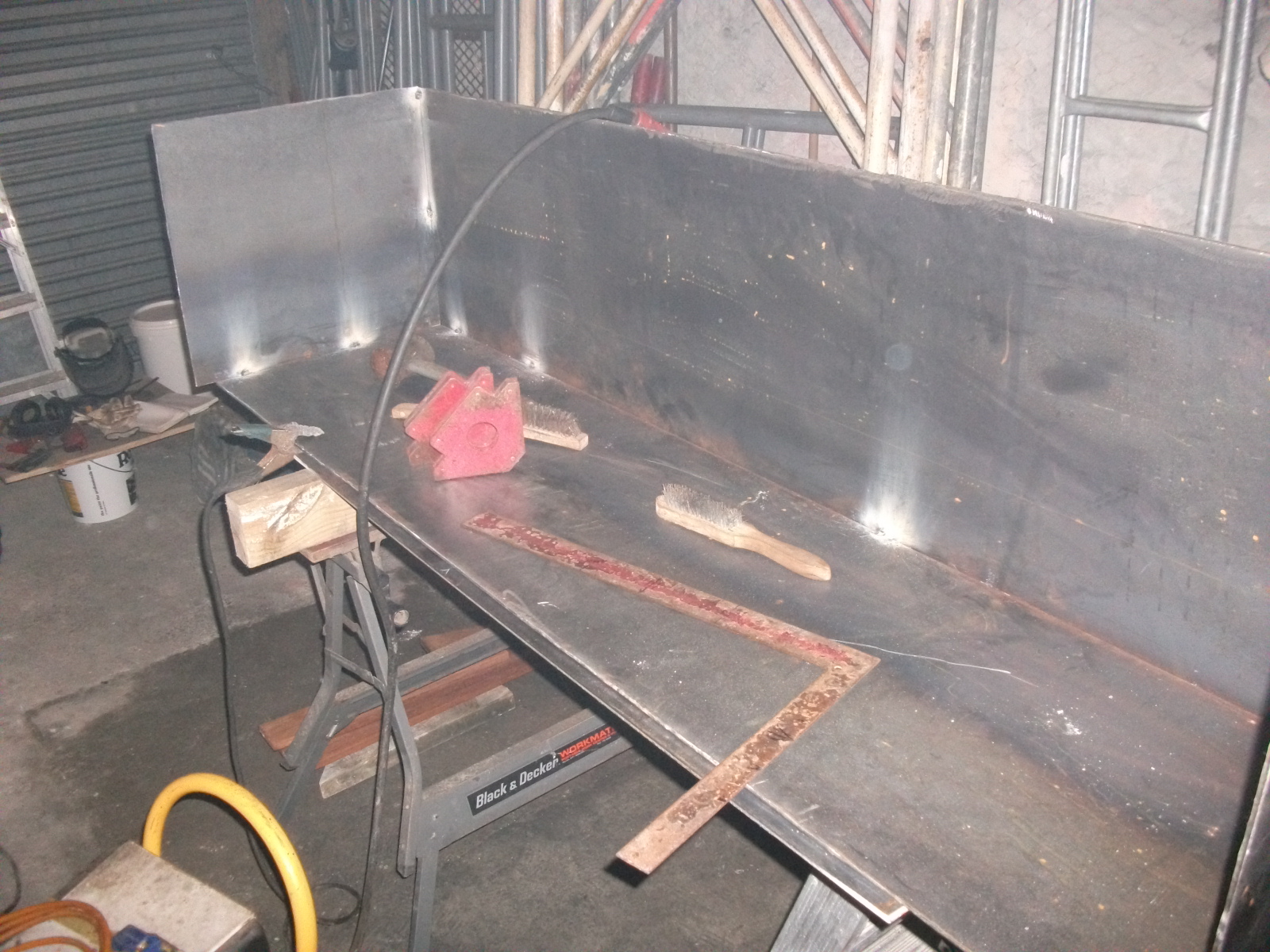

Size:  579.9 KBName:  DSCF0791 Tack Weld.jpg
Views: 1476

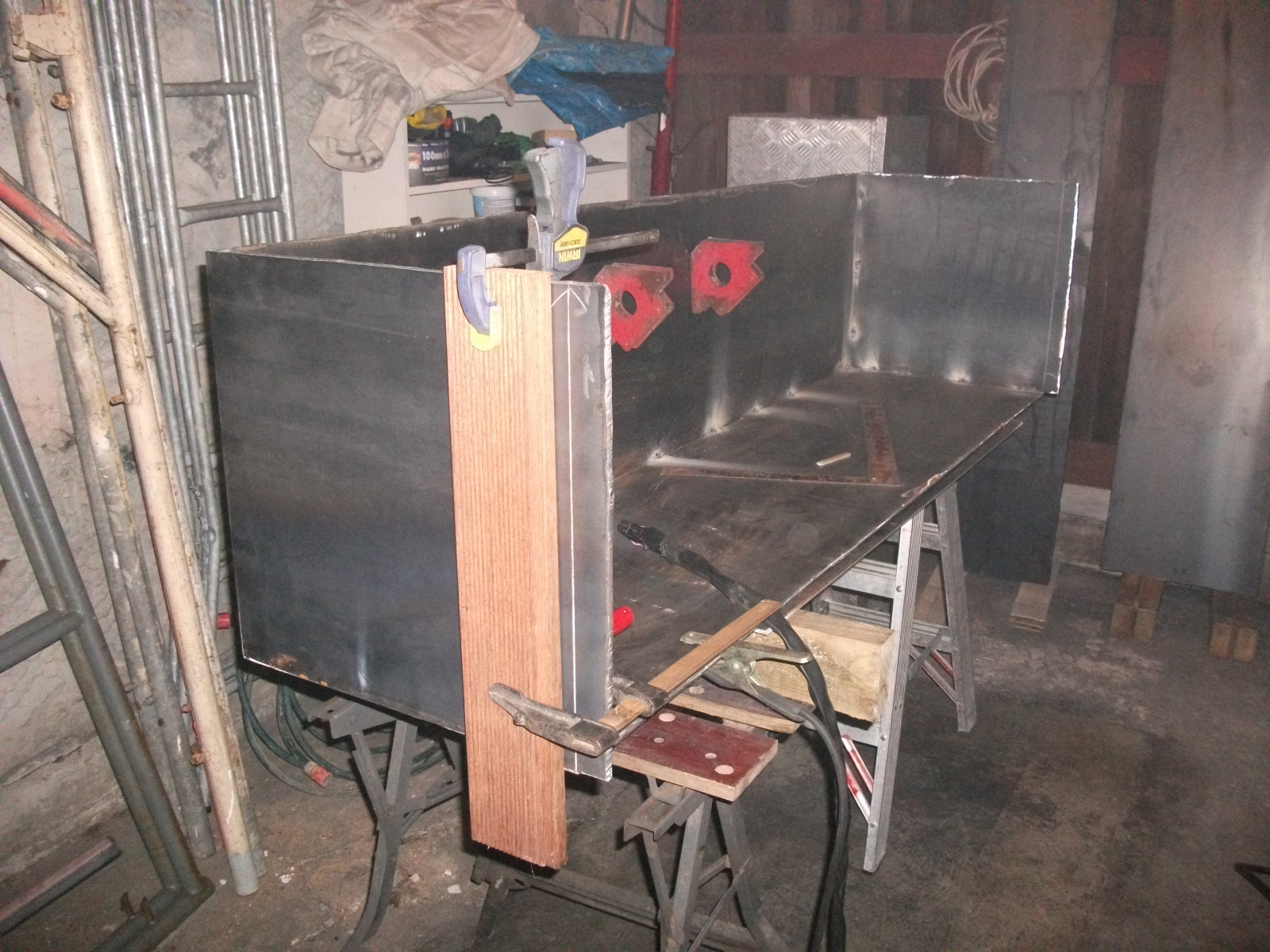

Size:  778.4 KBName:  DSCF0793 Tack Weld, End to Trim.jpg
Views: 1508

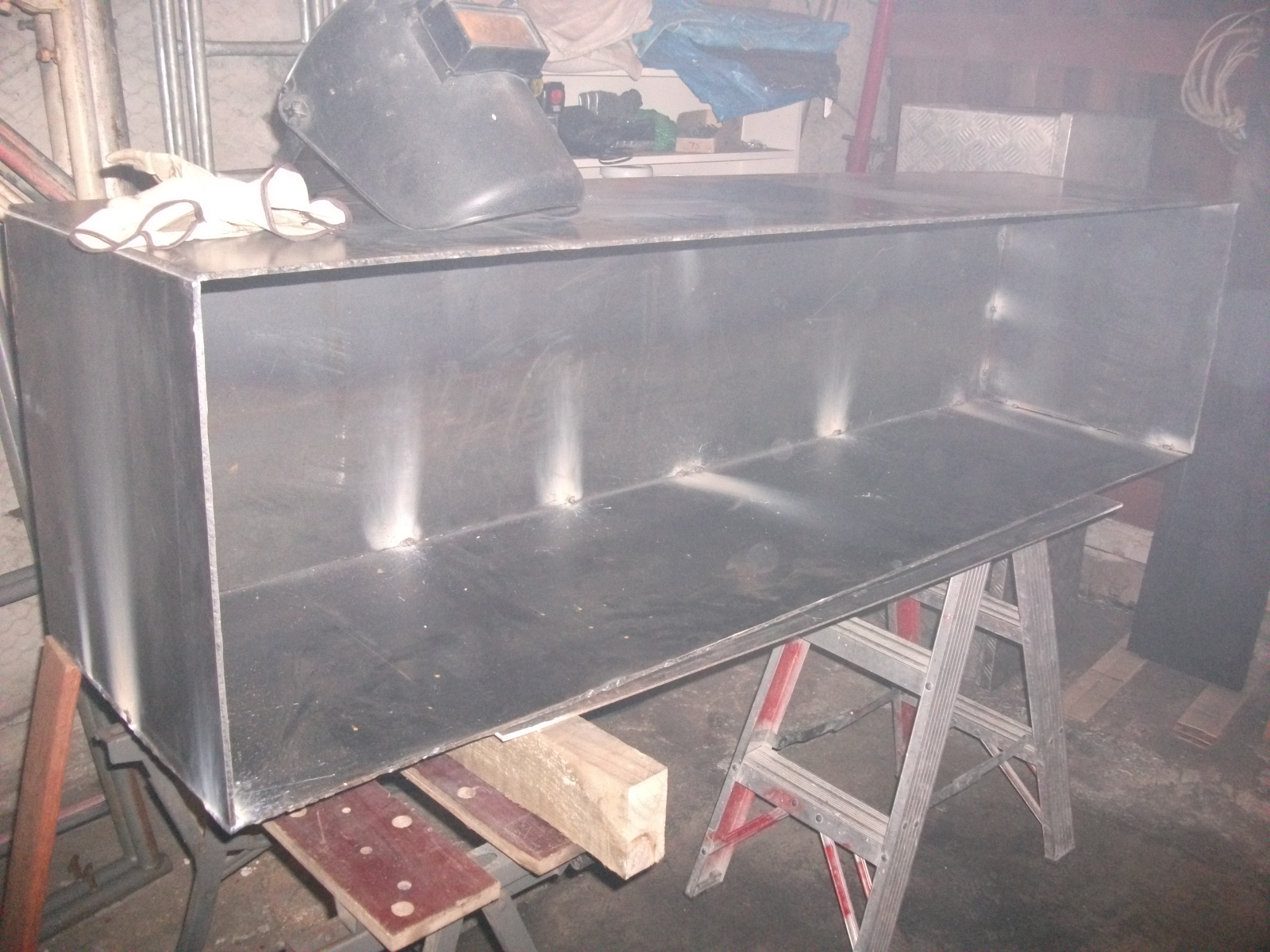

Size:  561.6 KBName:  DSCF0794 Body Tacked.jpg
Views: 1362
Size:  748.4 KB
    Spinedown likes this.

  2. #2
    308
    308 is offline
    Member 308's Avatar
    Join Date
    Dec 2012
    Location
    Wairarapa
    Posts
    3,927

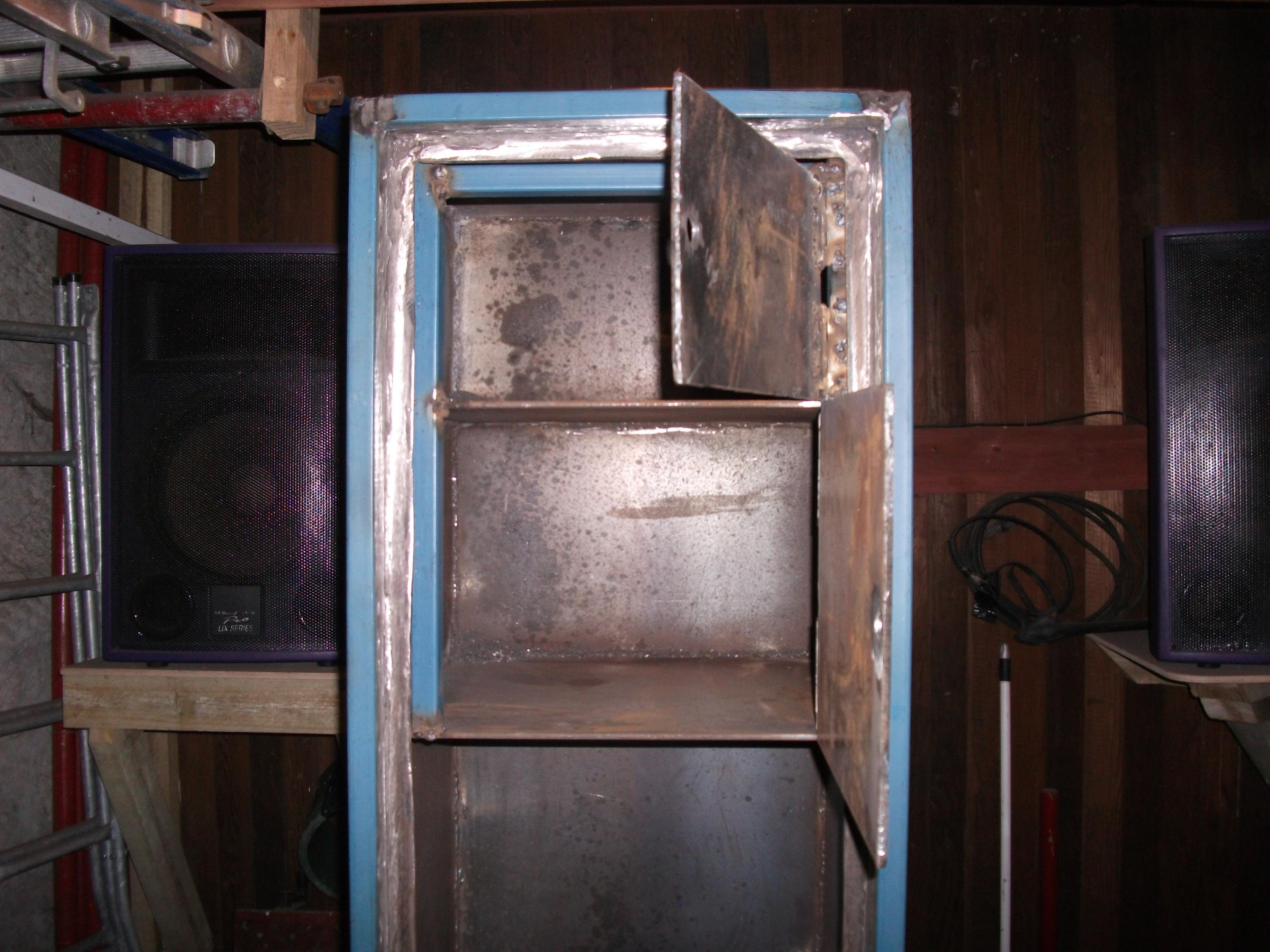

    Name:  Gunsafe Build - Upper Compartments.jpg
Views: 9571
Size:  886.2 KBName:  Gunsafe Build - Door Off .jpg
Views: 2450

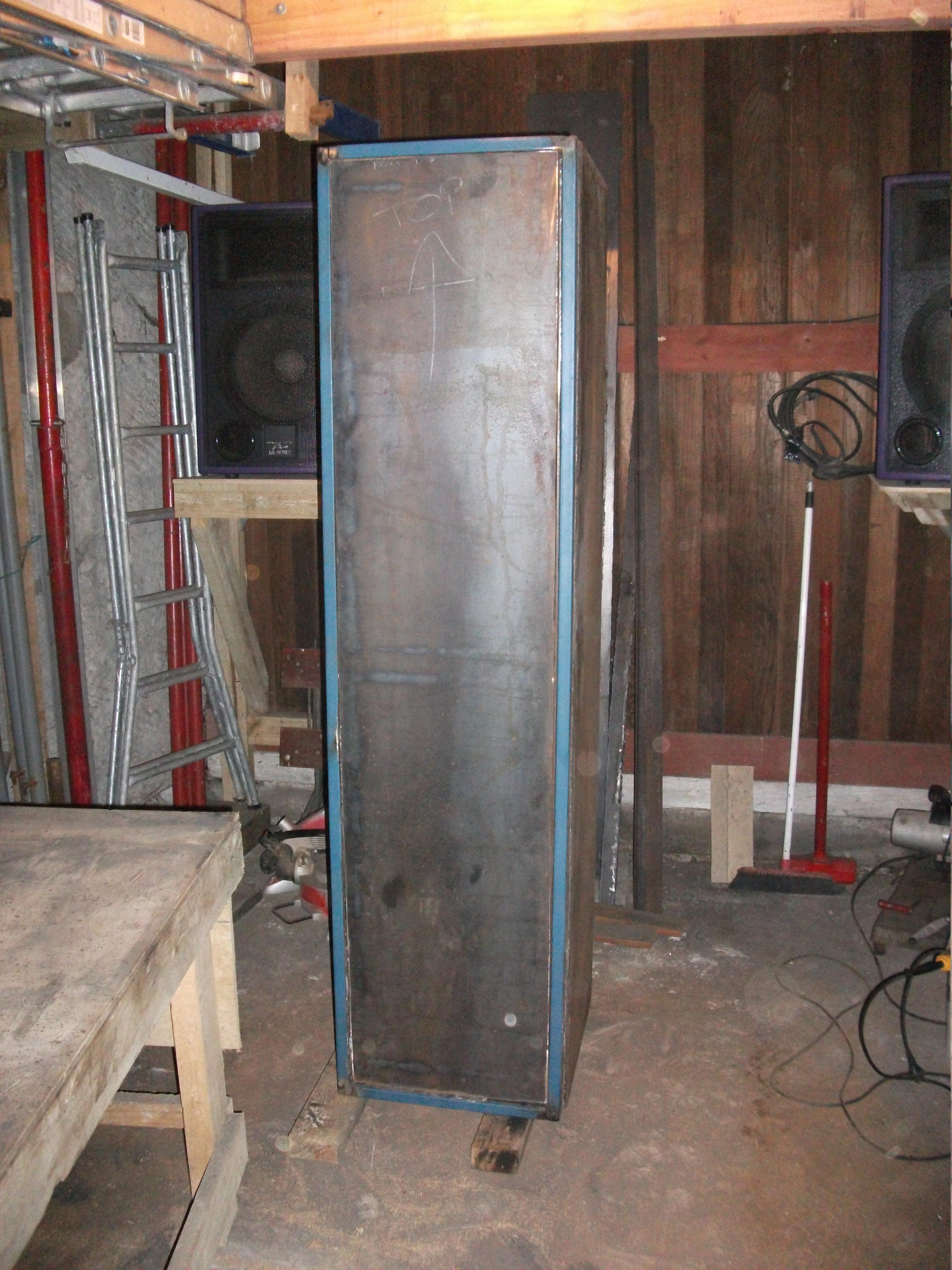

Size:  933.6 KBName:  Gunsafe Build - Door Sitting In.jpg
Views: 5003
Size:  928.9 KB

  3. #3
    Member
    Join Date
    Feb 2012
    Location
    in the middle of the bottom of the south
    Posts
    427
    nice work!
    greg

  4. #4
    Member peril 787b's Avatar
    Join Date
    May 2012
    Location
    Waikato
    Posts
    325
    How are you planning to do the hinges?

  5. #5
    Member Dynastar27's Avatar
    Join Date
    Jan 2014
    Location
    Papakura
    Posts
    1,060
    awesome dude
    OPCz

    If in doubt double tap

  6. #6
    308
    308 is offline
    Member 308's Avatar
    Join Date
    Dec 2012
    Location
    Wairarapa
    Posts
    3,927

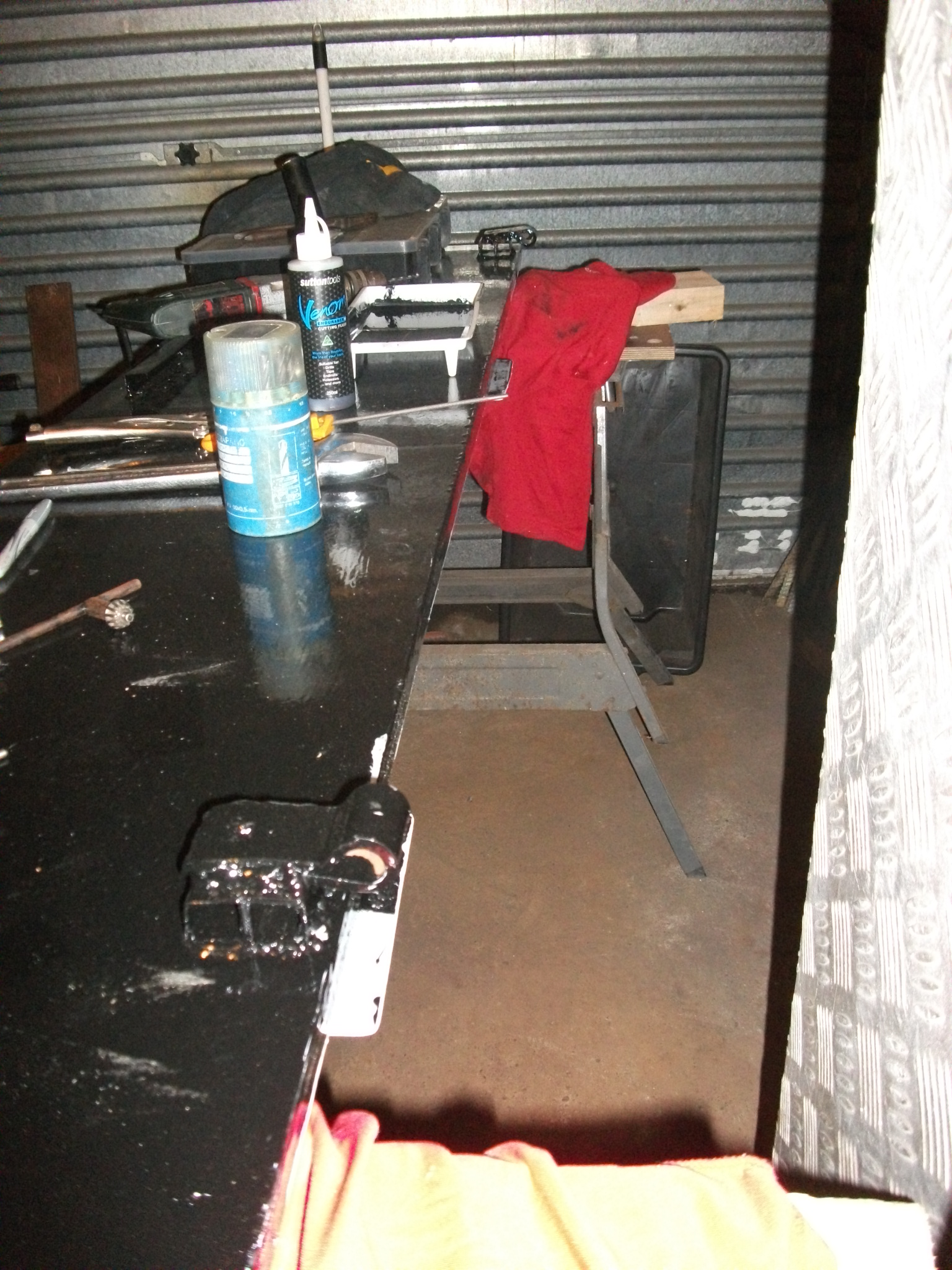

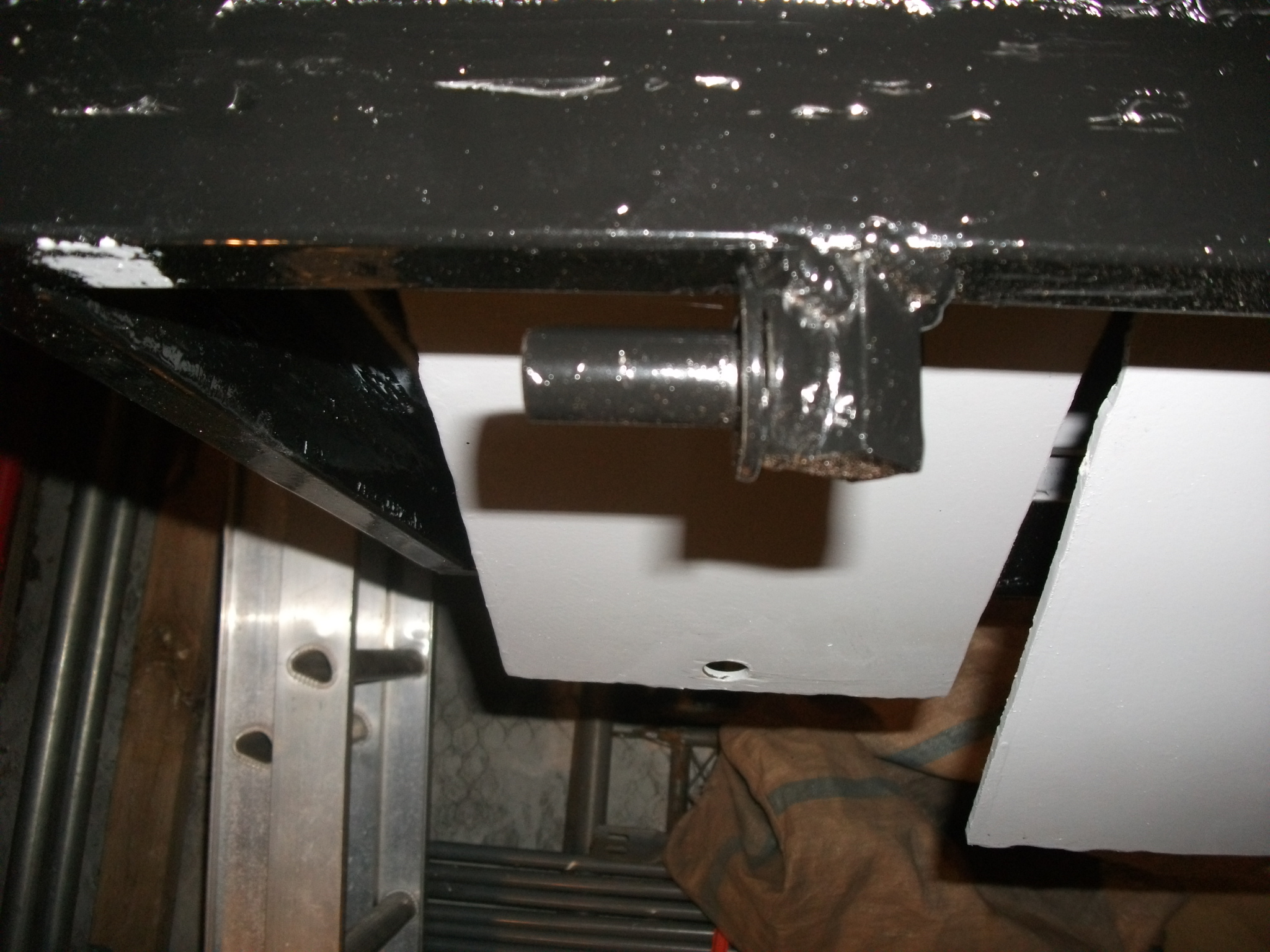

    Hinges are farm gate type - easy to shim with washers for height - it's not obvious in the second pic of the door but there are angled steel sections that hook in behind the frame when closed so if the hinges are cut the door can't be forced on that side

    Name:  DSCF1262 Gunsafe Hinges 1.jpg
Views: 1548
Size:  975.1 KBName:  DSCF1263 Gunsafe Hinges 2.jpg
Views: 1632
Size:  822.6 KB

  7. #7
    Tread carefully in the suck... ishoot10s's Avatar
    Join Date
    May 2012
    Location
    NW of the true capital...
    Posts
    1,903
    And a nice big pair of speakers so you can still listen to Talkback over the crackle of the MIG...
    10MRT shooters do it 60 times, in two directions and at two speeds.

  8. #8
    Member Eion's Avatar
    Join Date
    Nov 2012
    Location
    Dunedin
    Posts
    181
    Nice work mate!!

  9. #9
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    24,960
    Good stuff , I would have folded the main body save a heap of welding. Could also have folded a return around the door opening to make it stronger.
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

    308Win One chambering to rule them all.

  10. #10
    Member
    Join Date
    Dec 2011
    Location
    Hawera
    Posts
    1,098
    NO

  11. #11
    308
    308 is offline
    Member 308's Avatar
    Join Date
    Dec 2012
    Location
    Wairarapa
    Posts
    3,927
    Chris F - whut?

    VC - yes a folder would be great but I don't have one - I have seen some safes made out of steel column section but they seem to only go up to about 400mm each way roughly?
    I didn't think of using a folder service if the steel place had one but I should have - as it is I've gone and recessed the keys so deep I'm going to have to weld a 6inch nail on to make them longer.. rough but fuck it, so long as it works.



    Will finish the lock housing this weekend and fit a heater bar thingy, I'm lining the interior with felt but only after it's in place.

    One point for anyone else considering such a build was the possibility of lining the compartment and door interior with fireline gib or similar to make it survive a half-to-one-hour fire - not my requirement at the moment but it's an option

  12. #12
    Member
    Join Date
    Dec 2011
    Location
    Hawera
    Posts
    1,098
    No I donot want to build my own E cat safe , safe's are too small , I need a walk in vault .


    Later Chris
    johnino likes this.

  13. #13
    5.56 AzumitH's Avatar
    Join Date
    Dec 2011
    Location
    Hamilton
    Posts
    366
    Me and a guy at work are building ourselves one each, CAD designed so one sheet of 6mm per safe (though this does limit you to a 1220mm high safe), and I can get 5 lever locks that meet the required standard through my wifes work for ~$35 each. We have a 100 ton CNC press brake but it'll be more accurate to cut and weld it, the sides are even jigsawed together.

    I like the idea of the fireline gib, I might borrow it. Since mine is gonna be installed lying down under my work bench I will line with felt or similar with added egg-container foam like you get in a gun case. Assuming I can find some of course lol.

  14. #14
    308
    308 is offline
    Member 308's Avatar
    Join Date
    Dec 2012
    Location
    Wairarapa
    Posts
    3,927
    That foam might be available through music retailers for its acoustic properties? Someone in China will make it cheap


    One trick I can think of with the firegib is that, in normal building, it has to be screwed to the wall as glueing it won't work cos fire melts glue, gib drops off, fail.

    The only thing I thought might work would be to glue in the four sides then the end piece as a "spacer" pushing them all back against the outside.

    Good luck with your build

  15. #15
    Member stumpy's Avatar
    Join Date
    Feb 2014
    Location
    Delisle SK Canada
    Posts
    1,081
    nice work , I was just listing all the bits and bobs I was to need to do my own safe when I saw your costings ...... yikes .... I will proberly go the trade me way , some of the e-cat safes (using bisalloy800) are only 4.5 mm and are certed and accepted , ... hope more of them come on TM soon , when I was looking at doin my safe I was going to use gearbox gears from a motorbike to make a mechanism to use 4 bars to lock the door , and then use a 5 lever mortice lock to lock the mechanism ....
    at least with your one you have made it how you need it , ... I was thinking of welding in an ammo box as well if I bought a safe .
    cheers
    308 likes this.
