Thread: A wee project for myself

  1. #31
    Member
    Join Date
    Sep 2014
    Location
    West NSW Australia
    Posts
    139
    Quote Originally Posted by gundoc View Post
    Most of the external parts made, barrel fitted but not yet chambered. Now all the little parts that you can't see need to be made (trigger mechanism, mag catch, suppressor internals, Picatinny rail). I have mocked it up for the photo with my 3x Weaver which I will use (if I can't see it clearly with the 3x then it is too far for the 9mm).
    Attachment 90304
    Thats fucken awesome mate, well done.

    I hope the Aussie authorities dont see this and track me down, I could get done for incitement and encouraging others to make cool shit.
    40mm, csmiffy and rewa like this.

  2. #32
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    2,260
    I have just got all the aluminium parts back from the anodisers. I will blue the steel parts and have it fully assembled next week. I will nip up to the range and zero it at 50 metres (should be about right for most things with the 147 grain bullet) and post the results.

  3. #33
    Member john worthington's Avatar
    Join Date
    Dec 2011
    Location
    clyde
    Posts
    429
    hey gun doc the saw is here if you want to check it out

  4. #34
    Member chainsaw's Avatar
    Join Date
    Jul 2014
    Location
    Norf
    Posts
    5,747
    Very cool @Rock river arms hunter might like this

  5. #35
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    2,260

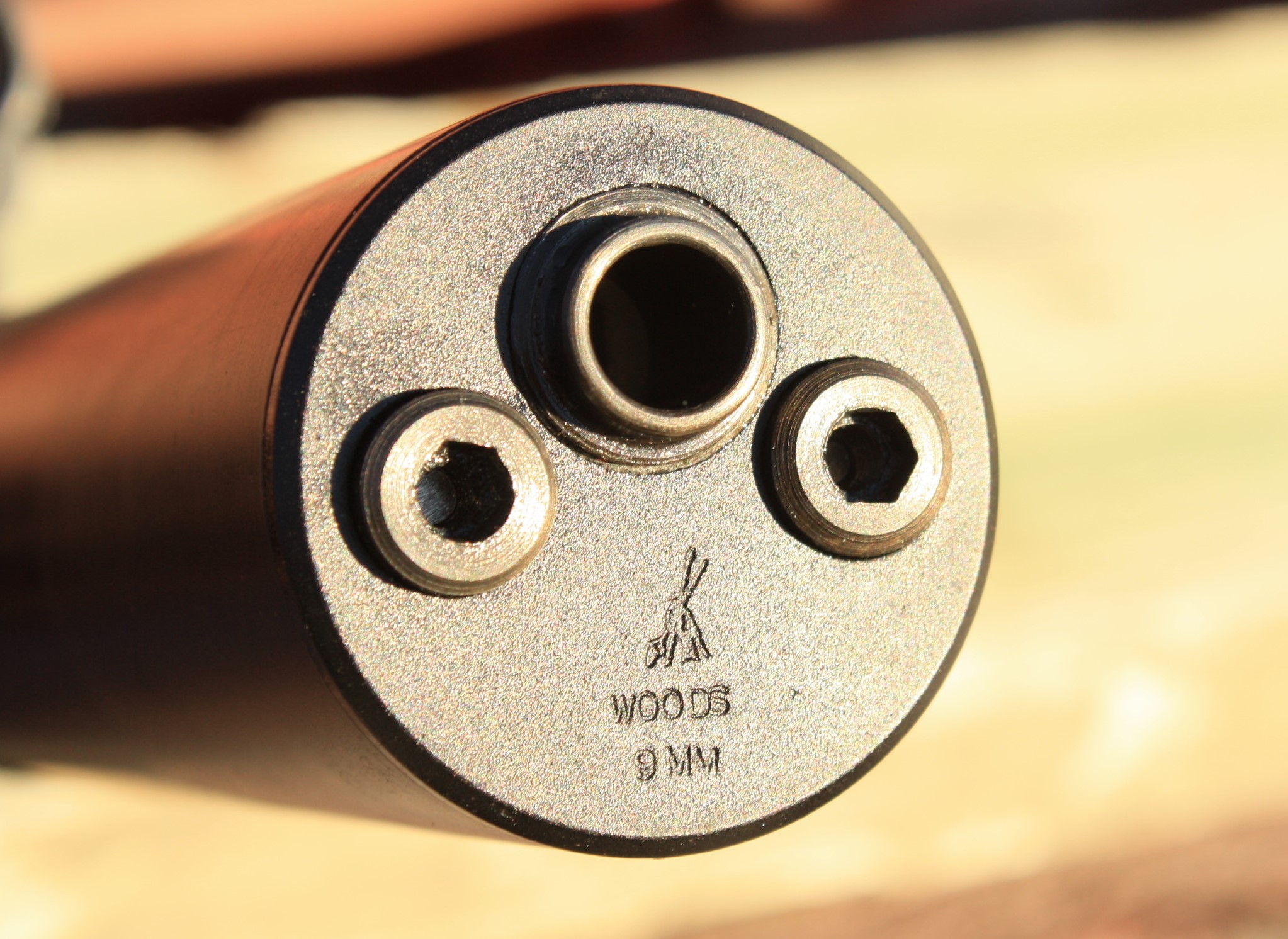

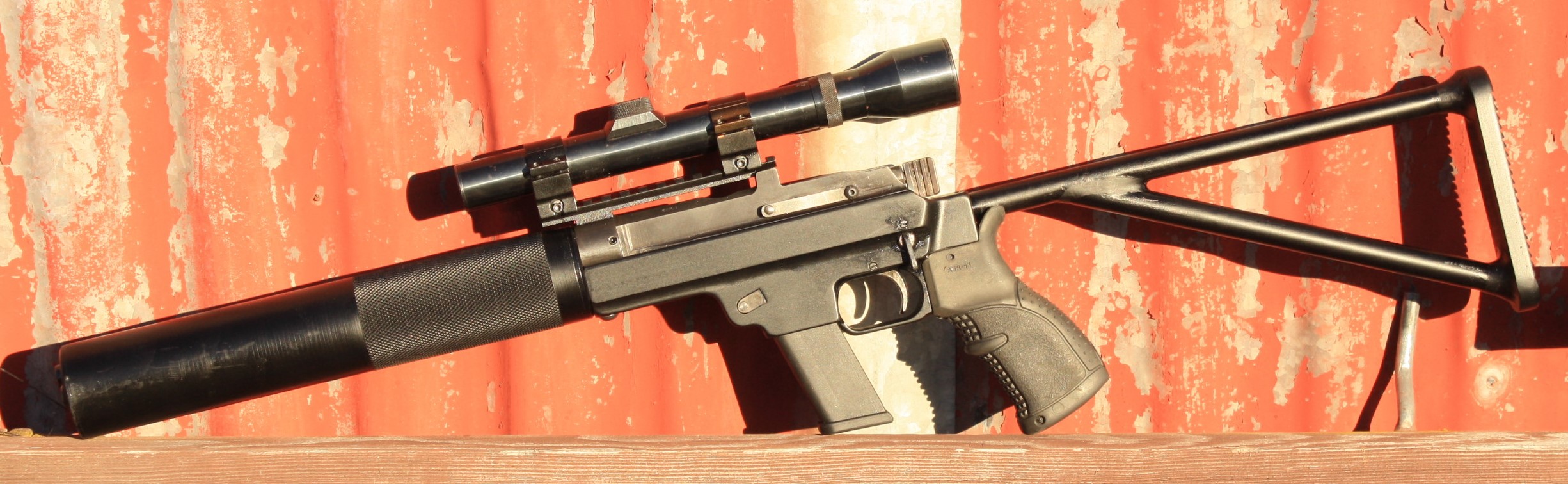

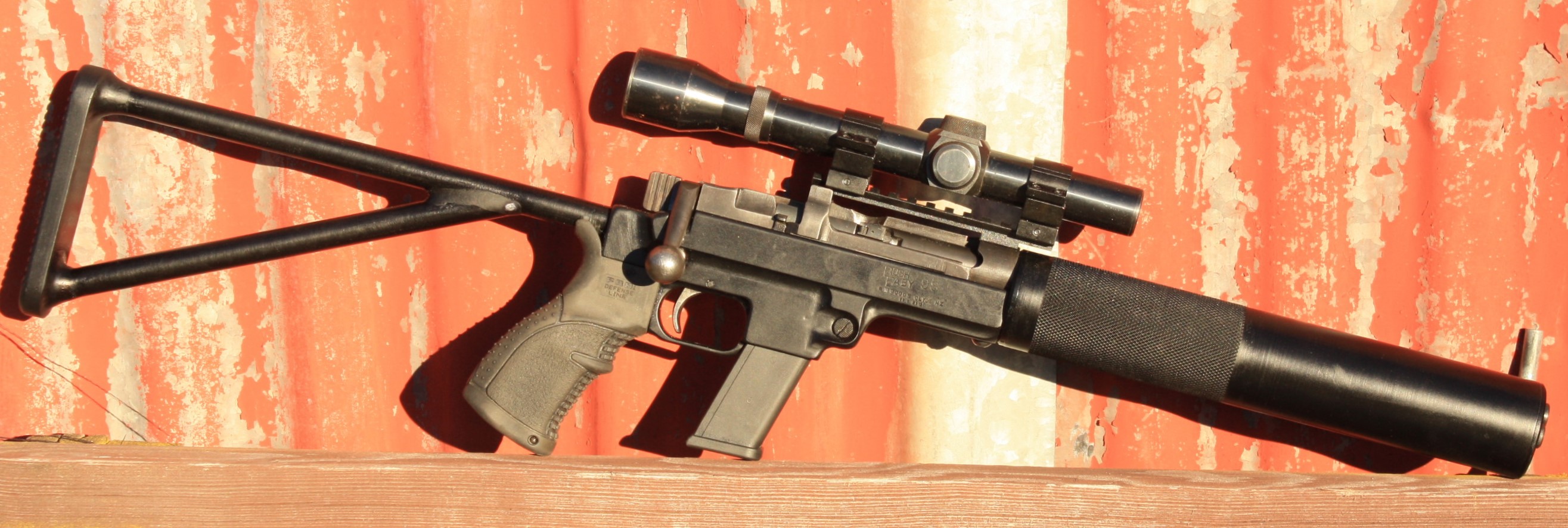

    All finished and up to the range to sight in. The 147 grain loads I had scrounged from somewhere were supersonic so no good for evaluating the suppressor, and only mediocre accuracy. I will pull it down and check everything before I work up some proper loads. Not the best result I was wanting but I think it looks OK.Name:  IMG_3038.JPG
Views: 528
Size:  524.4 KBName:  IMG_3039.JPG
Views: 530
Size:  473.8 KBName:  IMG_3040.JPG
Views: 535
Size:  598.6 KB
    veitnamcam, Brian, john m and 9 others like this.

  6. #36
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    2,260
    Stripped it this afternoon and found the suppressor alignment was spot on, but the suppressor was full of lots of fine copper fragments. I pulled a cartridge and the projectile is made of powdered copper. The ammo was made for police use on an indoor range and fragments on impact. It probably works fine in a polyagonal Glock or MP5 barrel but is bloody awful in a conventionally rifled and ported barrel. Little pieces break off the bullets as they exit the bore, having been structurally weakened by the sharp edges of the rifling and passing over the ports, and the bullets go all over the place. I have a good supply of JHP 147 grain bullets so I will load up some sample loads and head back to the range for accuracy and velocity testing.
    veitnamcam, R93, Beaker and 4 others like this.

  7. #37
    Member
    Join Date
    Jan 2016
    Location
    Omaru
    Posts
    565
    Quote Originally Posted by gundoc View Post
    Stripped it this afternoon and found the suppressor alignment was spot on, but the suppressor was full of lots of fine copper fragments. I pulled a cartridge and the projectile is made of powdered copper. The ammo was made for police use on an indoor range and fragments on impact. It probably works fine in a polyagonal Glock or MP5 barrel but is bloody awful in a conventionally rifled and ported barrel. Little pieces break off the bullets as they exit the bore, having been structurally weakened by the sharp edges of the rifling and passing over the ports, and the bullets go all over the place. I have a good supply of JHP 147 grain bullets so I will load up some sample loads and head back to the range for accuracy and velocity testing.
    Its good when it turns out to be a nice easy fix!

  8. #38
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    2,260
    I loaded a selection of loads and went back to the range this afternoon. As I was mainly checking velocities I was not worried about accuracy but I wound up with 30 shots in a large ragged hole at 25 metres. The top velocity was only 985 fps so I will go a bit higher (about 1050 fps) and do a 50 metre accuracy test. The frangible bullets were the problem.
    Brian, Beaker, Husky1600 and 5 others like this.

  9. #39
    Member
    Join Date
    Dec 2012
    Location
    Dunedin
    Posts
    589
    Sooo rough idea on cost if some one wanted one made ?

  10. #40
    Member Dan88's Avatar
    Join Date
    Aug 2015
    Location
    wellington
    Posts
    570
    Quote Originally Posted by Markgibsonr25 View Post
    Sooo rough idea on cost if some one wanted one made ?
    I queue is beginning to form I believe

    Sent from my SM-A530F using Tapatalk

  11. #41
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    2,260
    Quote Originally Posted by Markgibsonr25 View Post
    Sooo rough idea on cost if some one wanted one made ?
    To be honest I am not overly interested in making any for others at this stage (I am too busy enjoying my retirement) but I have started doing some drawings on my own design action just in case I relent and decide to produce some. I will put up a post on this site if that happens!
    veitnamcam, Brian, Bill999 and 4 others like this.

  12. #42
    MSL
    MSL is offline
    Member MSL's Avatar
    Join Date
    May 2014
    Location
    Waikato
    Posts
    6,471
    And you guys are way behind, I asked long ago

  13. #43
    Member
    Join Date
    Mar 2018
    Location
    Fielding-ish
    Posts
    572
    You might get job-offers from "mossad" ( cool is part of their criteria)

  14. #44
    Member
    Join Date
    Feb 2017
    Location
    Jafa land
    Posts
    5,439
    Quote Originally Posted by rewa View Post
    You might get job-offers from "mossad" ( cool is part of their criteria)
    A lot of other words come to mind as part of their criteria too......

    Sent from my TA-1024 using Tapatalk

  15. #45
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    2,260
    The attached photo is a 50 metre 10 round group, 20mm vertical by 28mm horizontal, 147 grain JHP at 1020 fps. That will do me for short range goats etc. The suppressor is working well with that load, easy on the ears from an enclosed shooting bay without muffs.Name:  IMG_3041.JPG
Views: 318
Size:  204.8 KB
    muzr257, Brian, stretch and 3 others like this.
