    C2191 6mm steel safe

    Needing a new safe and going to future proof and do an ecat, came across the plans by police engineering (plan c2191) wondering if anyone has tackled one of these before, any handy tips?
    Cheers

  2. #2
    308
    308 is offline
    Member 308's Avatar
    Join Date
    Dec 2012
    Location
    Wairarapa
    Posts
    3,946
    Can you put up pics? If so I based my build off the old police style safe

    I built my own as one unit with 2 lockable internal compartments to take pistols and ammo (since gone to bigger ammo storage) but for what it's worth I used farm gate style hinges to hang the door externally so that it could be taken off separately for transport
    When closed it has angled pieces that keep it inside the frame so cutting the hinges off is no use to a crim

  3. #3
    Member
    Join Date
    Dec 2013
    Posts
    603
    Quote Originally Posted by 308 View Post
    Can you put up pics? If so I based my build off the old police style safe

    I built my own as one unit with 2 lockable internal compartments to take pistols and ammo (since gone to bigger ammo storage) but for what it's worth I used farm gate style hinges to hang the door externally so that it could be taken off separately for transport
    When closed it has angled pieces that keep it inside the frame so cutting the hinges off is no use to a crim
    https://www.police.govt.nz/sites/def...el-cabinet.pdf

  4. #4
    Member
    Join Date
    Jul 2018
    Location
    Timaru
    Posts
    157
    That's the one! Sheet should arrive tomorrow, going to fold the main part save some welding...
    Will take pics and start thread in projects =>

  5. #5
    308
    308 is offline
    Member 308's Avatar
    Join Date
    Dec 2012
    Location
    Wairarapa
    Posts
    3,946
    Make it bigger and longer than you think you need - mine took 2 sheets

    Folding the back corners is cool, I'd recommend some small rectangular section around the door to ensure that it is recessed

  6. #6
    Member
    Join Date
    Jul 2018
    Location
    Timaru
    Posts
    157
    1 sheet will have to do that's what's here, it'll end up being part of a larger lockable cabinet.

  7. #7
    Member
    Join Date
    Jul 2018
    Location
    Timaru
    Posts
    157
    Most of my stuff is pretty short so should be alright. All marked out and I'll slice it up and press it Monday
    Might follow your advice with the door frame or make it out of something abit heavier
    ..

  8. #8
    Member
    Join Date
    Jul 2018
    Location
    Timaru
    Posts
    157

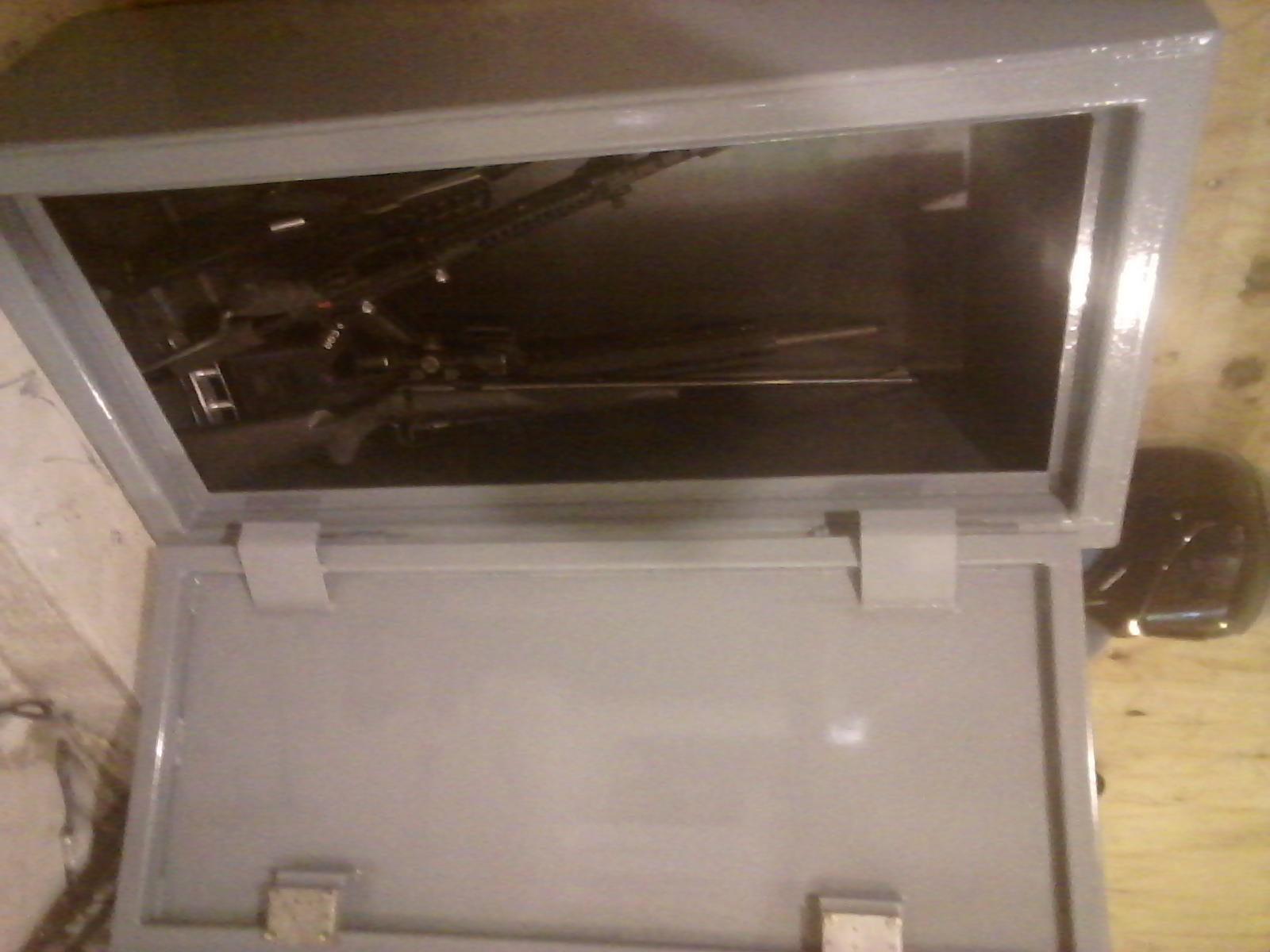

    Okay so finally got around to building this! Not exactly as the plans, but similar construction, not quite as deep and stronger door and frame.

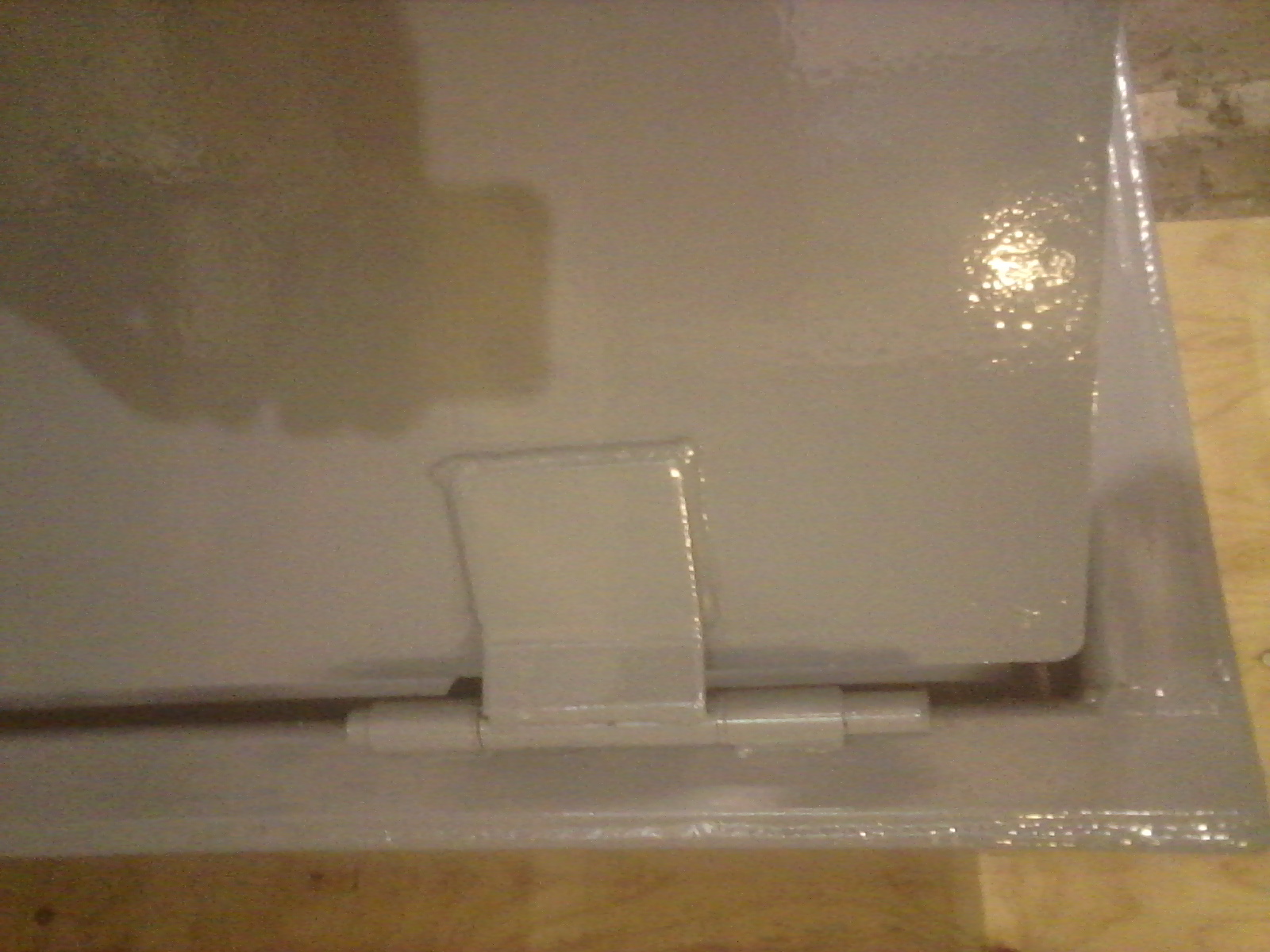

    2 separately keyed 7 lever locks external hinges with 16am pins, dogging bars inside. Should hold 8-10..fingers crossed.
    Holy shit there's ALOT of weld in the thing..should pass ecat inspecRion no worries, total cost was about $390
    Name:  20190113_175157.jpg
Views: 182
Size:  455.2 KBName:  20190113_175217.jpg
Views: 197
Size:  419.5 KBName:  20190113_175257.jpg
Views: 184
Size:  454.6 KBName:  20190113_175301.jpg
Views: 187
Size:  472.7 KB

  9. #9
    308
    308 is offline
    Member 308's Avatar
    Join Date
    Dec 2012
    Location
    Wairarapa
    Posts
    3,946
    That's a nice wide easy access - good job

  10. #10
    Member Tommy's Avatar
    Join Date
    Nov 2014
    Location
    W-BOP
    Posts
    6,536
    Glue a bit of foam inside the bottom of the door. I dinged the heel of a rifle the other day and that's going to be fixed next time that door gets opened.
    rewa likes this.
    Identify your target beyond all doubt

  11. #11
    Member
    Join Date
    Jul 2018
    Location
    Timaru
    Posts
    157
    I still have to make internal racks insulate and carpet the thing haha
