Thread: British shotgun proofs

  1. 25-01-2025, 10:51 PM #1
    akaroa1
    akaroa1 is offline
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,597

    British shotgun proofs

    So tell me what I have here

    It has
    BP under Crown
    BV under Crown
    NP under Crown
    1 1/4 which I assume is OZs
    Choke

    And a 10 in a diamond with LO under it

    I'm picking the LO under 10 is the year code ?

    The rest is pretty obvious to me .
    10 gauge BP that has been reproofed for nitro and ( a light ) 1 1/4 oz of shot

    Am I on the right track ?

    Name: 20250125_110313.jpg Views: 172 Size: 3.94 MB
    The Church of
    John Browning
    of the Later-Day Shooter
    Reply With Quote Reply With Quote
  2. Register to remove these Ads!
  3. 25-01-2025, 10:56 PM #2
    akaroa1
    akaroa1 is offline
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,597
    It's a Jones Underlever 10 Gauge Hunter and Son's ( Webley made ) single barrel shotgun.

    It has a massive frame, most likely a 10 gauge on an 8 gauge frame because it is 2" across the breech face

    Name: 20250125_110617.jpg Views: 164 Size: 4.37 MB
    The Church of
    John Browning
    of the Later-Day Shooter
    Reply With Quote Reply With Quote
  4. 25-01-2025, 11:44 PM #3
    norsk
    norsk is offline
    Member norsk's Avatar
    Join Date
    Jun 2016
    Location
    Norway
    Posts
    2,570

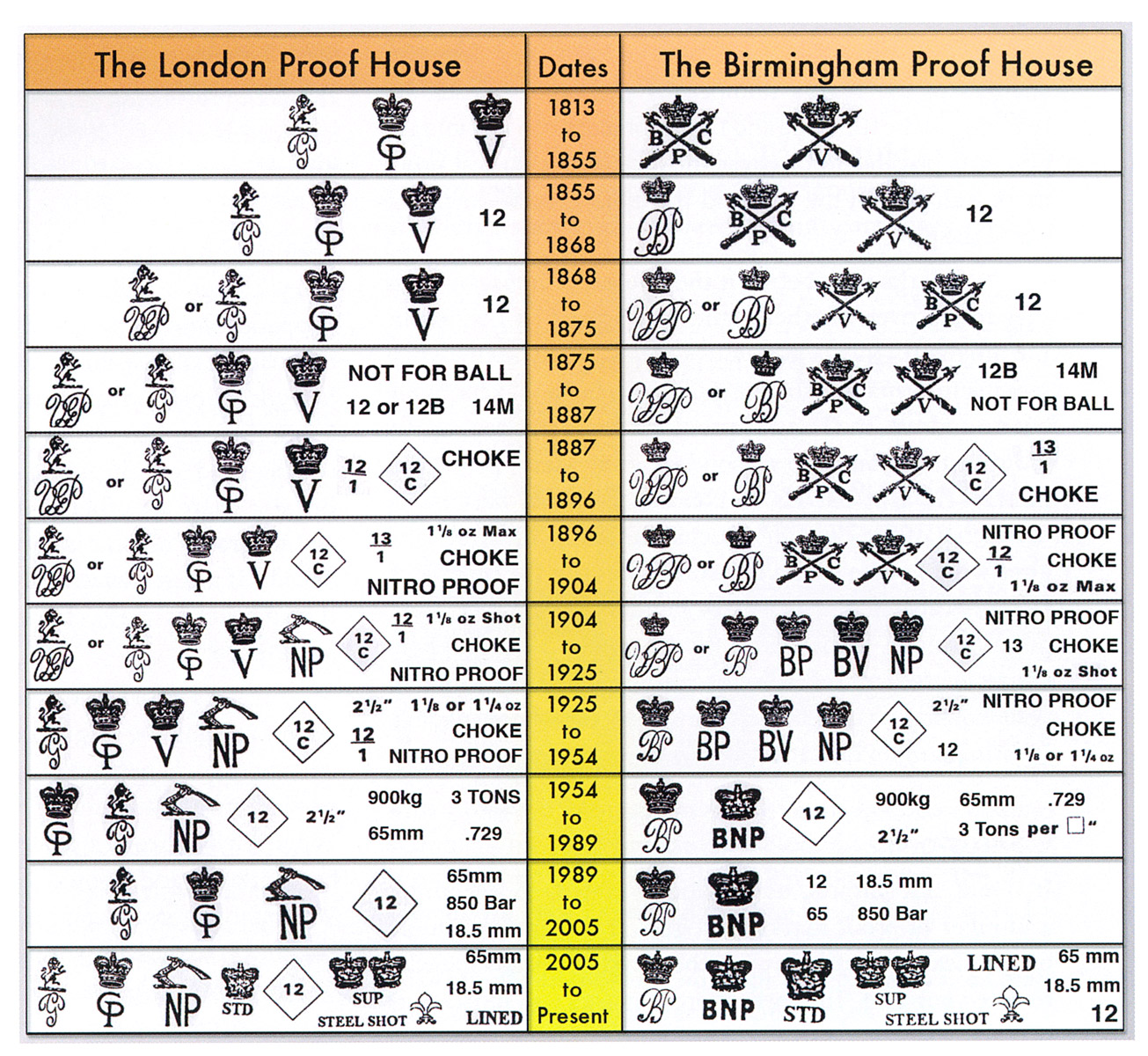

    You have probably found this chart already but anyway...

    That's a nice gun.
    Attached Images Attached Images
    "Sixty percent of the time,it works every time"
    Reply With Quote Reply With Quote
  5. 26-01-2025, 12:04 AM #4
    akaroa1
    akaroa1 is offline
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,597
    Quote Originally Posted by norsk View Post
    You have probably found this chart already but anyway...

    That's a nice gun.
    @norsk Yes I have that one

    It's the LO ? Under 10 in the diamond that has me scratching my head

    I can't find any reference for the letters in the fauge diamonds
    The Church of
    John Browning
    of the Later-Day Shooter
    Reply With Quote Reply With Quote
  6. 26-01-2025, 02:31 AM #5
    norsk
    norsk is offline
    Member norsk's Avatar
    Join Date
    Jun 2016
    Location
    Norway
    Posts
    2,570
    Quote Originally Posted by akaroa1 View Post
    @norsk Yes I have that one

    It's the LO ? Under 10 in the diamond that has me scratching my head

    I can't find any reference for the letters in the fauge diamonds
    I know a guy.
    Will call him tonight.
    Micky Duck likes this.
    "Sixty percent of the time,it works every time"
    Reply With Quote Reply With Quote
  7. 26-01-2025, 06:52 AM #6
    Marty Henry
    Marty Henry is offline
    Member Marty Henry's Avatar
    Join Date
    Oct 2014
    Location
    Tararua
    Posts
    7,238
    LO could be long. There were a number of lengths of chamber from 3 1/2 down to 2 1/2 inches.
    Reply With Quote Reply With Quote
  8. 26-01-2025, 07:32 AM #7
    akaroa1
    akaroa1 is offline
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    6,597
    Quote Originally Posted by Marty Henry View Post
    LO could be long. There were a number of lengths of chamber from 3 1/2 down to 2 1/2 inches.
    The parallel of the chamber is 3 1/8th long before the forcing cone
    So I think it is intended for 2 7/8" cases with the roll crimp
    The Church of
    John Browning
    of the Later-Day Shooter
    Reply With Quote Reply With Quote
  9. 26-01-2025, 09:22 PM #8
    norsk
    norsk is offline
    Member norsk's Avatar
    Join Date
    Jun 2016
    Location
    Norway
    Posts
    2,570
    10 is the bore
    LO the chamber length
    akaroa1 likes this.
    "Sixty percent of the time,it works every time"
    Reply With Quote Reply With Quote
  10. 27-01-2025, 06:54 AM #9
    caberslash
    caberslash is offline
    Member
    Join Date
    Feb 2020
    Location
    Scotland
    Posts
    1,276
    Quote Originally Posted by akaroa1 View Post
    So tell me what I have here

    It has
    BP under Crown
    BV under Crown
    NP under Crown
    1 1/4 which I assume is OZs
    Choke

    And a 10 in a diamond with LO under it

    I'm picking the LO under 10 is the year code ?

    The rest is pretty obvious to me .
    10 gauge BP that has been reproofed for nitro and ( a light ) 1 1/4 oz of shot

    Am I on the right track ?

    Attachment 267583
    Email or phone the Birmingham proof house, they do sod all for modern gun/riflemaking anyway (glorified rubber stamp) and are paid for by our (UK) taxes and have plenty of time for a yarn.

    https://www.gunproof.com/contact
    Maca49, akaroa1 and Fssprecision like this.
    Reply With Quote Reply With Quote
  11. 28-01-2025, 03:19 PM #10
    Coop
    Coop is offline
    Member
    Join Date
    Nov 2021
    Location
    Christchurch
    Posts
    222
    The 10 is definitely "10 bore"
    Usually the other one will be chamber length but I'm not sure what LO stands for. Like others said "Long"?
    10ga is usually 3.5" long shell right? Sometimes 3"?
    Reply With Quote Reply With Quote
