Thread: Fabarm h368 XLR semi recoil spring failure

  1. #1
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,210

    Lightbulb Fabarm h368 XLR semi recoil spring failure

    Hi team,
    Since opening day of last season I have been battling with an issue with my Fabarm h368 XLR.
    I noticed towards the latter half of opening day last season that the other guys in the blinds where getting off 5 shots for every 2-3 of mine....I'm a bit careful so at first I didn't think much of it, till I tried to dump a mag into a group of geese that dropped into our mallard spread an I really noticed my beloved fabarm was cycling significantly slower than even the stoeger in the blind next to me....
    Towards the end of th day it got worse and worse and I experienced a couple of fail to rechamber the next round
    Back at home during debrief with the lads I showed them all what I was experiencing and I pulled the bolt back then released it only to have it slide slowly back into battery like the action was gummed up with honey
    Under supervision I stripped my shotty right down removing the trigger mechanism and all expecting to see an action fouled up with so much carbon it would cause the afore mentioned issue. I was adamant that I was aware that gas guns need more regular cleaning and that I had cleaned and lubed it prior to the days shooting.....my fellow water foulers where sceptical in fact I'm sure the phrase "filthy gas gun shooter probably hasn't cleaned his gun properly" uttered more than once.
    Well proof was in the pudding when I had completely stripped the shotty inside it was spotless......a lot of head scratching then accusations of over lubing.
    We cleaned the whole lot wit brake clean then lubed it up with some fancy pance berretta lube that is reccomended for their a400 extrema.
    The action seemed better but not like any of the inertia guns that were present.... anyway I persevered with it cleaning and re lubing it every single outing no matter if it had fired 10 rounds or 100. It still wasn't right.... I reached out to a few folks I knew who also owned Fabarms but everyone I spoke to had never had an issue, I was really starting to fall out of love with my beautiful Fabarm, I even contemplated trading it in on a Stoeger
    Finally I surrendered and spoke to Zach at North Canterbury gunsmithing and he told me to bring it in he was sure he could sort it.
    Well duck Season was a little over a month away I was sceptical but have used Zach a few times and built a good rapport with him.
    A week later I got a message from Zach "your recoil spring has failed its supposed to be 11" or 12" inches when not under tension and yours is about 8 inches"
    Great news we have the culprit....next problem finding a replacement with 1 month till opening weekend....
    With all the shit going on with Covid and Ukrain etc etc I was not hopeful.
    Zach contacted a local engineering firm to see what it would cost to have a replacement spring made to spec..... $150 and would only make minimum of 2 to be worth while setting up....
    Whilst that was going on Zach contacted NZ Fabarm rep and found a replacement spring in Auckland
    Took nearly 3 weeks to arrive but I finally have my Fabarm back and she slams shut with all the authority of a rat trap now
    Apparently it's a known issue with some Fabarms but I'd never heard of it nor could I find much about it online.
    So if ya Fabarm starts to slow down get ya recoil spring replaced it's cheap as and will return your shotty back to its former glory.
    All set for opening weekend lads not long to go now

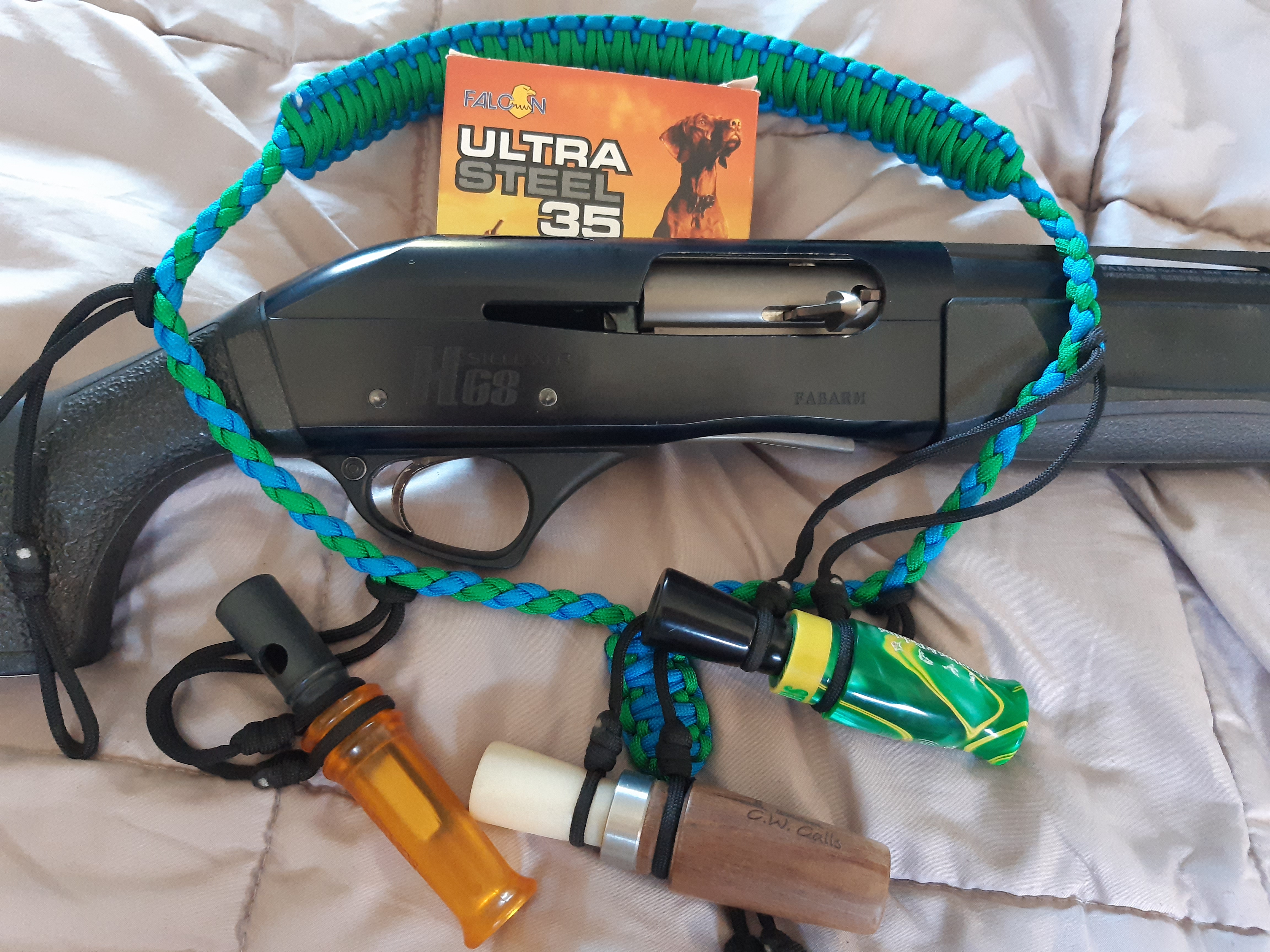

    Name:  20220429_145748.jpg
Views: 221
Size:  4.49 MB

    I'll upload a quick vid showing before and after in a minute it's currently uploading to youtube....
    #DANNYCENT

  2. #2
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,210
    Here's a quick vid showing before and after.....Hopefully this thread might save someone else the stress I've been through trying to get this sorted

    https://youtu.be/Es2_gan3QoM
    #DANNYCENT

  3. #3
    Banned
    Join Date
    Jun 2015
    Location
    christchurch
    Posts
    17,992
    i love my fabarm, the stoger kicks like a mule in comparison
    dannyb likes this.

  4. #4
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,210
    Quote Originally Posted by gonetropo View Post
    i love my fabarm, the stoger kicks like a mule in comparison
    I have always loved mine....but it was starting to piss me off
    Micky Duck likes this.
    #DANNYCENT

  5. #5
    Member
    Join Date
    Apr 2012
    Location
    Kingcountry
    Posts
    4,905
    Had 2 new, both had feeding problems. Understand that the NZ agent is "pulling the pin."

  6. #6
    Unapologetic gun slut dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    9,210
    Quote Originally Posted by tetawa View Post
    Had 2 new, both had feeding problems. Understand that the NZ agent is "pulling the pin."
    What where you running 3" or 2 3/4" ? Curious as I only run 2 3/4" and aside from the recoil spring issue mine has fed flawlessly
    #DANNYCENT
