Thread: Removing front sight from margolin .22

  1. #1
    Member
    Join Date
    Feb 2023
    Location
    Chch
    Posts
    158

    Removing front sight from margolin .22

    Hi, any body know how to remove above?
    Is it threaded on, pushed on maybe?,
    Cheers

  2. #2
    Banned
    Join Date
    Sep 2023
    Location
    wanganui
    Posts
    359
    post a pic.

  3. #3
    Banned
    Join Date
    Sep 2023
    Location
    wanganui
    Posts
    359

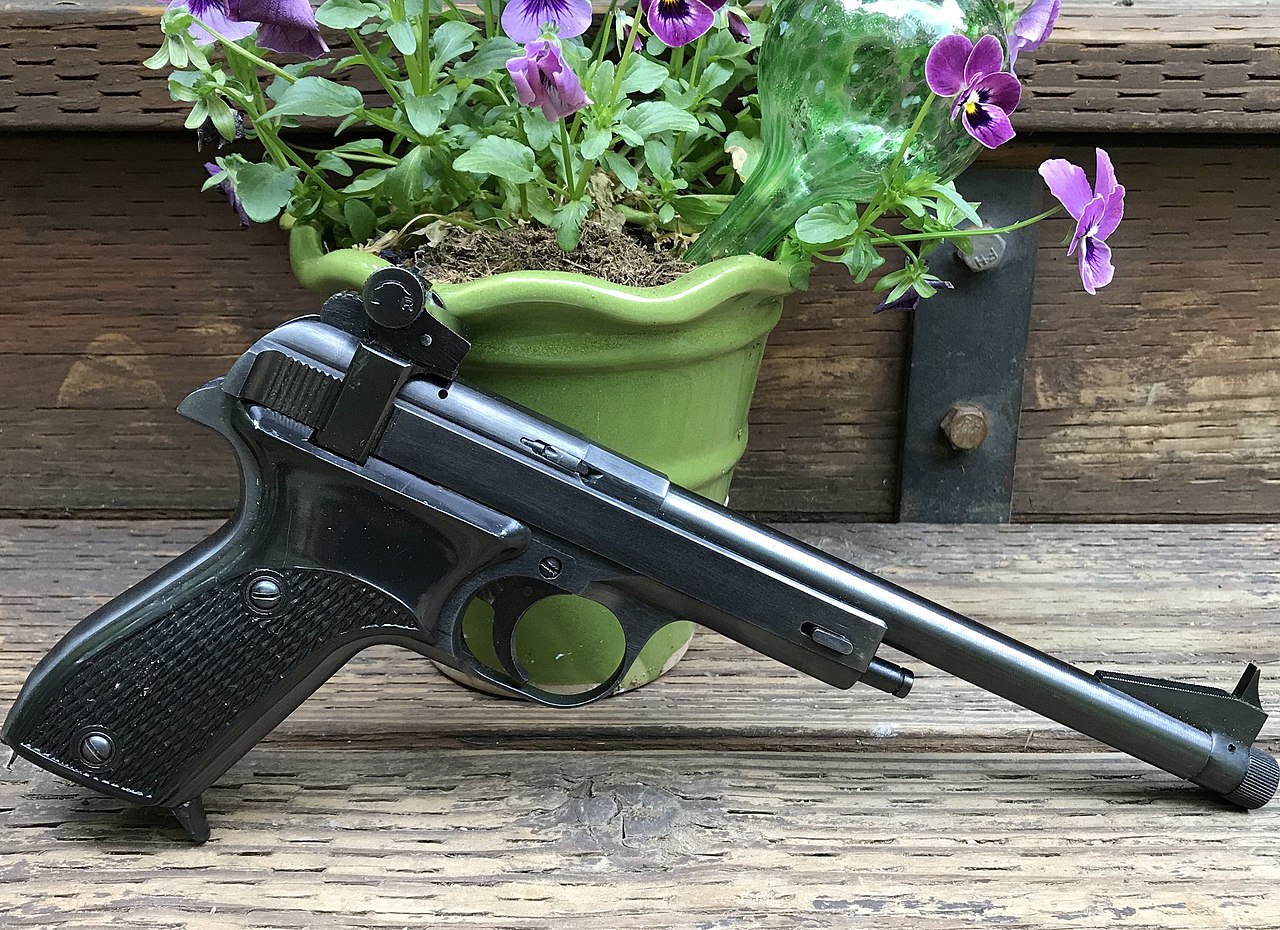

    If its like this one then its pinned on

    Name:  Vostok_Margolin,_Chinese_PS01.jpg
Views: 125
Size:  420.9 KB

  4. #4
    Member
    Join Date
    Feb 2023
    Location
    Chch
    Posts
    158
    Don't think mines pinned, I'll go out have a look shortly

  5. #5
    Member
    Join Date
    Feb 2023
    Location
    Chch
    Posts
    158

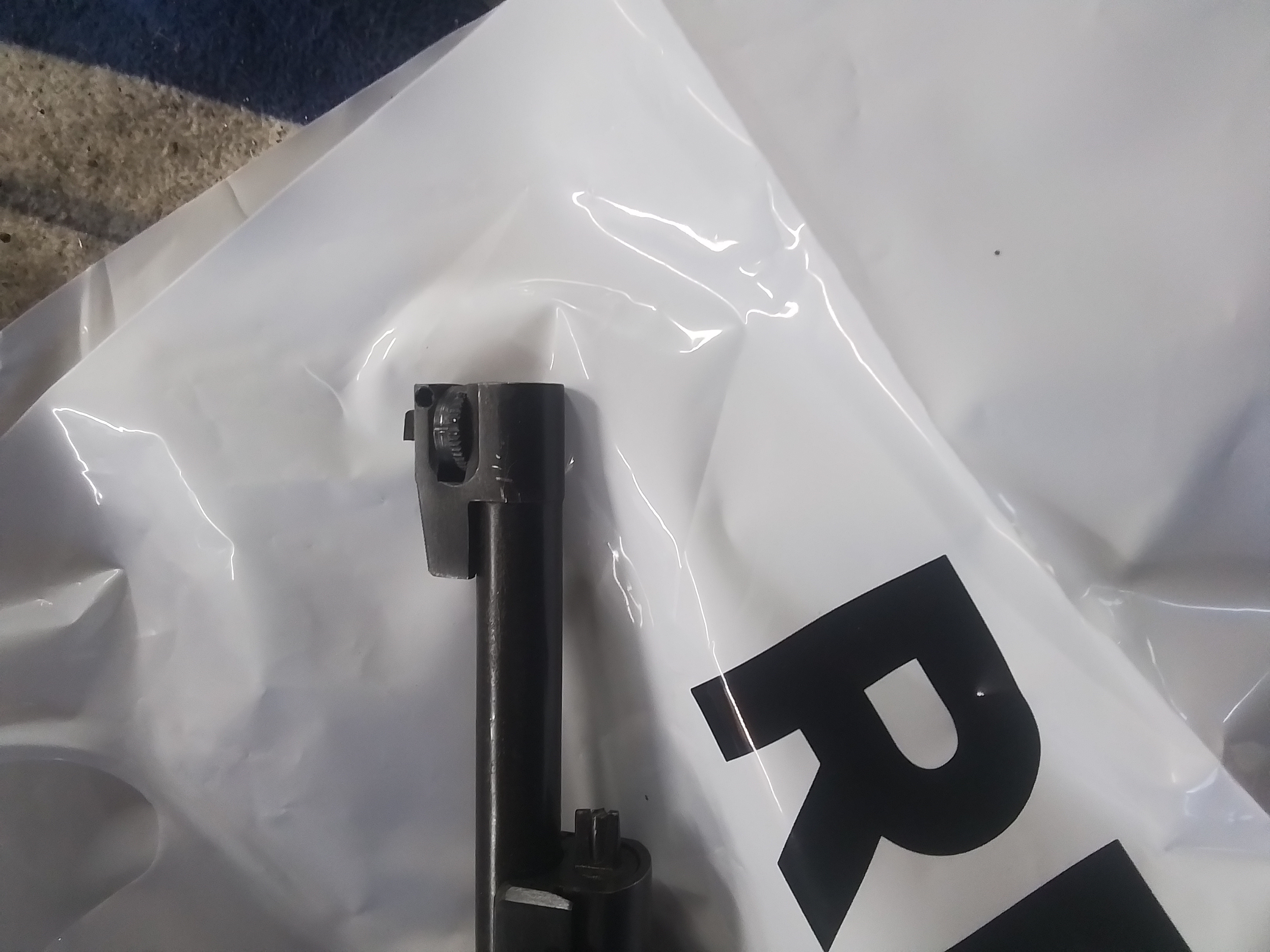

    Name:  20240113_190356.jpg
Views: 110
Size:  1.73 MB

  6. #6
    Member
    Join Date
    Feb 2023
    Location
    Chch
    Posts
    158
    Name:  20240113_190356.jpg
Views: 110
Size:  1.73 MB

  7. #7
    Member norsk's Avatar
    Join Date
    Jun 2016
    Location
    Norway
    Posts
    2,541
    Your one is pressed on like mine was.
    "Sixty percent of the time,it works every time"

  8. #8
    308
    308 is offline
    Member 308's Avatar
    Join Date
    Dec 2012
    Location
    Wairarapa
    Posts
    3,928
    Got a screw on the other side? Mine do but I've not tried taking the sights off before

  9. #9
    Member
    Join Date
    Feb 2023
    Location
    Chch
    Posts
    158
    Quote Originally Posted by norsk View Post
    Your one is pressed on like mine was.
    Thanks for that I'll make up a puller of some sort,

  10. #10
    Member
    Join Date
    Feb 2023
    Location
    Chch
    Posts
    158
    Quote Originally Posted by 308 View Post
    Got a screw on the other side? Mine do but I've not tried taking the sights off before
    Nope, no screw, that would be too easy,
    I'll be installing an over barrel sleeve of approx 25mm dia, including a flat to install a red dot
    308 likes this.

  11. #11
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    2,260
    The Margolin front sights were a shrink fit. To remove then you need to disassemble the elevating system, hold the barrel in padded jaws, quickly heat the sight ring with a torch then tap off with a brass punch. The object is to heat the ring quickly to expand before the barrel heats up and expand as well. I used to have a pair of aluminium barrel blocks to hold in a vise which conducted barrel heat away. Speed is the key!
    308 likes this.

  12. #12
    Member
    Join Date
    Feb 2023
    Location
    Chch
    Posts
    158
    Cheers for that, the gun had one of your over barrel weights on it
